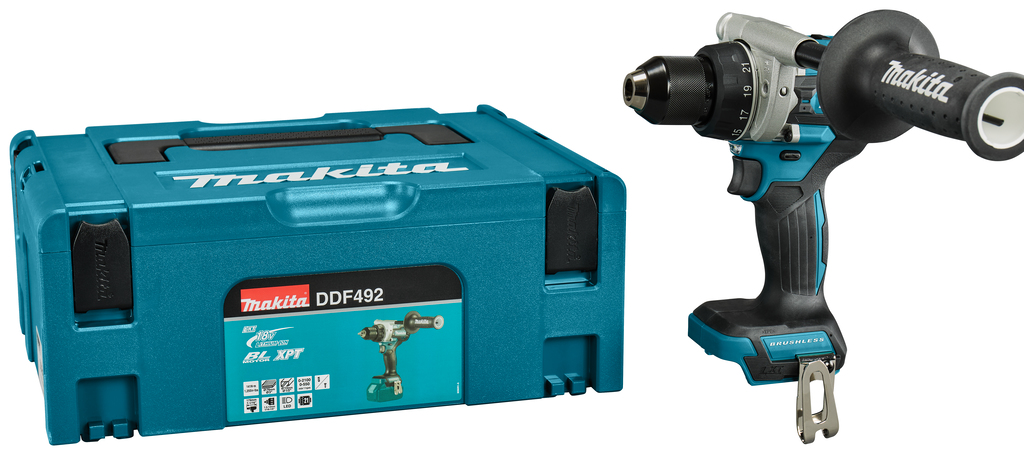

MakitaDDF492ZJLXT 18V Drill/screwdriver excl. batteries and charger in Mbox
The DDF492 is our renewed and improved drill/screwdriver, specially developed for heavy-duty jobs with large diameters. Thanks to the brushless motor, it delivers constant power, even under high load. Weighing 2.7 kg (incl. tall battery), it is robust and reliable, ideal for intensive work such as screwing 10 x 90 mm.
Special features
- Extremely strong and durable for the toughest jobs.
- Constant speed and power under working load. Even under heavier loads.
- 2 functions: screwing and drilling.
- High ergonomic working comfort thanks to excellent machine-battery balance and comfortable soft grip.
- Extremely durable thanks to brushless motor: lower heat generation and higher protection.
- Extra durable due to protection against overload and deep discharge.
- Equipped with double LED lighting for even better visibility.
Technical data
- Platform: LXT 18 V
- Connection/chuck: 13 mm quick-release chuck with spindle lock
- Chain: 1.5 - 13 mm
- Bolt/screw with wood thread: 10x90 mm
- Drilling capacity in wood: 76 mm
- Augment drill capacity: 50 mm
- Cylinder head drill capacity: 76 mm
- Capacity hole saw: 152 mm
- Drilling capacity in metal: 13 mm
- Variable speed control: via switch
- Lighting: Yes
- Slip clutch: 21 positions
- Aluminum gear housing: Yes
- No-load speed (position 1): 0 - 550 rpm
- No-load speed (position 2): 0 - 2100 rpm
- Soft grip: Yes
- Adjustable torque range: approx. 1 - 12 Nm
- Rotation direction: Left and right rotating
- Battery protection: Yes
- Motor type: BL motor (brushless)
- Tightening torque soft / hard: 65 / 130 Nm
- Electric brake: Yes
- Number of mechanical speeds: 2
- Dimensions (LxWxH): 179 x 81 x 265 mm
- Sound pressure level (LpA): 80 dB(A)
- Uncertainty (K) (LpA): 3 dB(A)
- Sound power level (LWA): 88 dB(A)
- Uncertainty (K) (LWA): 3 dB(A)
- Vibration ah drilling in metal: 2.5 m/s²
- Vibration (K) drilling in metal: 1.5 m/s²
- Weight: 1.6 kg
- Weight with low LXT 18 V battery: 2.3 kg
- Weight with high LXT 18 V battery: 2.6 kg
- Voltage (Volt): 18 V
Scope of delivery
- 122F13-8 – Side handle drill/screwdriver DDF486
- 346317-0 – Carrying hook long press machines
- 452947-8 – Bit magazine
- 821550-0 – Mbox2
- 837916-4 – Case insert/inlay aluminum case blue top
- 784637-8 – Screw bit Sl-PH2
