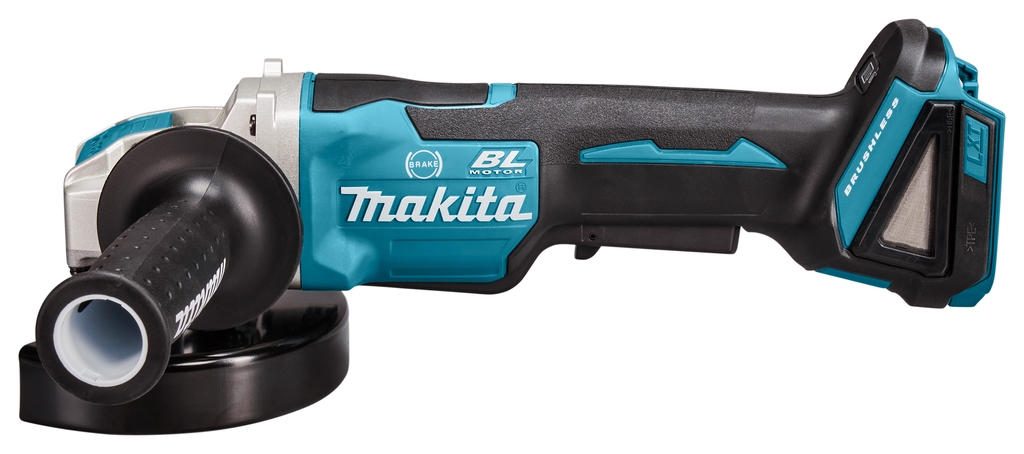

Makita DGA520ZX1 Angle Grinder X-Lock 125mm with safety switch 18V excl. batteries and charger in box + 5 year dealer warranty
Now a total of 5 years warranty on Makita DGA520 Machines(*)
(*) In addition to the Makita factory warranty (3 years after registration with Makita), you receive an extra 2 years TOOLPLUS* warranty from us. ToolNation TOOLPLUS* Warranty: 2 years extra toolplus warranty on power tools
X-LOCK is a new 2-piece quick-change system for changing angle grinder accessories with just one click. The X-shaped interface of the grinder head and the accessory allows for easy and effortless attachment. Accessories with a fixed direction of rotation, such as diamond discs, cannot be incorrectly attached thanks to the innovative X-LOCK system. No annoying nuts when working with angle grinders. Flush grinding is now possible and surfaces are never scratched. Accessories without an X-Lock connection do not fit on an X-Lock machine
Special features
- Powerful 125 mm cordless grinder with very effective overload protection. Lightweight.
- Equipped with X-LOCK quick-change system to change grinding discs with just one click.
- Increased safety: angle grinder with brake, grinding disc stops quickly.
- Equipped with safety switch: the machine switches off automatically when the switch is released.
- Quick, easy, and tool-free adjustment and replacement of guard.
- Features Automatic Torque Drive Technology (ADT): the machine electronically adjusts speed and torque to maintain power when resistance is encountered.
- Active Feedback Sensing Technology (AFT) activates in the event of a sudden reduction in speed or when the disc jams in the material, switching off the machine.
- Equipped with soft start and restart protection.
- Narrow and ergonomically designed handle for good grip and perfect control.
- Better protected against dust and moisture thanks to a unique design on the inside and outside of the housing.
- Thanks to the increased efficiency of the brushless motor with electronic control, this 18 V machine delivers almost the same performance as a corded model.
Technical data
- Platform LXT 18 V
- X-LOCK
- Disk diameter 125 mm
- No-load speed 8500 min-1
- Switch type Safety switch
- Restart protection
- Electric brake
- Overload protection
- Spindle lock
- Connection/chuck M14x2
- Voltage 18 V
- Motor type BL motor
- Soft start
- Battery charging indicator
- Softgrip
- Battery protection
- Dimensions lxbxh 376x140x147 mm
- Weight (EPTA) 2.3 kg
- Weight with low LXT 18 V battery 2.7 kg
- Weight with high LXT 18 V battery 3.0 kg
- Sound pressure level (LpA) 80 dB(A)
- Uncertainty (K) (LpA) 3 dB(A)
- Mounting protective cover Quick-change X-LOCK
Scope of delivery
- 194514-0 Handle AVT
- In box
- Supplied excl. batteries and charger
For our extensive range of X-LOCK accessories click here.
*Toolnation is the only Makita supplier to extend the warranty from 3 to 5 years. We take over the warranty terms after the 3rd year and keep track of them in our computer system.
