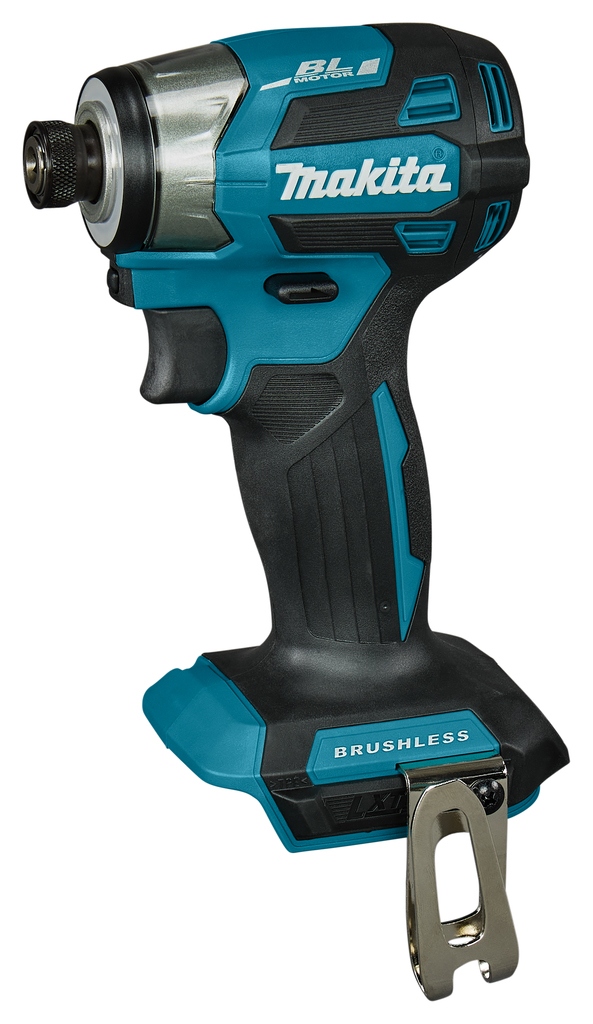

Makita DTD173ZJX1 LXT 18 V Cordless Impact Screwdriver, excl. batteries and charger, in Mbox with bit set
The DTD173 is a compact, powerful impact screwdriver with eight settings, based on the DTD172. The updated design offers better balance, more grip for overhead work, and a repositioned control panel for easier mode control. The dimmable ring lighting can be switched on manually, and the machine is more compact, making it easier to work in corners.
Special features
- Highly advanced impact screwdriver with 8 settings:
- Wood setting: Automatic speed control, starts at low speed and increases upon resistance to prevent thread damage.
- Bolt setting: Auto stop mode when reversing to prevent the bolt or nut from falling during disassembly.
- 2 T-settings: For working with self-tapping or self-drilling screws in both thin and thick metal.
- 4 adjustable speeds: From soft to medium, hard to maximum.
- Control panel on the back of the machine for easy monitoring and adjustment of the mode during use.
- Quick-change button under the head for setting the impact force.
- Programmable preferred setting selectable via quick-change button.
- Wider range of connections: From light to heavy connections (M4 to M14).
- Improved shaft bearing ensures less bit movement.
- Dimmable ring lighting in 3 settings for shadow-free working; can be manually switched on or off, allowing the machine to also be used as a flashlight.
- Compact design for excellent handling in tight spaces.
- Well-balanced: Comfortable, even when working overhead.
- Ergonomic design with low weight and rubber-coated handle for optimal comfort.
- Brushless motor for energy efficiency and durability.
- Ideal machine for controlled and reliable assembly.
- Better protected against dust and moisture ingress.
Technical data
- Platform LXT 18 V
- Connection/chuck: 1/4" hexagon
- Shape E
- Bolt/screw 4.6 metric: 5 - 20 mm
- Bolt/screw 8.8 metric: 3.5 - 14 mm
- Bolt/screw 10.9 metric: 3.5 - 12 mm
- Bolt/screw 12.9 metric: 3 - 12 mm
- Wood screw (length): 22 - 125 mm
- No-load speed (setting 1): 0 - 1100 min-1
- No-load speed (setting 2): 0 - 2100 min-1
- Self-drilling screw Ø: 4 - 6.3 mm
- No-load speed (setting 3): 0 - 3200 min-1
- Cap. Wood twist drill: H10 mm
- Cap. Metal twist drill: H6 mm
- No-load speed (setting 4): 0 - 3600 min-1
- T-setting for self-drilling screw: Yes
- A-setting for more control: Yes
- Variable speed control (switch)
- Max. torque (setting 1): 20 Nm
- Max. torque (setting 2): 50 Nm
- Variable speed control (digital)
- Max. torque (setting 3): 170 Nm
- Max. torque (setting 4): 180 Nm
- Lighting: Yes
- Voltage: 18 V
- Number of strokes (setting 1): 0 - 1100 min-1
- Motor type: BL motor
- Number of strokes (setting 2): 0 - 2600 min-1
- Number of strokes (setting 3): 0 - 3600 min-1
- Electric brake: Yes
- Number of strokes (setting 4): 0 - 3800 min-1
- Battery protection: Yes
- Soft grip: Yes
- Dimensions (LxWxH): 111 x 81 x 234 mm
- Sound pressure level (LpA): 100 dB(A)
- Uncertainty (K) (LpA): 3.0 dB(A)
- Sound power level (LWA): 108 dB(A)
- Uncertainty (K) (LwA): 3.0 dB(A)
- Rotating left and right
- Vibration ah: up to max. 12.9 m/s²
- Vibration (K): up to max. 1.5 m/s²
- Weight (EPTA): 0.85 kg
- Weight with low LXT 18 V battery: 1.2 kg
- Weight with high LXT 18 V battery: 1.5 kg
- Self-drilling screw/bolt Ø maximum: 6.3 mm

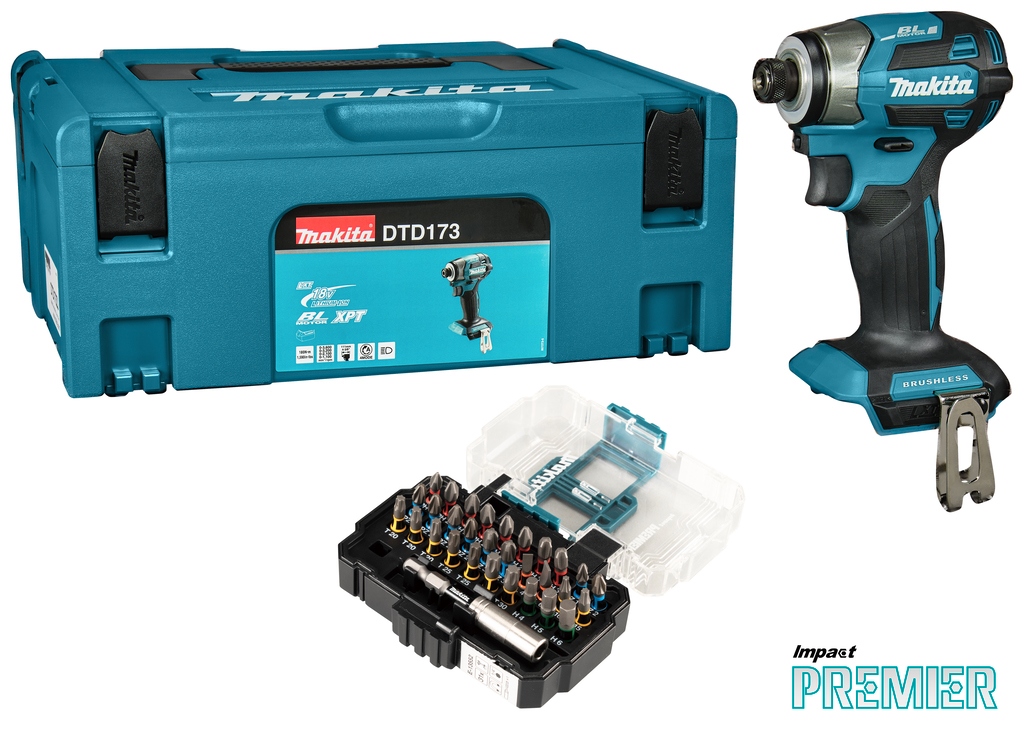

Scope of delivery
- 346317-0 Long carrying hook for power tools
- 821550-0 Mbox2
- 837670-0 Case insert/inlay DTD152/153/154/155/157/171Mbox2
- E-13552 Impact screwdriver bit set 31-piece Impact Premier
- 266622-8 Met. Schr. M4X12Mm Btd134
