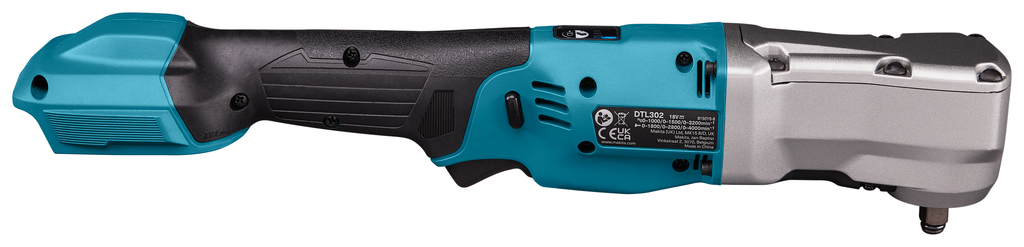

Makita DTL302Z LXT 18V Cordless Right-Angle Impact Wrench 3/8", excl. battery and charger in box
The LXT 18 V right-angle impact wrench with a 3/8" square drive with friction ring delivers a maximum torque of 340 Nm. Suitable for metric connections from M10 to M18. Thanks to the compact 78 mm right-angle head, you can also reach hard-to-reach places. With 3 adjustable speeds and auto-stop mode, you can easily adjust the tightening torque to the connection.
The machine with BL motor fits comfortably in the hand thanks to the narrow, non-slip housing and is excellently balanced. Additional user benefits include LED lighting, variable speed control, an electric motor brake, and XPT protection against dust and moisture ingress.
Special features
- LXT 18 V Right-angle impact wrench 3/8"
- Equipped with a 3/8" square drive with friction ring.
- Compact 78 mm right-angle head: hard-to-reach places are now accessible.
- Impact wrench with 3 adjustable speeds for matching the tightening torque to the workpiece.
- Auto stop mode prevents bolts from being overtightened and stops automatically when reversing.
- With built-in LED lighting that remains on for 10 seconds after releasing the switch. Adjustable to 3 power levels and switchable.
- Equipped with variable speed control in the switch.
- Machine stops almost instantly thanks to electric motor brake.
- Maximum torque of 340 Nm (after 6s of striking).
- Digitally adjustable: all-round machine with a wide range of connections (M10-M18).
- Very compact and well-balanced, making it extremely maneuverable in hard-to-reach places.
- Easy to handle thanks to the narrow housing and coated with anti-slip rubber for a secure grip.
- Well protected against the ingress of dust and moisture by eXtreme Protection Technology (XPT).
- Durable, energy-efficient, and maintenance-free brushless motor with electronic control.
- Durable thanks to protection against overload, overheating, and deep discharge of the battery.
Technical data
- Platform: LXT 18 V
- Connection/chuck: 3/8" square
- Standard metric bolt/screw: 10 – 20 mm
- High tensile strength metric bolt/screw: 10 – 16 mm
- Variable speed control (switch): Yes
- Variable speed control (digital): Yes
- Left-hand auto stop mode: Yes
- Maximum torque (setting 1): 90 Nm
- Maximum torque (setting 2): 170 Nm
- Maximum torque (setting 3): 340 Nm
- Maximum disassembly torque: 530 Nm
- Reverse and reverse rotation: Yes
- No-load speed (setting 1): 0 – 1,000 min⁻¹ »¹
- No-load speed (setting 2): 0 – 1,500 minâ »¹
- No-load speed (setting 3): 0 – 3,200 minâ »¹
- Number of strokes (setting 1): 0 – 1,800 minâ »¹
- Number of strokes (setting 2): 0 – 2,800 minâ »¹
- Number of strokes (setting 3): 0 – 4,000 minâ »¹
- Voltage: 18 V
- Motor type: BL motor
- Number of electric speeds: 3
- Lighting: Yes
- Softgrip: Yes
- Electric brake: Yes
- Battery protection: Yes
- Dimensions (l × w × h): 414 × 80 × 92 mm
- Vibration during mounting up to max.: 18 m/s²
- Vibration uncertainty (K) during mounting: 1.5 m/s²
- Sound pressure level (LpA): 96 dB(A)
- Uncertainty (K) LpA: 3 dB(A)
- Sound power level (LWA): 104 dB(A)
- Uncertainty (K) LwA: 3 dB(A)
- Weight: 1.45 kg
- Weight with low LXT 18 V battery: 1.8 kg
- Weight with high LXT 18 V battery: 2.1 kg
