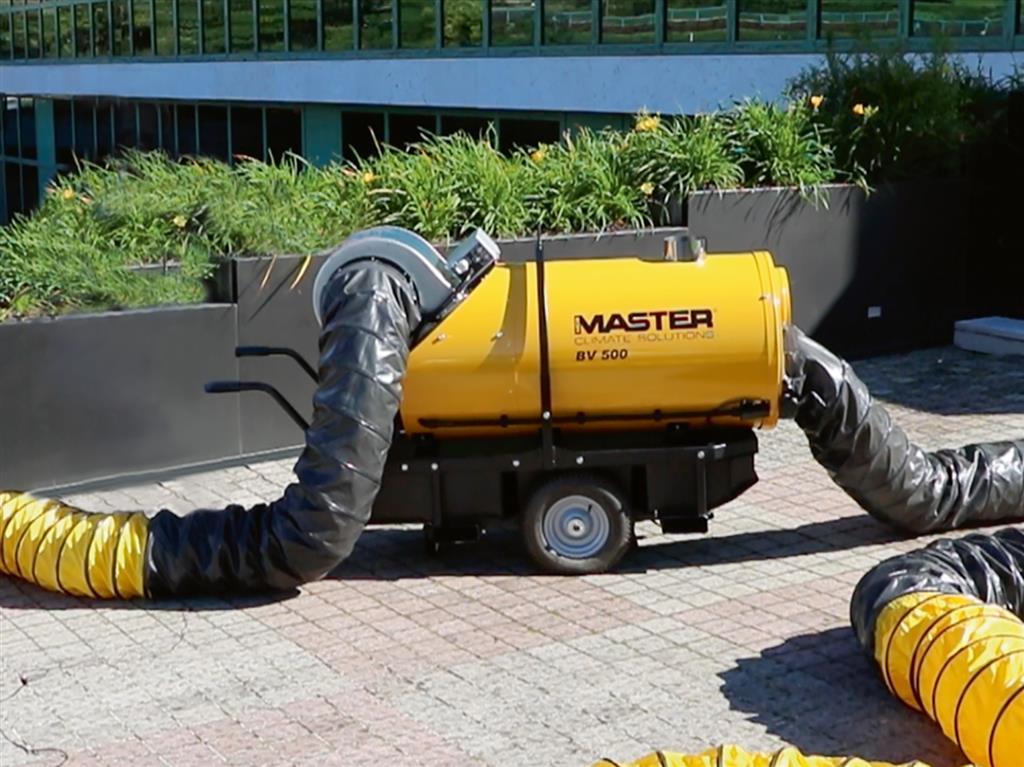

Master BV500-13C Indirectly Heated Diesel Heater 150kW Axial Fan
Master BV 500 - 13 CR Heater - BV500-13CR
Special Features
- Pure hot air Achieved pressure: 443 Pa
- Gas outlet
- Ability to adjust combustion to altitude
- Separate Riello burner with easy nozzle replacement
- Features windows allowing easy access to the heat exchanger for cleaning
- Fuel preheater
- Quick connections for electrical components
- Connection for external thermostat: analog and digital
- Summer-winter switch, exclusively for ventilation
- High capacity heat exchanger
- Combustion chamber made of stainless steel
- Snorkel Robust hook for movement via crane
- Base included
- Air outlet diameter: 2 x 300mm and 1 x 400mm
Technical data
- Net weight (kg) 224
- Dimensions width 717 mm
- Dimensions height 1233 mm
- Dimensions length 2086 mm
- Protection IP43
- Fuel consumption 12.19 / 13.32 l/h
- Capacity 117 / 150 kW
- GS25 CAPACITY 1,400,000 / 500,000 BTU/h
- Capacity 2 101,000 / 126,000 kcal/h
- Pressure 12 bar
- Electrical power supply 220 - 240 / 50 - 60 V/Hz
- Indicated current 13 A GS25-AIR PRESSURE 443 Pa
- Air volume flow 7700 m³/h
- Motor power 1500 / 2750 rpm
Standard included
- Pallet
- Manual
