Master BV691S-4 Indirectly fired diesel header 225KW 4-way
Features

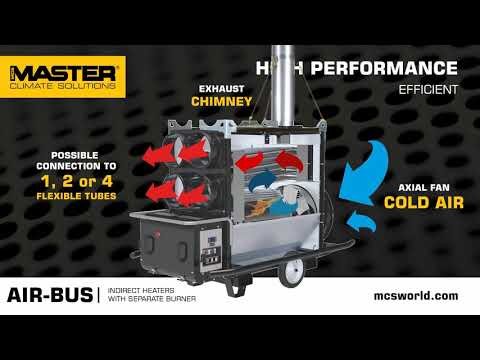

- The Master AIR-BUS indirect oil-fired heater features a high-capacity stainless steel tube heat exchanger and a separate Riello burner.
- The heater offers high efficiency and the ability to connect up to four flexible hoses per unit.
- Strong and robust steel frame with metric boltsPowerful axial fan
- Achieved pressure 250 Pa (400 Pa for centrifugal version)
- Digital combustion control
- Unique "cold start" button for very cold working environments
- Possibility to connect 4, 2, or 1 flexible hose
- Gas outlet
- Separate Riello burner
- Summer-winter switch exclusively for ventilation
- Electronic flame indicator light with photocell safety
- Fuel preheater
- Thermostat controlling the fan with automatic reset
- Two diesel filters: diesel pump filter and intake filter
- Quick connector to optional external tank
- High-capacity heat exchanger
- Combustion chamber made of stainless steel
- Includes robust wheels
- 4 robust crane hooks
- This heater can run on biofuel HVO 100, diesel, or kerosene.
Technical data
- Heating output: 225 kW 768,000 Btu / h 193,500 Kcal / hour
- Air Power: 12,800 m³ / hour fan: axial barometer: 250 Pa
- Device dimensions (LxWxH): 2340 x 998 x 1548 mm
- Thermostat Operation: analog or digital
- Fuel consumption: 21.44 l / h
- Power supply: 220-240 / 50 V / Hz
- Packaging dimensions (LxWxH): 2210 x 850 x 1380 mm
- Electrical current: 2.8 kW
- Current Rating: 12.6 A
- Protection class: IP 55
- Net / gross weight: 380/410 kg
- Exhaust connection Ø: 200 mm
- Air outlet dimensions: 4x32 / 1x70 cm
