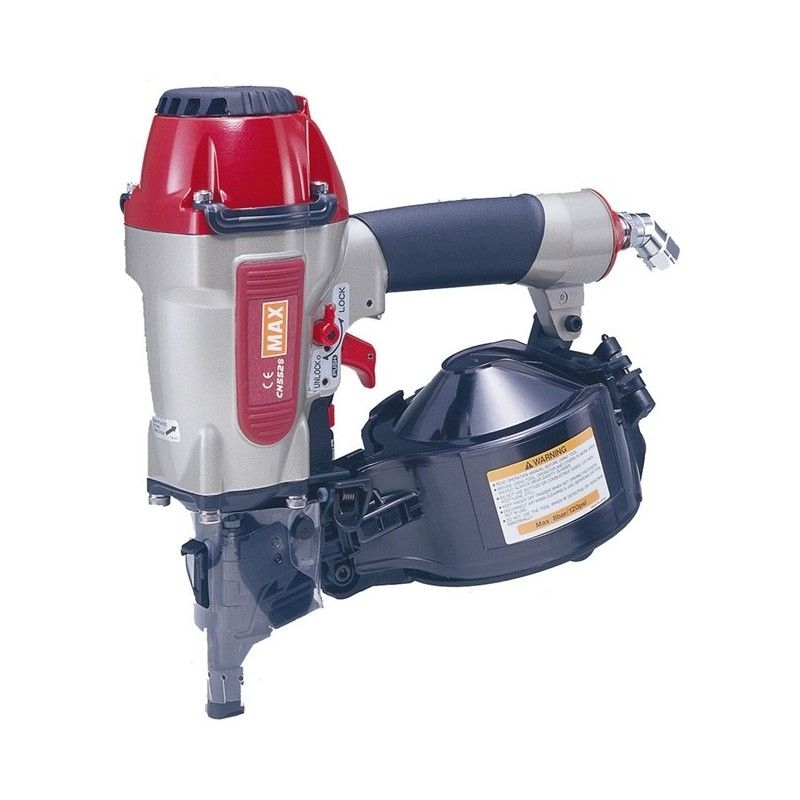

MAX TCN96094 Coil Nailer CN552S - 7 Bar / 25-50 mm
The MAX CN552S is one of the lightest and most compact coil nailers in the 8 bar range!
Special features
- This coil nailer is equipped with, among other things, depth adjustment, prevention against double firing, a built-in silencer, a comfortable handle, and comes with a swivel coupling.
- This coupling moves with you and ensures that your air hose does not get tangled!
- This tacker processes conical wire-welded nails and plastic-band nails with a length of 25 to 50 mm.
- The main tasks you can perform with this tacker are: General construction work, wall and roof cladding, and siding
Manual and Parts Drawing
- PDF Download our manual here
- PDF Download our parts drawing here
Technical Data
- Weight: 2 kg
- Dimensions (LxWxH): 270 x 125 x 270 mm
- Operation: Dual
- Nail length: 25 - 50 mm
- Nail diameter: 1.6 - 2.5 mm
- Magazine capacity: 200 - 400 nails
- Noise level: 91.96 dB
- Working pressure: 4 - 7 bar
- Air consumption per shot: 1.6 l at 6 bar
- Vibration: 3.45 m/s²
Scope of delivery
Including
- 1x MAX TCN96094 Coil Nailer CN552S - 7 Bar / 25-50 mm in box
- Manual
