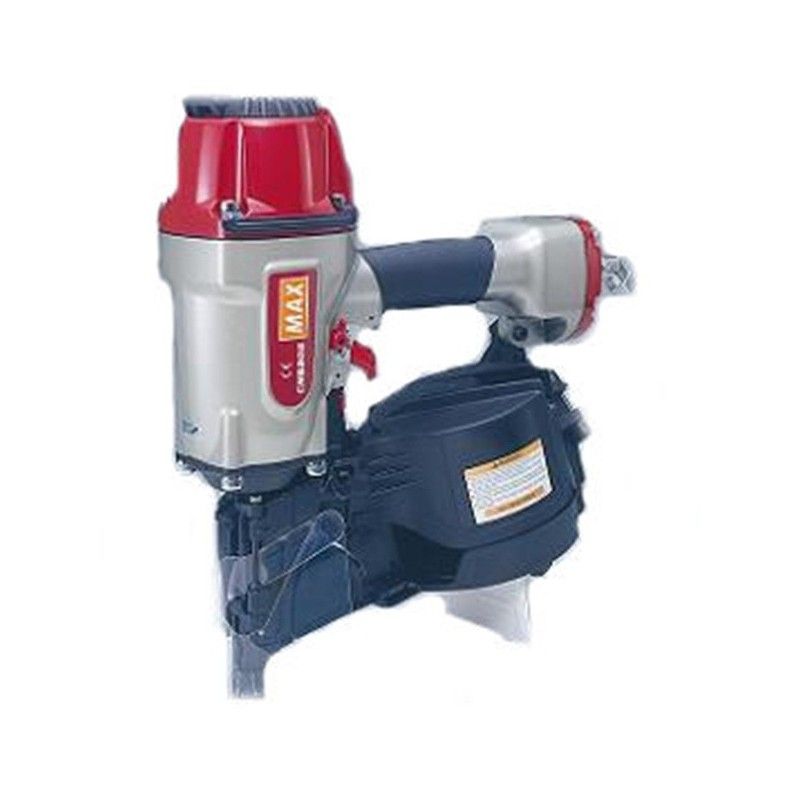

MAX TCN98761 Coil Nailer CN890S - 7 Bar / 45-90 mm
The MAX CN890S is the most complete tacker up to 90mm in its class!
Special features
- This coil nailer is equipped with, among other things, depth adjustment, adjustable air outlet, prevention against double firing, a comfortable handle, and comes with a swivel coupling.
- This coupling moves with you and ensures that your air hose does not get tangled!
- This tacker processes wire-welded nails and plastic-band nails with a length of 45 to 90mm.
- The main tasks you can perform with this tacker are: Timber frame construction, wall and roof cladding, and wood on metal or concrete (maximum B20)
Manual and Parts Drawing
- PDF Download our manual here
- PDF Download the parts drawing here
Technical Data
- Weight: 3.3 kg
- Dimensions (LxWxH): 331 x 129 x 387 mm
- Operation: Dual
- Nail length: 45 - 90 mm
- Nail diameter: 2.5 - 3.8 mm
- Magazine capacity: 200 - 300 nails
- Noise level: 93.68 dB
- Operating pressure: 5 - 7 bar
- Air consumption per shot: 1.37 l at 6 bar
- Vibration: 4.62 m/s²
Scope of delivery
Including
- 1x MAX TCN98761 Coil Nailer CN890S - 7 Bar / 45-90 mm in box
- Manual
