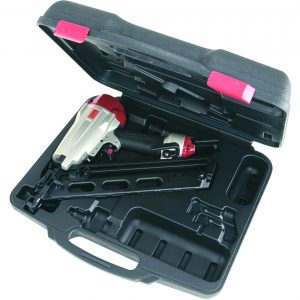

MAX TTA94307 Bradnailer 15GA NF665A/15 - 7 Bar / 32-65 mm
The MAX NF665A-15 is a 15Ga DA Bradnailer that is very compact, making it easy to maneuver in tight corners!
Special features
- This DA Bradnailer is equipped with, among other things, an adjustable air outlet, depth setting, belt hook, and a switch for single shot or repeating firing
- Should you unexpectedly experience a jam, you can easily remove the jammed brad using the open nose system
- This tacker processes 15Ga DA brads with a length of 32 to 65mm

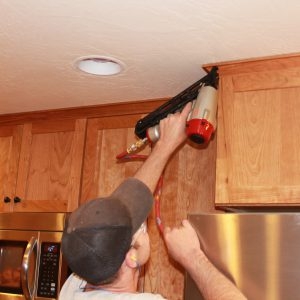

- The main tasks you can perform with this tacker are: Interior finishing such as furniture panels, plywood, and moldings, furniture production, and the constructing door and window frames
Manual and Parts Drawing
- PDF Download our manual here
- PDF Download the parts drawing here
Technical data
- Weight: 1.8 kg
- Dimensions (LxWxH): 322 x 94 x 322 mm
- Magazine capacity: 100 brads
- Air consumption per shot: 0.68 l at 7 bar
- Consumable: 15Ga DA brads
- Nail length: 32-65 mm
- Working pressure: 5-7 bar
- Noise level: 85.5 dB
Scope of delivery
Includes
- 1x MAX TTA94307 Bradnailer 15GA NF665A/15 - 7 Bar / 32-65 mm in box
- Manual
