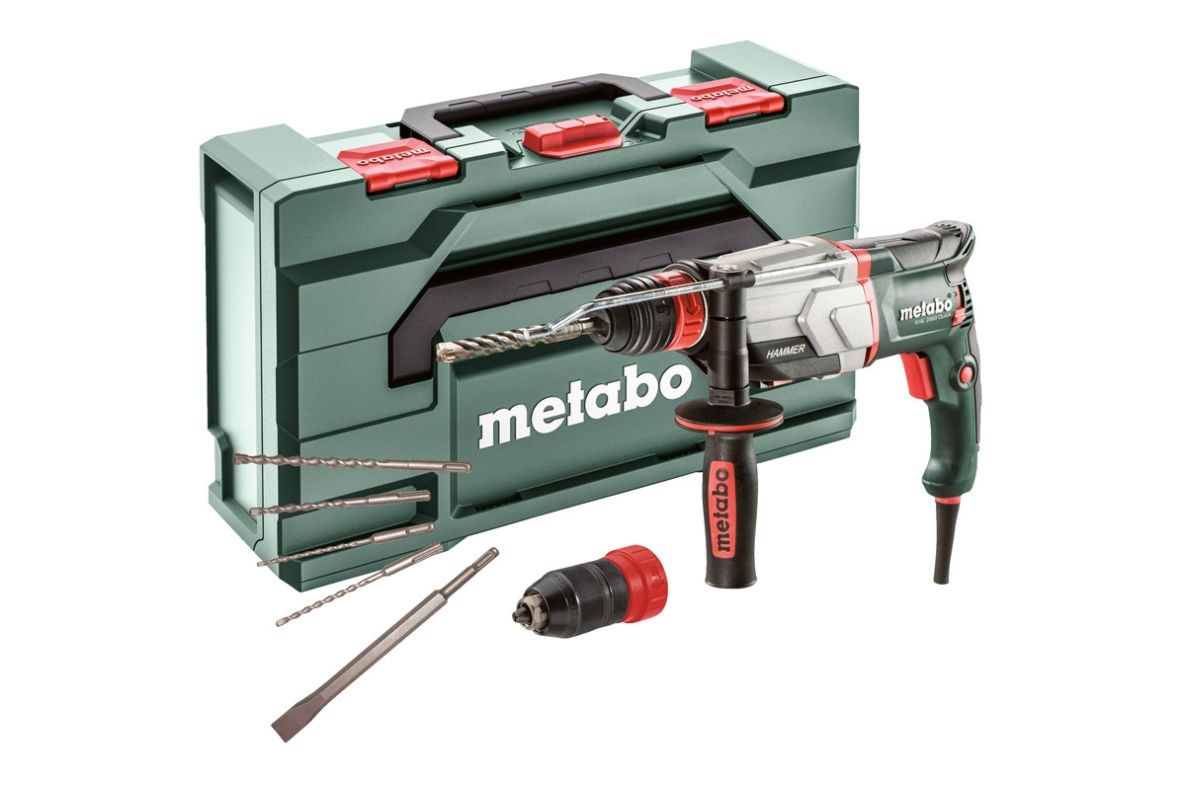

Metabo 600878850 KHE 2860 Quick Combi Hammer
Special features
- Combi hammer with 3 functions: hammer drilling, drilling, and chiseling
- Metabo Quick: quick change between SDS-Plus hammer drill chuck and quick-release chuck for drilling in wood and metal
- Perfect ergonomics thanks to center of gravity close to the hand and optimal grip contour
- Under-mounted selector switch protected against damage and dust
- Vario (V) electronics for working with speeds adapted to the material
- Metabo Marathon motor with dust protection for long service life
- Extremely powerful impact mechanism, precision-mounted in an aluminum alloy housing: long service life and robust
- Metabo S-automatic safety clutch: mechanical disengagement of the drive in case of jamming of the drill for safe working
- Lockable switch for comfortable working during continuous operation
- Cable protection ball joint for optimal freedom of movement during working
- With metaBOX, the intelligent solution for transport and storage
Technical data
- Max. internal impact energy (EPTA): 3.2 J
- Max. Number of strokes: 4400 /min
- Power input: 880 W
- Drilling Ø concrete with hammer drills: 28 mm
- Drilling Ø masonry with core drills: 68 mm
- Drilling Ø steel: 13 mm
- Drilling Ø soft wood: 32 mm
- Nozzle speed: 0 - 1150 /min
- Speed under load: 870 /min
- Tool holder: SDS-plus
- Choke diameter: 50 mm
- Weight (without power cord): 3.1 kg
- Cable length: 4 m
Vibration
- Hammer drilling concrete: 12.9 m/s²
- Measurement uncertainty K: 2.4 m/s²
- Chiseling: 8.5 m/s²
- Measurement uncertainty K: 1.5 m/s²
Sound emission
- Sound pressure level: 89 dB(A)
- Sound power level (LwA): 99 dB(A)
- Measurement uncertainty K: 3 dB(A)
Scope of delivery
- SDS-plus hammer drill chuck
- Quick-release chuck for tools with cylindrical shank
- Extra rubber anti-slip handle
- Drill depth guide
- metaBOX 145 L
- SDS-plus drill/chisel set (5-part.)
