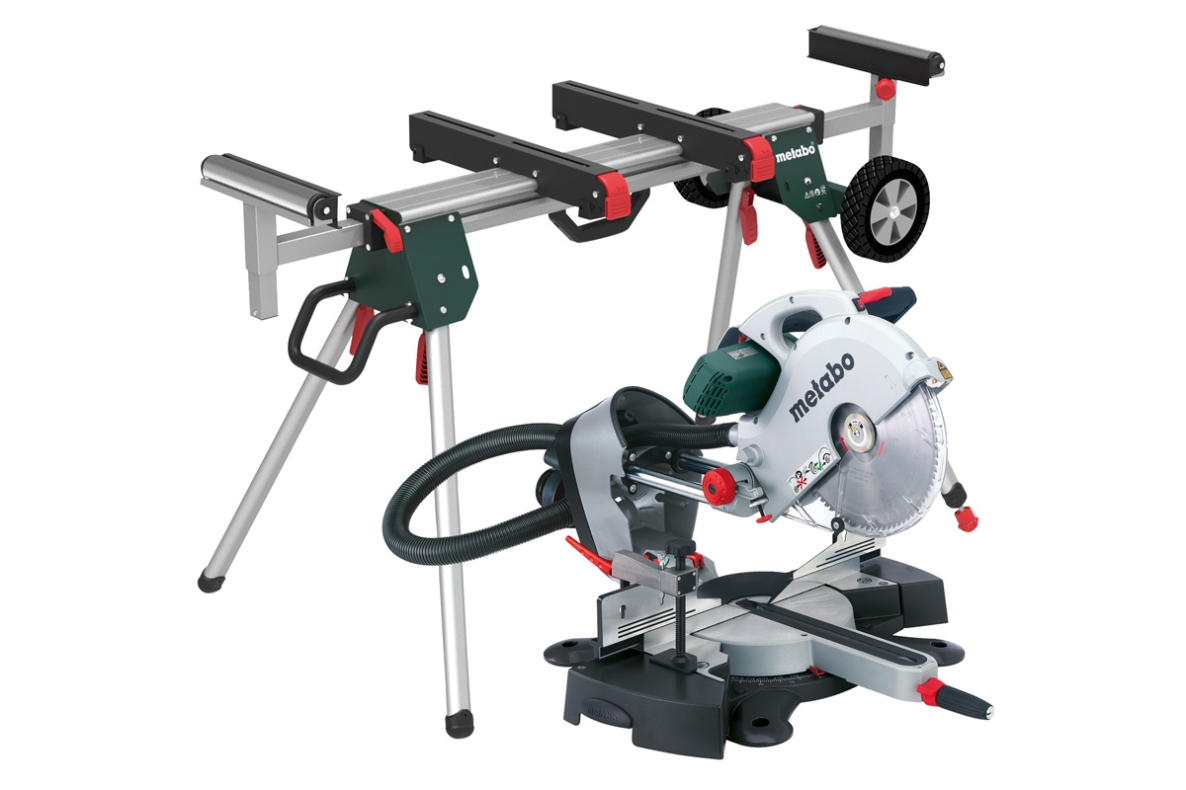

Metabo 690970000 KGS315Plus Miter Saw 315MM 2200W with pull function + KSU251 Stand + 5-year dealer warranty
Order your Metabo machine now and benefit from the total 5-year warranty on Metabo Machines(*)
(*) In addition to the Metabo factory warranty (3 years after registration with Metabo), you will receive an extra 2 years of TOOLPLUS warranty from us. ToolNation TOOLPLUS Warranty: 2 years extra Toolplus warranty on power tools, extra security from Toolnation.
Metabo Quick system for fast blade changes. Optimal dust extraction! Extendable table extension l/r. With laser for precise cutting indication. High stop, adjustable on both sides!
Special features KGS 315 Plus
- Maximum flexibility when sawing thanks to a table rotating on both sides and a saw head tilting on both sides
- Enormous capacity thanks to an extremely powerful universal motor and large saw blade
- Speed control for a wide range of applications, e.g. for sawing aluminium profiles and plastics
- Pull function for wide workpieces
- Easy transport thanks to ergonomic carrying handles and saw head guard
- Optimal chip extraction thanks to a second extraction point directly on the sawing area
- Vario-Constamatic (VTC) full-wave electronics for working with speeds adapted to the material, which remain constant under load
- Metabo Quick for tool-free saw blade change
- Soft start for long service life of motor and drive
- Fast and precise setting of common angles via locking points
- High, laterally sliding guides for safe sawing
- Material clamp for securely fastening the workpiece from above or from the front
- Integrated pull-out die-cast aluminium table extensions
- Depth stop for easily making grooves
- All scales and controls visible from the working position and intuitively operable
Specifications
- Dimensions 950 x 765 x 660 mm
- Max. cutting width 90°/45° 320 / 223 mm
- Max. sawing depth 90°/45° 120 / 76 mm
- Sawing capacity 90°/90° 320 x 120 mm
- Sawing capacity 45°/45° 223 x 76 mm
- Dial setting left/right 47 / 60 °
- Saw blade tilt left/right 46 / 46 °
- Saw blade 315 x 30 mm
- Nominal power input 2200 W
- Power input S6 20% 2200 W
- No-load speed 3100 - 4100 /min
- Speed under load 4100 /min
- Cutting speed 51 - 68 m/s
- Weight 26 kg
Standard Included
- Carbide saw blade (84-tooth)
- 2 integrated table extensions
- Material clamp
- Transition piece 630316000
Now supplied with KSU251 base
We have our own in-house service and repair workshop where we carry out repairs in-house. This benefits you as a customer; the downtime of your machine is thus kept to a minimum!
*Toolnation, as the only Metabo supplier, extends the warranty from 3 to 5 years. We take over the warranty provisions after the 3rd year and keep track of them in our computer system. (warranty only valid after registration see conditions in this link)
