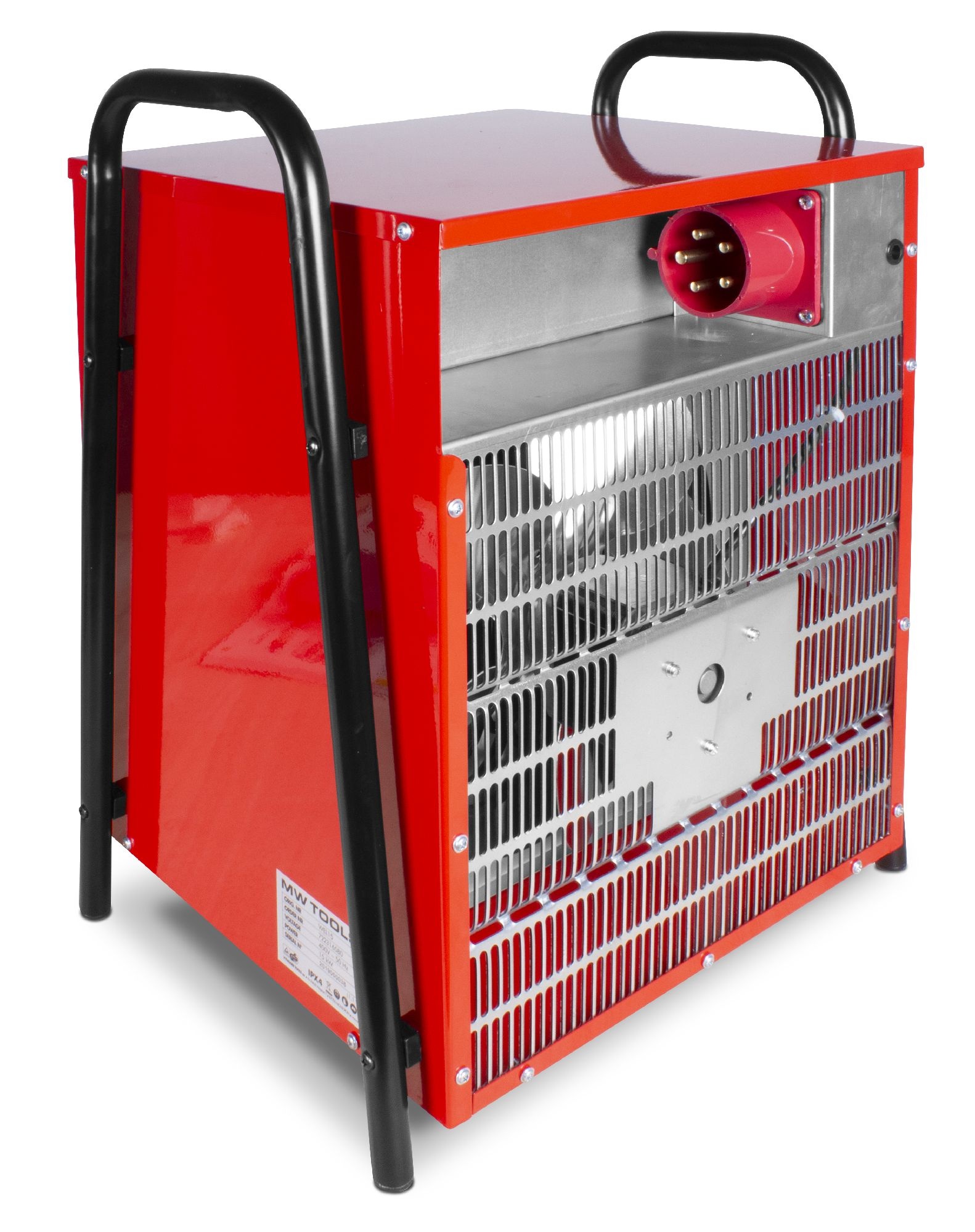

Metal Works WEL15 Electric Heater 15kW 3x400V
Special Features
- Electric heater 15kW.
- Suitable for heating rooms up to 870m³, depending on the insulation and ventilation of the room. The better the insulation value of the building elements (lower K-value), the larger the space you can heat.
- Maximum heatable volume of 870 m³, at a K-value of 0.5: provided the building is well insulated according to recent building standards.
- Minimum heatable volume of 170 m³, at a K-value of 2.5: in the case the building is not insulated, with single glazing, solid brick walls, a roof with old corrugated sheets, or for rooms where doors are frequently opened.
- Built-in thermostat with control knob
- Multi-position switch for fan
- IPX4 splash-proof for use in damp rooms
- CE approved
- Supplied without cable. The connection plug (32A) is located on the back of the device. Provide a cable that is long enough for your application and thick enough to deliver the high power.
- Caution: this device operates on 3 x 400 V and requires a suitable fuse, heavy enough to deliver the high power.
Benefits
- Suitable for heating offices and small spaces, as well as for keeping liquid storage areas frost-free, among other things.
- Consumes no oxygen and emits no moisture or odors.
- High-quality stainless steel heating element.
- Thermal protection against overheating.
- Powder-coated steel housing and plastic handle prevent rust formation.
Technical data
- Heat output kW 15
- Heat type Ventilated air
- Energy source Electric
- Thermostat Yes
- Total consumption W 95/5000/10000/15000
- Power consumption kW 15
- Heatable area m³ 870
- Voltage V 3x400
- Frequency Hz 50
- Air flow rate m³/h 2246
- Main fuse A 40
- Noise level dB(A) 57
- Mobile Yes
- Weight kg 14.50
- Dimensions (LxWxH) mm 410x360x550
Scope of delivery
- In box
