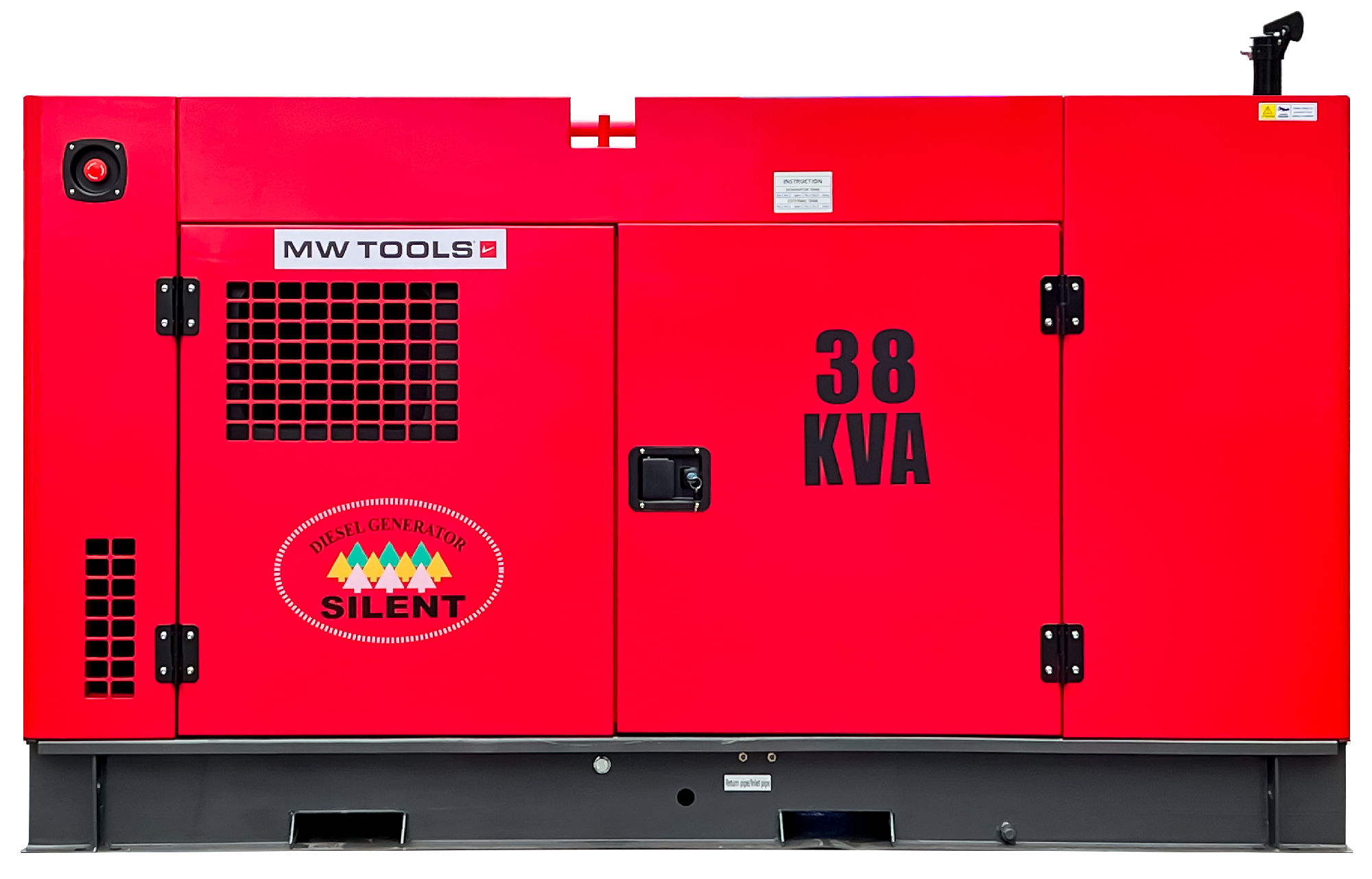

Metal Works DG380E Diesel Generator 38kVA 1X230V+3X400V 5-pole
Special Features
- Water-cooled 4-cylinder 4-stroke diesel engine FAWDE of 53 hp
- Low-noise enclosure, fully lined with sound-absorbing foam, resulting in a low noise level of 73 decibels.
- Brushless DINGO alternator with high efficiency of 87%
- Built-in 80-liter diesel tank + external tank connection
- The front panel is equipped with 2 7.5mm nipples for connecting fuel hoses to an external diesel tank. (hoses and external tank itself are not included)

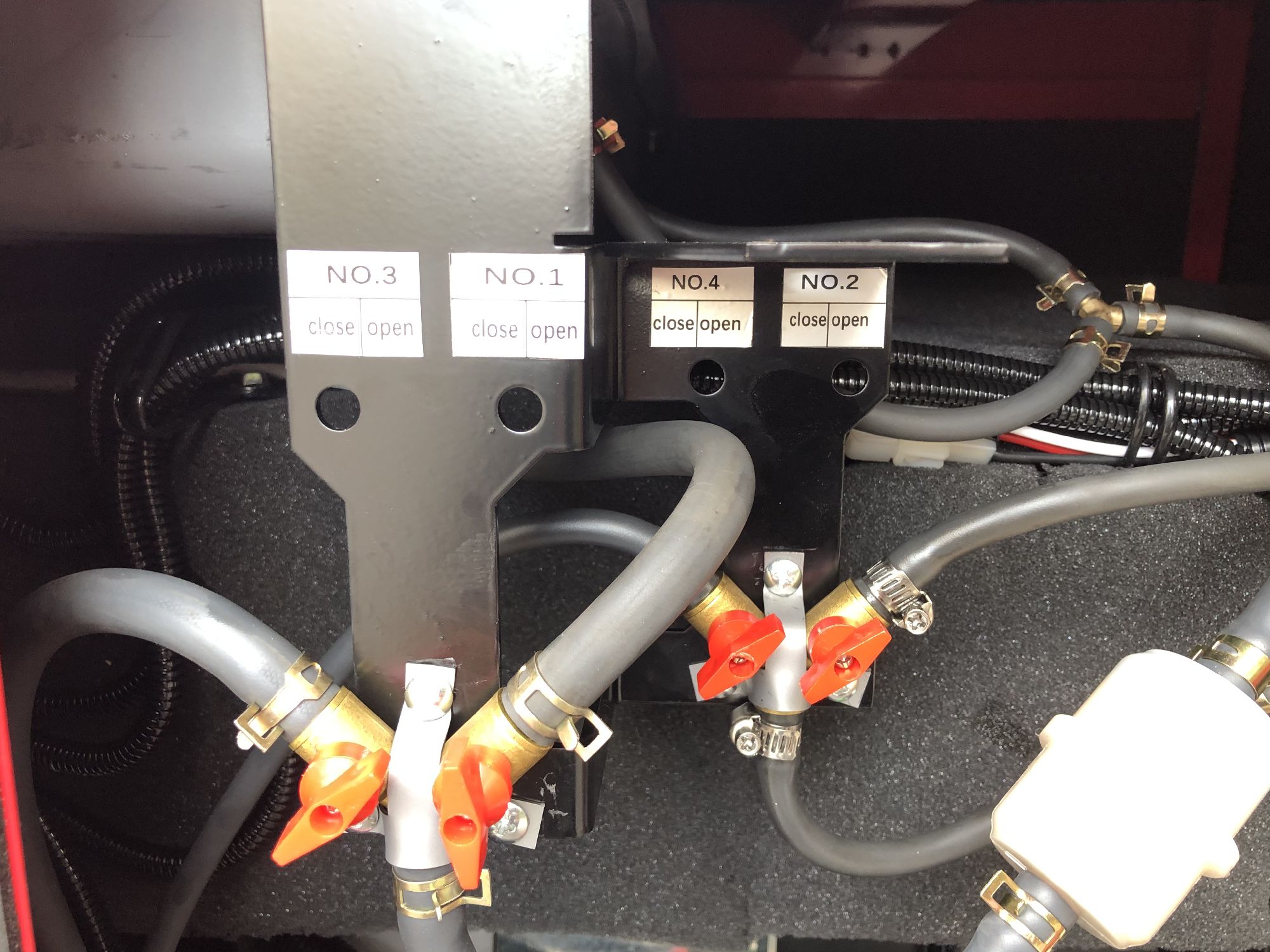

- The pump in the housing can be switched between the internal or external tank via a selector switch. The pump is self-priming. Maximum suction length to external tank: 10 meters. The external diesel tank must be at the same level as the generator.

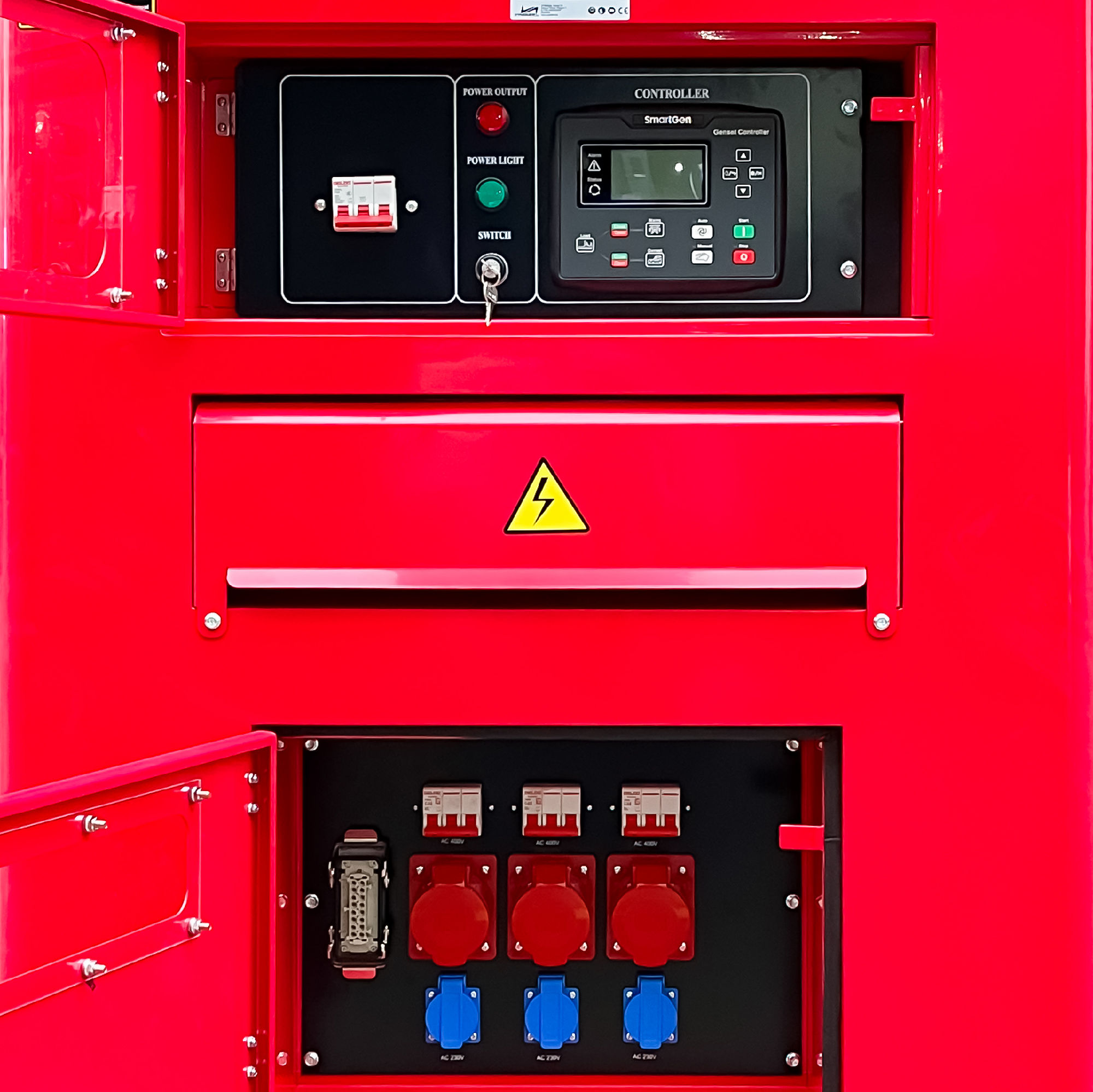

- 3 sockets 3x400V 32A 5-pin. Each socket is separately fused at 32A, allowing up to 22 kW of power to be supplied per socket.
- 3 sockets 1x230V 16A
- Lockable panel with phase pins 3+N 63A for connecting heavy consumers.
- 1 main fuse 63A
- Smartgen HGM6120N digital controller with large and clear 132x64mm LCD display.
- Digital display showing parameters: Voltage (V), Current (A), Frequency (Hz), Power (W), power factor (%), temperature, fuel level, RPM, hour meter, Battery voltage.
- Electric start with key.
- Warnings for periodic maintenance.
- Alarm messages for, among others, water temperature, oil pressure, oil level, RPM, and overload.
- Protection via automatic stop function in case of alarm messages and maintenance
- Connection for external grounding rod (rod and cables not included)
Advantages
- 38 kVA (30kW) output at 3x400V (Nominal)
- 41 kVA peak output at 3x400V (Standby)
- Water-cooled 4-cylinder diesel engine, suitable for prolonged continuous operation of 24h
- Connection for external diesel tanks, allowing the generator to continue running without refueling
- Built-in 80-liter tank with an autonomy of 8.9 hours at maximum load
- ATS plug, for connection to an external ATS and the fuse box, for automatic switching between mains power and generator power
- Digital controller with display monitors and controls the generator
- AVR automatic voltage regulation with very stable sine wave-
- Low noise casing
Technical data
- Voltage V 1 x 230 + 3 x 400
- Maximum power kVA 41
- Continuous power kVA 38
- Circuit protection Yes
- Start Electric
- Battery included Yes
- Engine type Diesel 4-stroke 3.86 litres
- Fuel consumption g/kWh 230
- Maximum engine power hp 53
- Tank capacity l 13
- Maximum power kW 30
- Petrol/oil tank capacity l 80
- Oil tank capacity l 13
- Sockets 230V st 1
- Sockets 3x400V st 3
- Noise level dB(A) 73
- Autonomy h 8.9
- Cylinder 4
- Maximum power 1 x 230V kW 11
- Continuous power 1 x 230V kW 10
- Maximum power 3 x 400V kW 32
- Continuous power 3 x 400V kW 30
- Weight kg 870.00
- Dimensions (LxWxH) mm 2320x980 x1320
Scope of delivery
- Set of slotted holes at the bottom of the generator, for moving with a forklift, lifting forks, or pallet truck
- Battery and key for the electric start
- Supplied with 2 starter batteries 80Ah 24V
- Toolset with filling funnel
- External suction hoses and the external tank itself are not included
- ATS socket with plug, cables and ATS switch are not included
- The generator is supplied without engine oil (capacity: 13 liters) and without coolant (capacity 15 liters)
