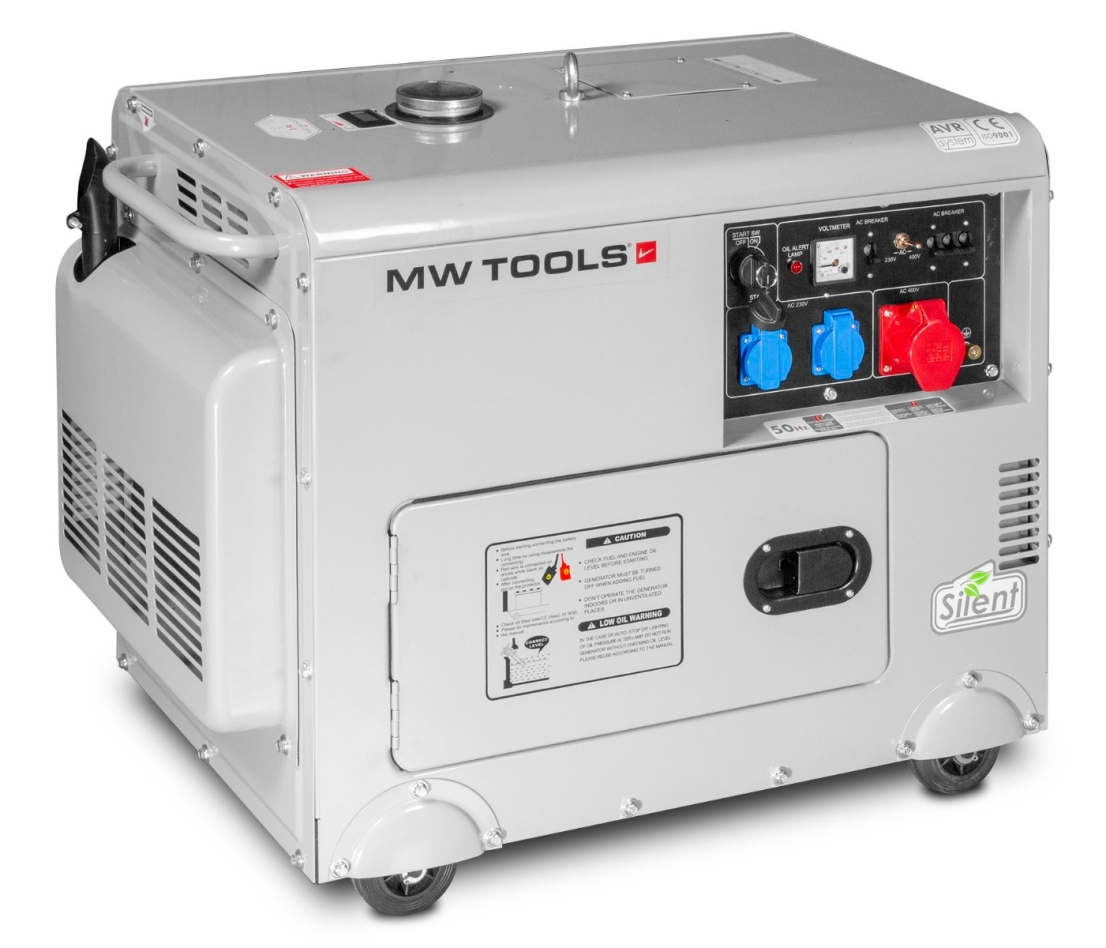

MW-Tools DG65E Diesel Generator 1x230V 4.8KW / 3x400V 6.0KW
Special Features
- Low-noise diesel generator 4.8 kW on 1x230 V and 6.0 kW on 3x400 V, for use on construction sites, at indoor or outdoor events, or as an emergency generator for businesses and homes.
- The generator delivers a continuous output of 4.4 kW at 230 V and is suitable for operating various heavy-duty devices together without overloading the fuse.
- Type 'Equal power output' with 2 separate fuses on the main board: a separate fuse for 1x230 V and for 3x400 V.
- This allows you to get the maximum power out of the generator.
- Thanks to the double fuse, this Group also suitable for 230 V devices with an electric motor such as construction machinery (grinders, saws, etc.), workshop machines (small compressor, drill, vacuum cleaners, etc.), garden tools (lawnmower, hedge trimmer, edge trimmer, water pump, etc.) or as an emergency generator that can provide sufficient capacity in the event of a power outage.
- Low-noise enclosure, fully lined with sound-absorbing foam
- Sockets: 230 V (2x) and 3 x 400 V (1x) 2 separate fuses on the main board (1x230 V and 3x400 V) 4.8 kW maximum power at 1 x 230 V 6.0 kW maximum power at 3 x 400 V
- Fuel consumption at continuous full load: 2.52 liters/hour
- Electric start
- AVR automatic voltage regulation: ensures a stable output voltage.
- Voltage variations are within +/- 2.5%, making this generator suitable for use with most electronic devices such as construction machinery, garden machinery, household and kitchen appliances, etc.
- Not suitable for very sensitive devices such as computers or sensitive electronics 100% Copper wound alternator
- Air-cooled diesel engine
- 8.15 hp Generator with power factor of 0.8 (power of 1 kW = 1.25 kVA)
Technical data
- Voltage V 1x230 + 3x400
- Circuit protection
- Battery included
- Engine type Diesel 4-stroke 498cc
- Fuel consumption g/kWh 265
- Consumption l/min 0.04
- Tank capacity l 16
- 230V sockets pcs 2
- 3x400V sockets pcs 1
- Noise level dB(A) 68
- On wheels
- Range h 8.5
- Cylinder 1
- Maximum power 1 x 230V kW 4.8
- Continuous power 1 x 230V kW 4.4
- Maximum power 3 x 400V kW 6.0
- Continuous power 3 x 400V kW 5.5
- Current at 230 VA 19.1
- Current at 400 VA 7.9
- Weight kg 156.00
- Dimensions (LxWxH) mm 915x540x725
Scope of delivery
- Supplied without 15W40 engine oil
- Wheel set
- Central lifting eye
- Electric start with battery and key
- Tool set with filling funnel, spare fuel filters and connection plugs (male) for the sockets
- Battery 36Ah 12V, dimensions 19 x 125 x 200 mm
