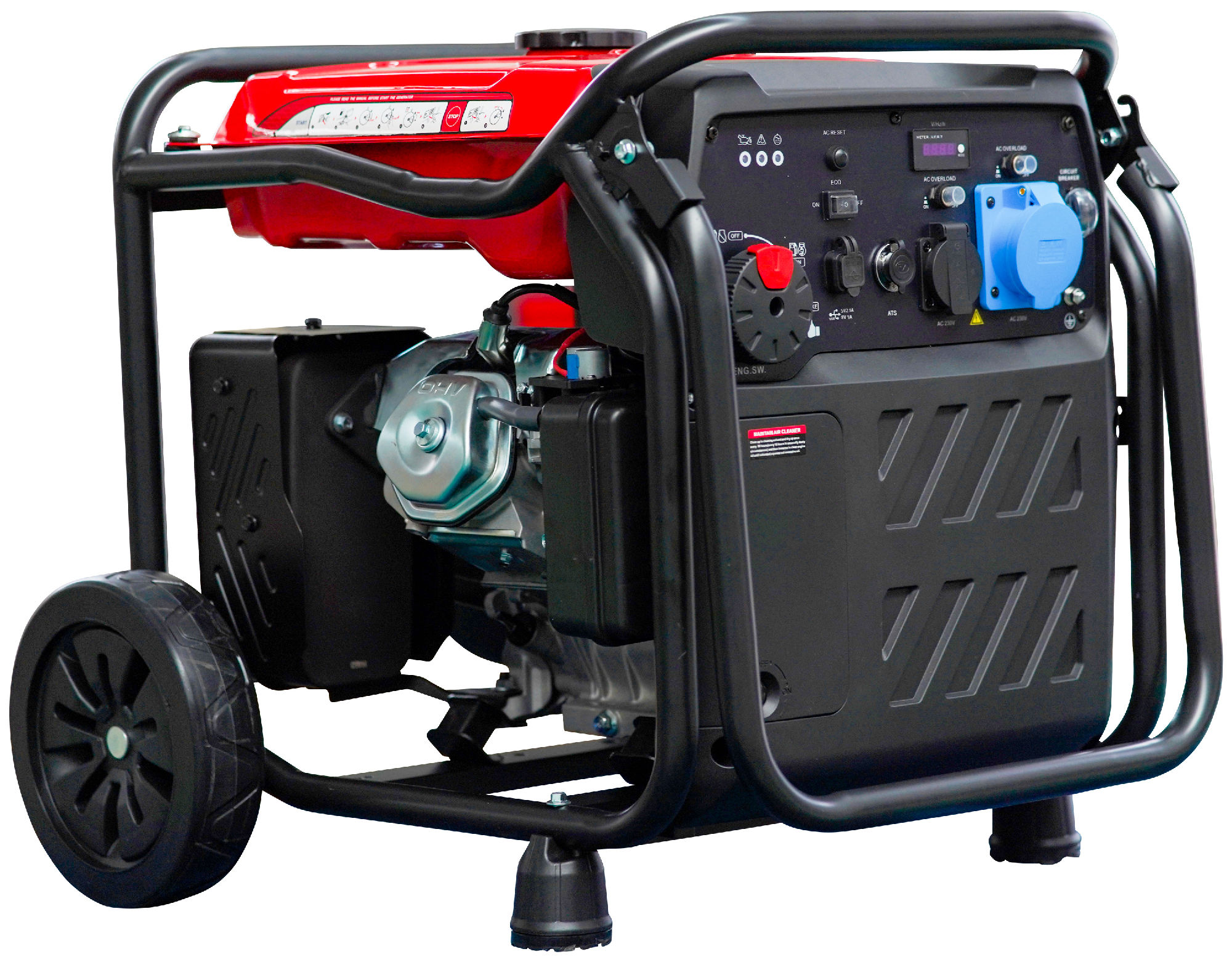

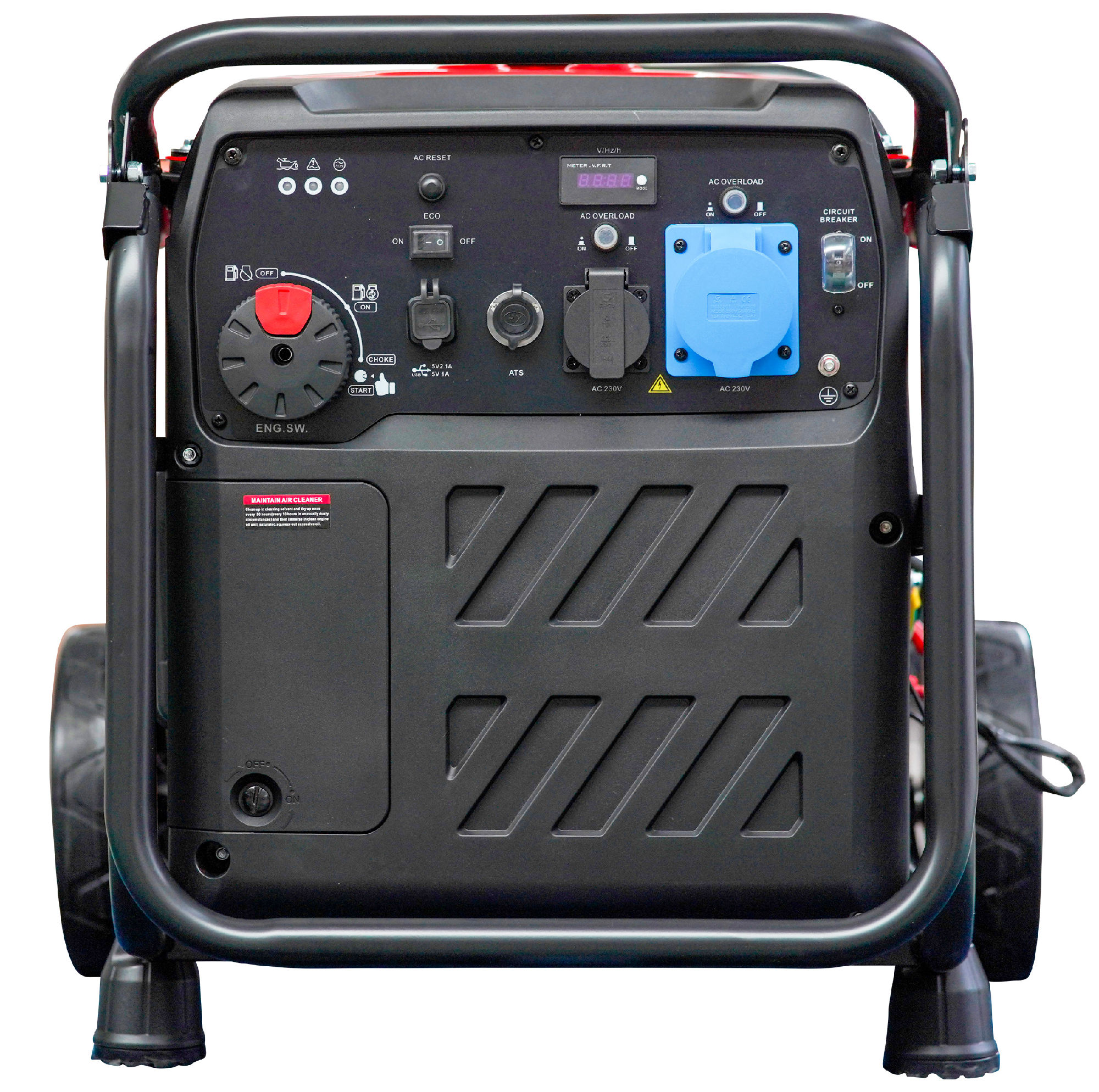

Metal Works BGI85E Petrol inverter generator 8.5 kW 230 V with electric start and ATS plug
Special Features
- Petrol inverter generator 8.5 kW 230 V with electric start and ATS plug
- Single-phase inverter petrol generator with stable pure sine wave output voltage, for use with electronic devices such as computers, smartphones, battery chargers, household appliances, etc.
- Model with ATS connector, suitable for connection to the internal installation and use as a backup generator during power outages or blackouts.
- Mobile power generator on wheels, ideal for use on construction sites, in homes, at outdoor events, for roadside assistance, as a backup generator, etc.
- 8.5 kW maximum output
- 8.0 kW continuous output
- Electronic inverter control delivers a pure sine wave output voltage of 230 V ± 3%, suitable for all electronic devices, computers, servers, household appliances and USB chargers
- Electric start with integrated battery and large rotary start knob for easy keyless starting
- Open type with easy access to all components
- 1 socket 230 V 16A with earth connection
- 1 socket 230 V 32A with pin earth connection (blue industrial plug)
- 2 USB sockets 5 V, 1A (1x) and 2.1A (1x) for fast charging smartphones and other battery-powered portable devices
- 8-pin ATS input plug, to which an external ATS (Automatic Transfer Switch) can be connected. This ATS manages switching the generator on/off in the event of power outages in the internal electrical installation. (The ATS itself is not included)
- Fuel-efficient. This provides a good autonomy of 8 hours (50% load)
- Fuel consumption of 2.5 l/h (50% load) or 5.0 l/h (100% load)
- Large 20-liter fuel tank

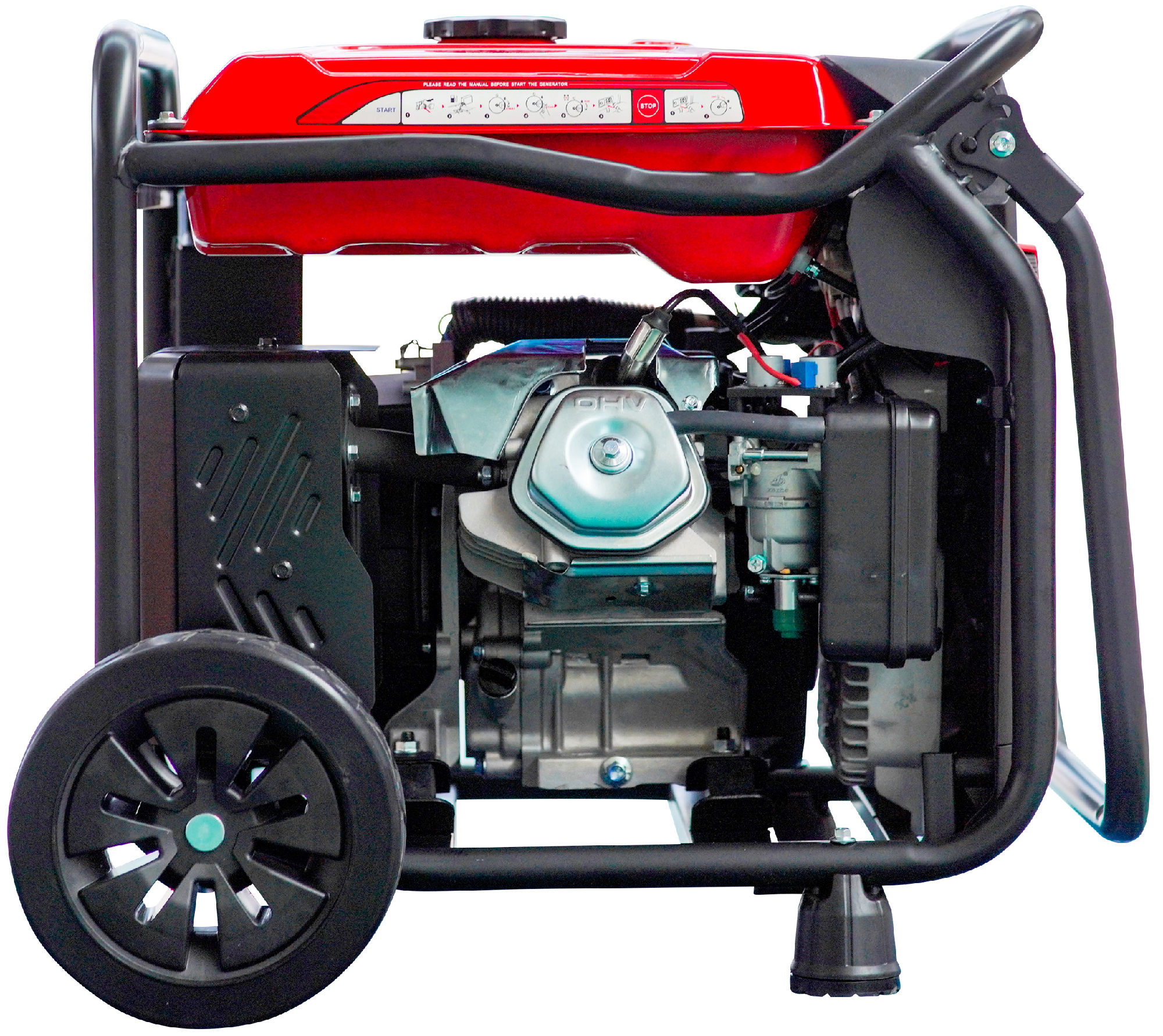

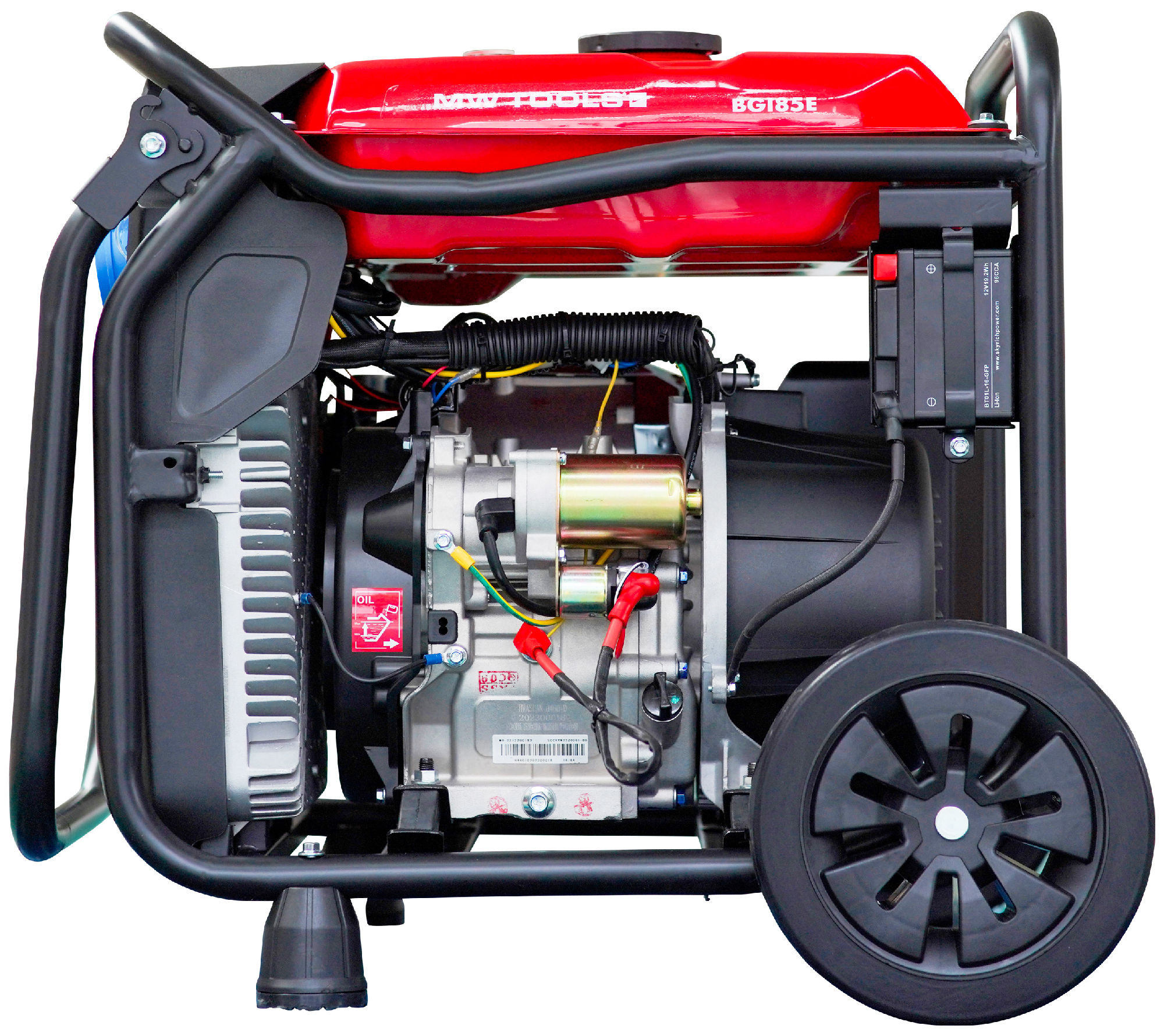

- 17hp 4-stroke OHC petrol engine with air cooling 458cc
- Eco mode for lower fuel consumption at low load. In this mode, the generator runs at a lower speed.
- Impact-resistant steel tube frame as protection for the components and the tank.
- 2 large plastic rear wheels.

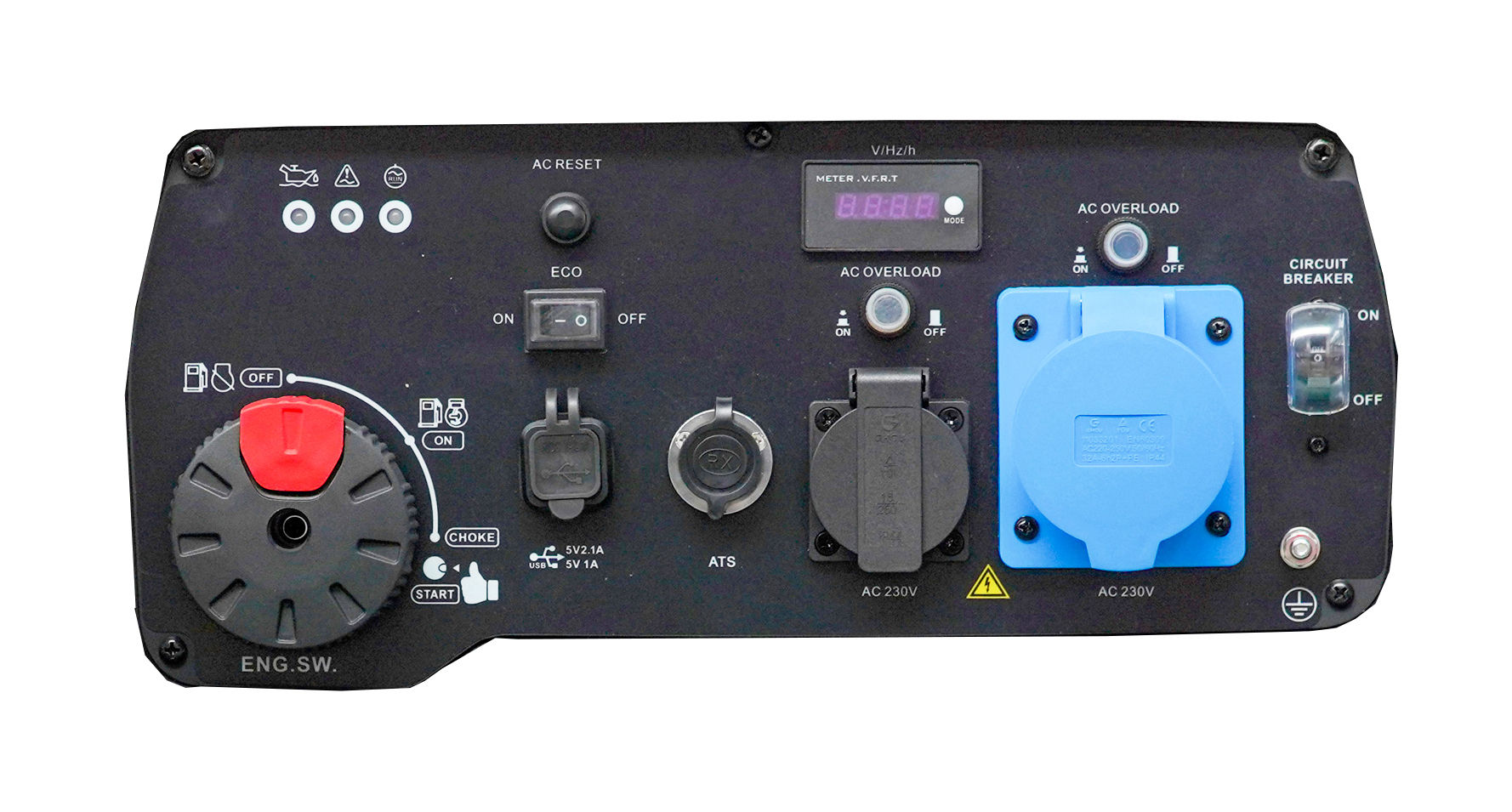

- Digital display showing parameters: Voltage (V), Frequency (Hz), hour meter (total), and hour meter since startup
- LED indicator warns of low oil level and automatically switches off the generator
- LED indicator warns of 10% overload and automatically switches off at a higher overload
- AC reset button, for directly resetting the generator (after overload) without having to switch it off first.
- Connection point on the front panel for grounding (grounding pin and cable not included)
- Manual choke button
- Suitable fuels: petrol type E5 (98), E10 (95), E15 (maximum 15% ethanol) and also alkylate petrol for 4-stroke engines. Unsuitable fuels: E85, ethanol, bio-ethanol
Advantages
- Pure sine wave inverter technology 230V, suitable for all electronics
- High continuous power of 8.0kW at 230V
- Engine with electric start
- ATS plug, to be connected to an ATS and the fuse box, for automatic switching between mains power and generator power
- Large 20-liter fuel tank
- Integrated wheel set and trolley handle
- Low fuel consumption
- Open frame type
Technical data
- Type: Open frame inverter
- Voltage: 1 x 230
- Start: Electric
- Engine type: 17hp petrol 4-stroke
- Energy source Petrol
- Cylinder capacity cc 458
- Tank capacity l 20
- Maximum power kW 8.5
- Continuous power kW 8.0
- Oil tank capacity l 1.1
- Sockets 230V 32A pc 1
- Sockets 230V 16A pc 1
- USB sockets pc 2
- Noise level dB(A) 74
- Inverter Yes
- On wheels Yes
- Frequency Hz 50
- Range h 8
- Current at 230 VA 36.9
- Fuel type Petrol
- Weight kg 68.00
- Dimensions (lxwxh) mm 598x500 x553
Scope of delivery
- Gel battery 12V 1600mAh 19.2Wh, with dimensions 107×58×86mm
- On pallet
