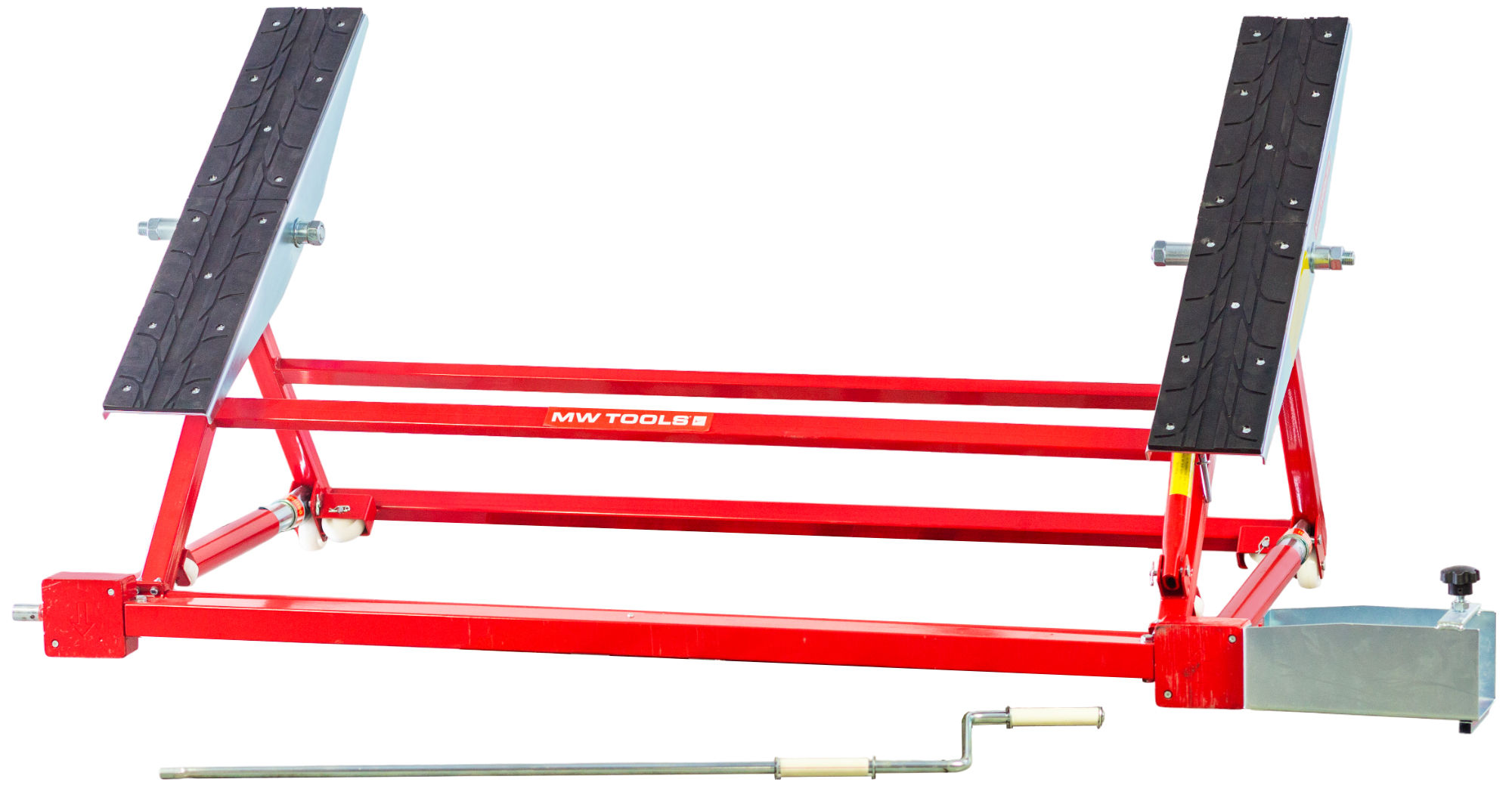

Metal Works MAL1500 Mobile mechanical car lift 1500kg 570mm
Special Features
- Minimum height: 115 mm
- Maximum height: 570 mm
- Support surface dimensions: 800 x 140 mm
- Mechanical operation by hand (included crank handle), or with power tools (included adapter bit)
- Lifting time with power tool: 30 seconds
- 2 rubber anti-slip support surfaces
- Width of support points adjustable between 1500-1630mm (external) and 1132-1262 (internal), depending on the vehicle's chassis width
- (Optional) axle stands can be used under the lifted vehicle, with a maximum height of 650 to 115 mm, depending on the length and type of vehicle
- Double gearbox with operation in both directions
- Manual fall protection with locking pin on both sides
- 3 transport wheels Ø 50mm, with which the lift is rolled under the car
- Weight: 58kg
- Note: this lift is designed for use on flat and stable surfaces
Advantages
- Mechanical lifting with a power tool or the lever
- No electricity, compressed air, or hydraulics required. No hoses and cables in the way.
- Suitable for indoor and outdoor use
- Low profile of only 115 mm
- Lifting height 570 mm
- Freely tiltable. The front and rear of the vehicle are easily accessible
- Adjustable carrying width: 1500 - 1630mm
- The lift is light and portable: only 58 kg
- Compact and flat design, fits in a van
- Can be stored vertically against a wall
Technical data
- Capacity t 1.5
- Maximum height mm 570
- Minimum height mm 115
- Capacity kg 1500
- Lifting time s 30
- Lowering time s 30
- Weight kg 58.00
- Dimensions (lxwxh) mm 1550x1285 x150
Scope of delivery
- Holder with locking screw and 2 adapter bits, for operation with power tools (not included)
- Steel rotary handle 1370mm for manual operation.
- 2 locking pins
Please note! For this item, additional handling fees will be charged by the carrier on top of the already calculated shipping costs. The amount may vary by region or country. You can request the handling fees in advance via our sales department.
