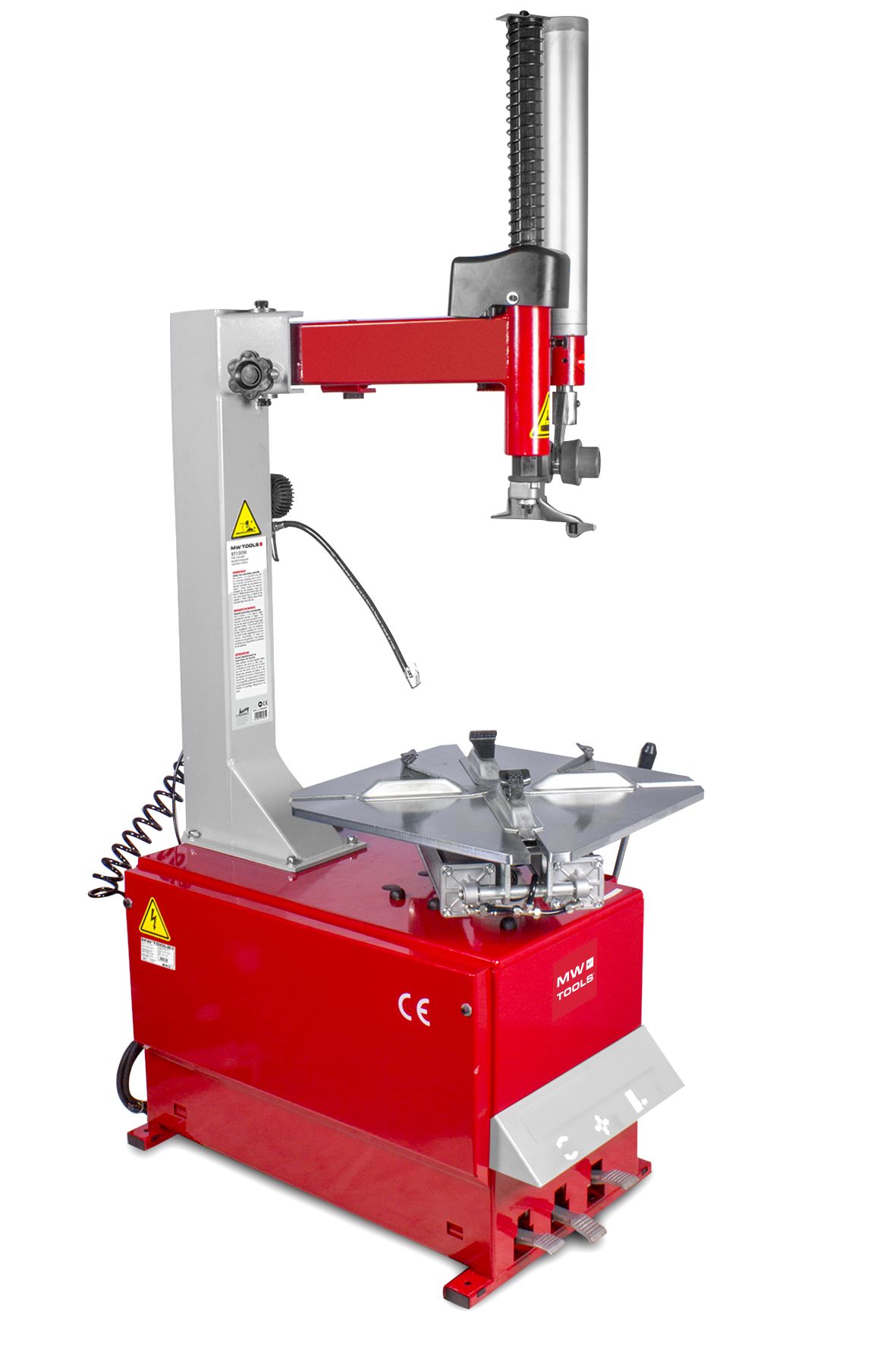

Metal Works BT200 Tire Changer with Auxiliary Arm 3X400V 24"
Special Features
- Tyre mounting machine with auxiliary arm, for car and motorcycle tires.
- Voltage 3x400V
- Rim diameter 10" to 24"

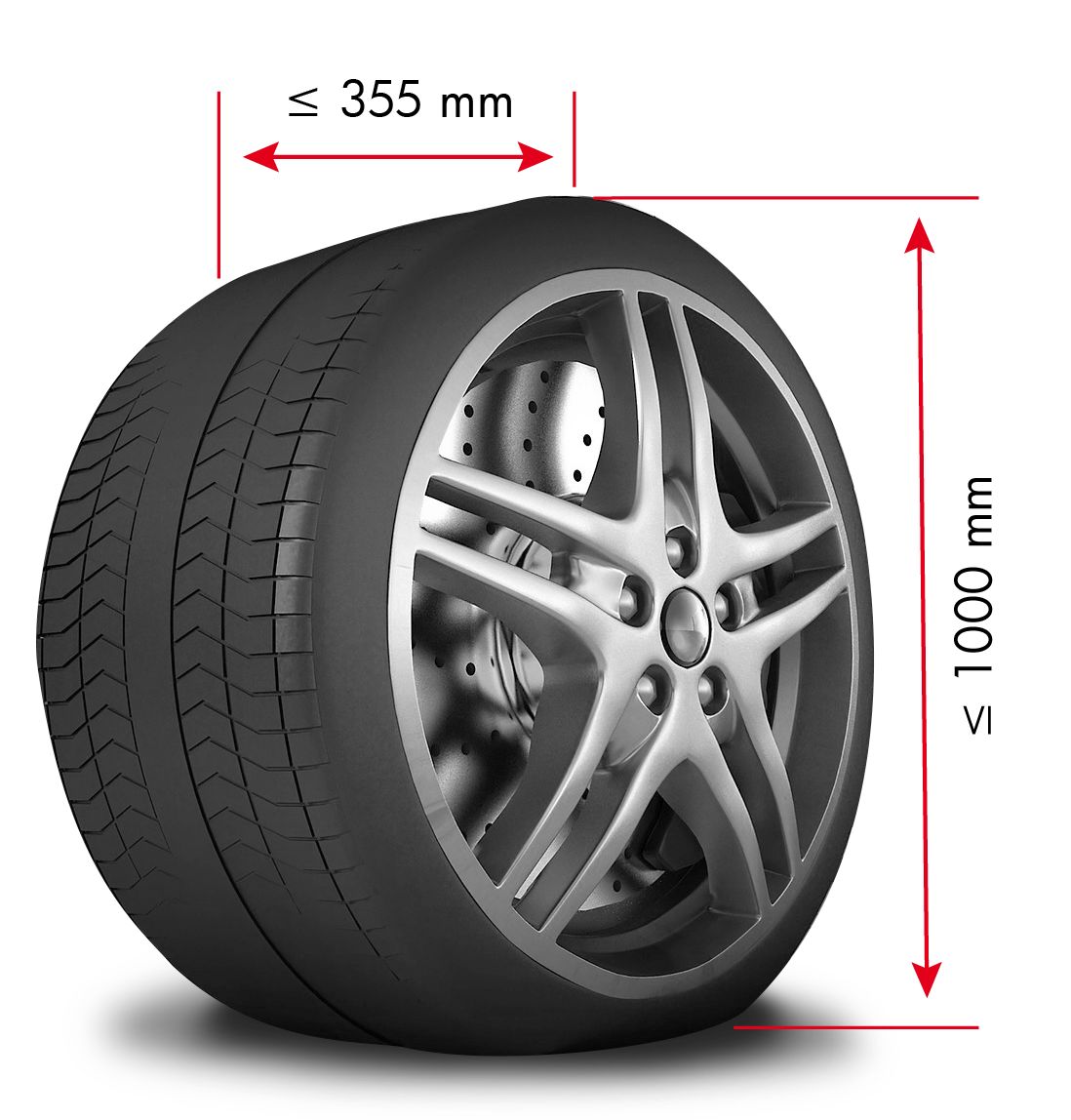

- Tyre thickness up to 355mm
- Tyre diameter up to 1040mm

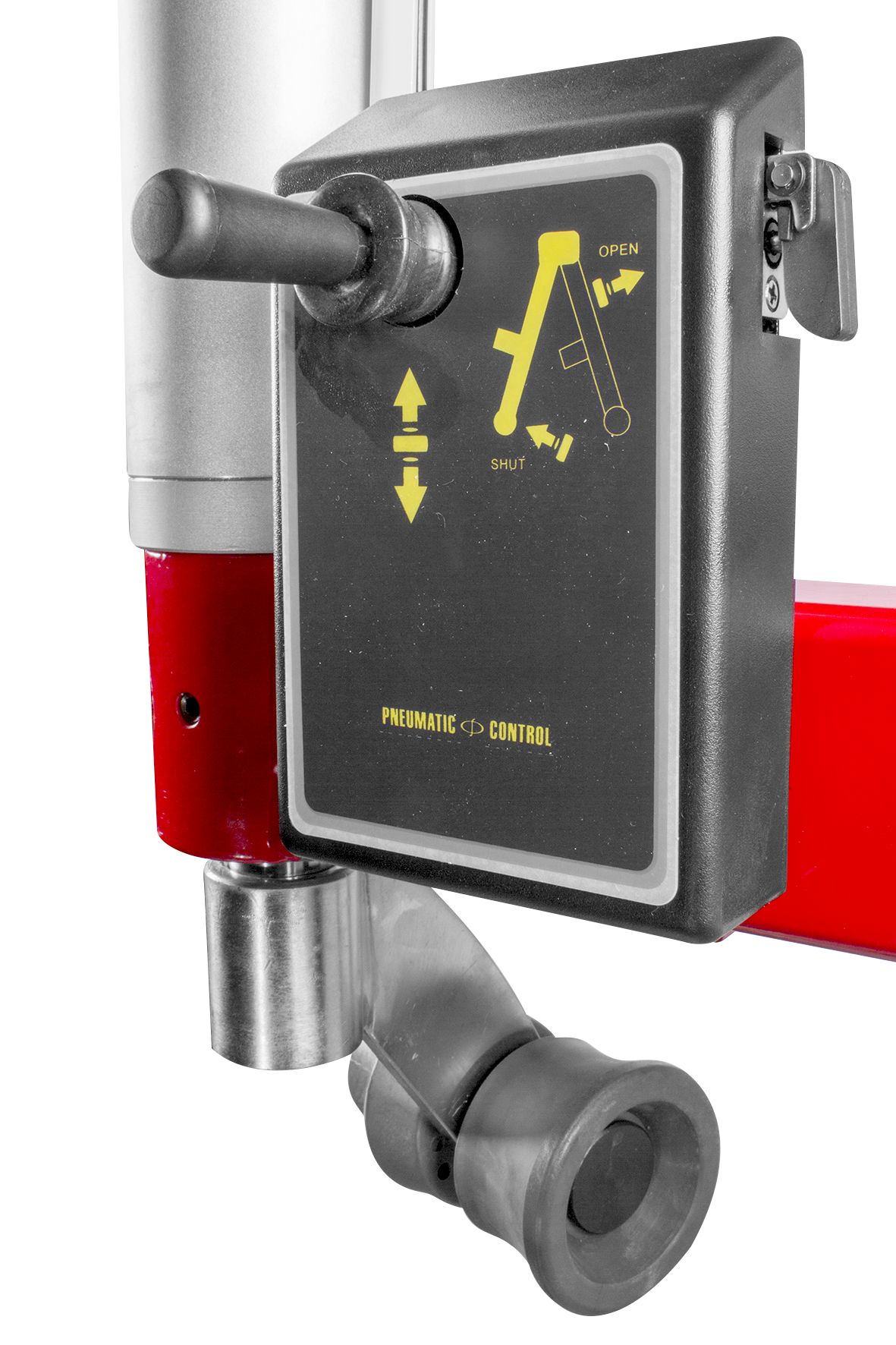

- Pneumatic clamping of the mounting/dismounting arm, for effortless and precise positioning
- Pneumatic auxiliary arm for easier mounting or dismounting
- Mounting head for both standard and low-profile tires
- 3 foot pedals for mounting arm, clamping table, and wheel press
- Wheel press with lever adjustable in 4 directions
- Aluminum clamping table up to 24" with cast iron claws
- Internal or external clamping
Technical data
- Swing arm pneumatic clamping
- Clamping table inch 10-24
- Internal clamping inch 12-24
- External clamping inch 10-21
- Maximum band diameter mm/" 1040/41
- Maximum belt thickness mm/" 355/14
- Motor capacity kW 0.75
- Voltage V 3x400
- Working pressure bar 8
- Noise level dB(A) 75
- Weight kg 220.00
- Dimensions (lxwxh) mm 960x760 x920
Scope of delivery
- On pallet
- Tyre inflator with digital pressure display
- Pressure regulator with oil mist for long service life
- Protective cover for mounting/dismounting head
- Protective cover for claws
- Nylon pressure rollers for the auxiliary arm
- Protective plate for wheel press
- Tyre removal wrench
- Holder for a pot of tire grease
- Holder for removal wrenches at the front of the frame
