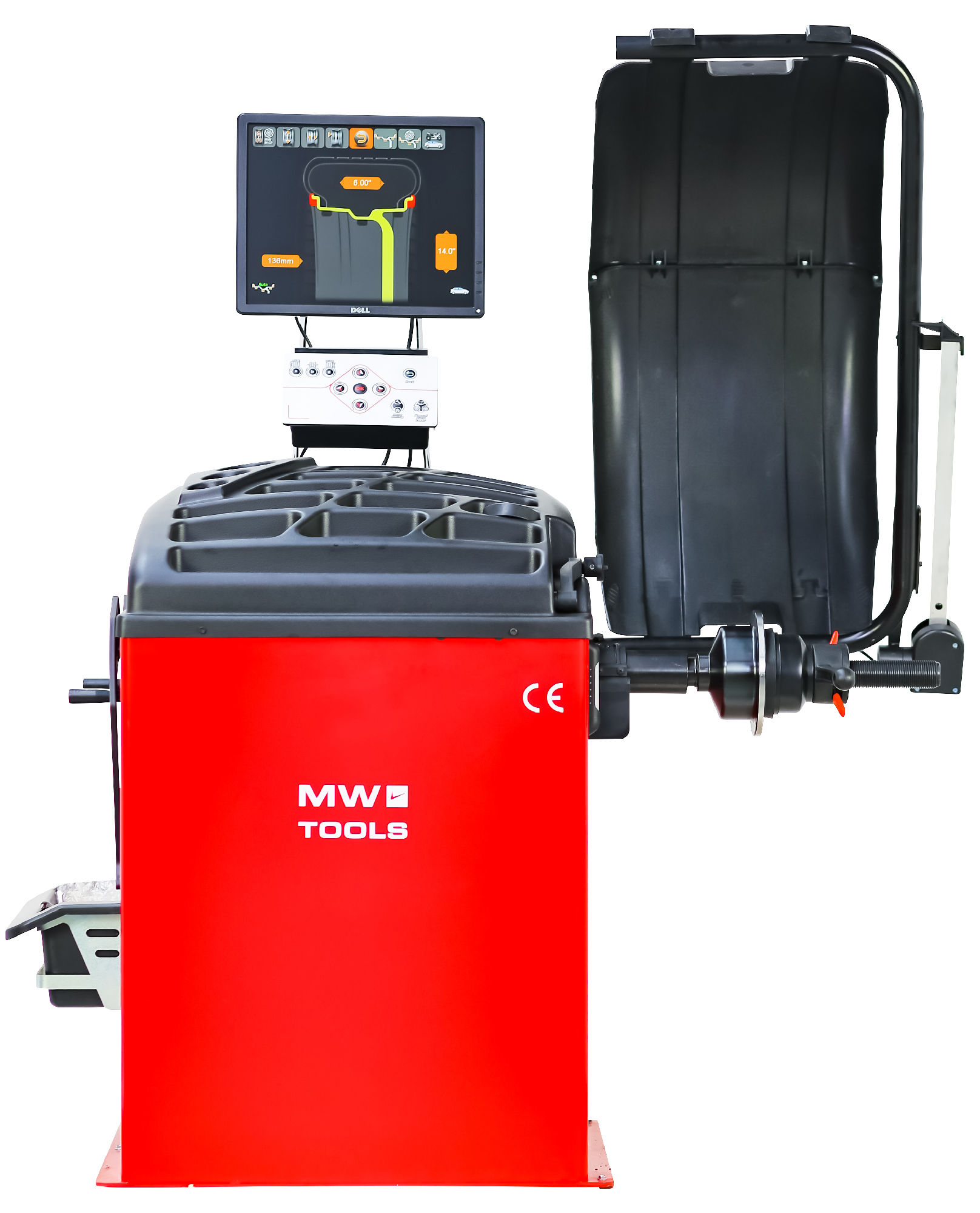

Metal Works BB500 Automatic Tire Balancer 230V Professional Type
Special Features
- Tire balancing machine, professional type 24 inch with full LCD display
- Automatic balancing machine PRO for wheels up to 65 kg and 24 inches, with 9 balancing modes, with automatic calculation of wheel diameter, rim thickness and use of a laser beam and disc brake for very precise application of the weights.
- Clear 17” LCD display, rotatable and position adjustable
- Graphic guidance during the balancing program
- 9 balancing modes for both steel and aluminum rims: Normal, ALU-S1, ALU-S2, ALU-3, ALU-4, ALU-5, ALU-6, ALU-7 and ALU-8. Suitable for both dynamic and static balancing (motorcycle wheels)
- Suitable for rims with a diameter of 10" to 24"
- Suitable for rims with a thickness of 1.5" - 20"
- Automatic calculation of rim width via the built-in sensor on the side of the protective cover
- Very high working precision. The exact positions of the weights are indicated with very high precision on the LCD display. A bright laser beam is activated in ALU-S1 and ALU-S2 modes.
- The disc brake locks the axle at the exact position. In this way, weights are always applied perfectly without deviations.
- Split-weight function for distributing the weights over 2 positions.
- Long net shaft length of 230 mm, for balancing all standard tires as well as wider and special wheels that do not fit on a standard balancing machine.
- Large machine frame ensures good stability and measurement results.
- The maximum load capacity of 65 kg also allows for balancing very heavy and wide tires.
- The machine has a heavy curb weight of 101 kg, which ensures perfect stability during balancing.

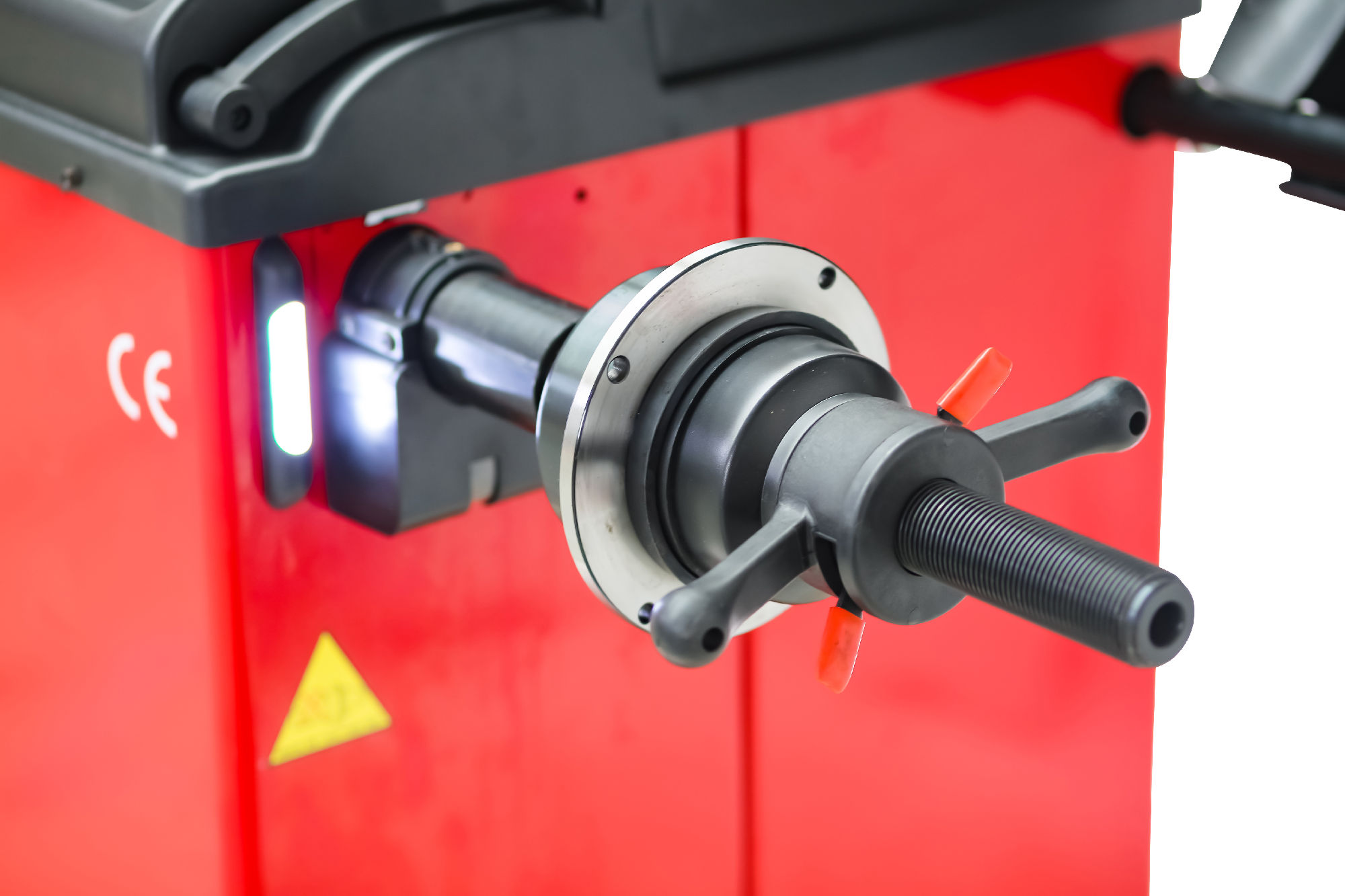

- 40 mm shaft with high-precision sensors, for an accurate measurement result.
- Automatic indication of weight position by turning the wheel.
- Self-calibration and self-diagnosis function.
- Direct indication of depth and position of the weights.
- A large plastic protective cover protects the user while turning the wheel. wheel
Technical data
- Rim diameter mm/" 252-610/10-24
- Rim thickness mm/" 40-510/1.5-20
- Maximum tire weight kg 65
- Maximum cone diameter mm 135
- Balance speed rpm 200
- Precision g 1
- Readout time sec 8
- Motor capacity kW 0.2
- Voltage V 230
- Weight kg 101.00
- Dimensions (lxwxh) mm 960x760 x1250
Scope of delivery
- On pallet
- Set of 4 cones for correctly clamping various types of wheels: 41 - 66 mm, 64 - 86 mm, 84 - 103 mm and 94 - 135 mm
- Wheel weight pliers for applying weights
- Quick-release clamp for clamping the wheels onto the axle
- Rubber cap and spacer ring for clamping cones on the inside
- Rim width gauge
- 100-gram calibration weight
- Set of machine tools for standard machine maintenance
