Metal Works BB205 Automatic Tire Balancer 230V 65kg
Special Features
- Tire balancing machine 5 modes 24 inch with LED display
- Automatic balancing machine for wheels up to 65 kg and rims up to 24 inches for mounting and dismounting most types of tires with steel and aluminum rims up to 24” on cars, vans, minibuses, motorhomes, trailers, …
- Digital LED display with intuitive readout
- 5 balancing modes for both steel and aluminum rims: Normal, ALU-1, ALU-2, ALU-S, Static. Suitable for both static and dynamic balancing
- Suitable for rims with a diameter of 10" to 24" (252-610 mm)
- Suitable for rims with a thickness of 1.5" to 20" (40-510 mm)
- The maximum load capacity of 65 kg also allows for balancing wide tires
- Works with all wheel weights (adhesive weights and hammer-in weights) for both steel and aluminum rims
- Automatically determines wheel diameter and distance using a measuring sensor
- Automatically indicates weight position, manual positioning
- Directly indicates depth and position of weights
- Split-weight function for distributing weights over 2 positions, and hiding weights in less visible places, e.g. near spokes
- OPT function to add as little weight as possible, and adjust the tire to the imbalance condition over different to distribute positions.
- Net shaft length of 180mm, for balancing all standard tires as well as wider and special wheels that do not fit on a standard balancing machine.
- 36mm shaft with high-precision sensors, for an accurate measurement result
- Self-calibration and self-diagnosis function
- A large plastic protective cover protects the user while the wheel is rotating
- Low noise level, only 70 decibels
- Operating temperature: 5-50°C
Technical data
- Diameter min.-max. mm 10-24
- Minimum rim thickness mm 40
- Maximum rim thickness mm 510
- Maximum tire weight kg 65
- Maximum cone diameter mm 135
- Balance speed rpm 200
- Precision g 1
- Readout time sec 8
- Motor capacity kW 0.2
- Voltage V 230
- Weight kg 98.00
- Dimensions (lxwxh) mm 960x760 x1250
Scope of delivery
- On pallet

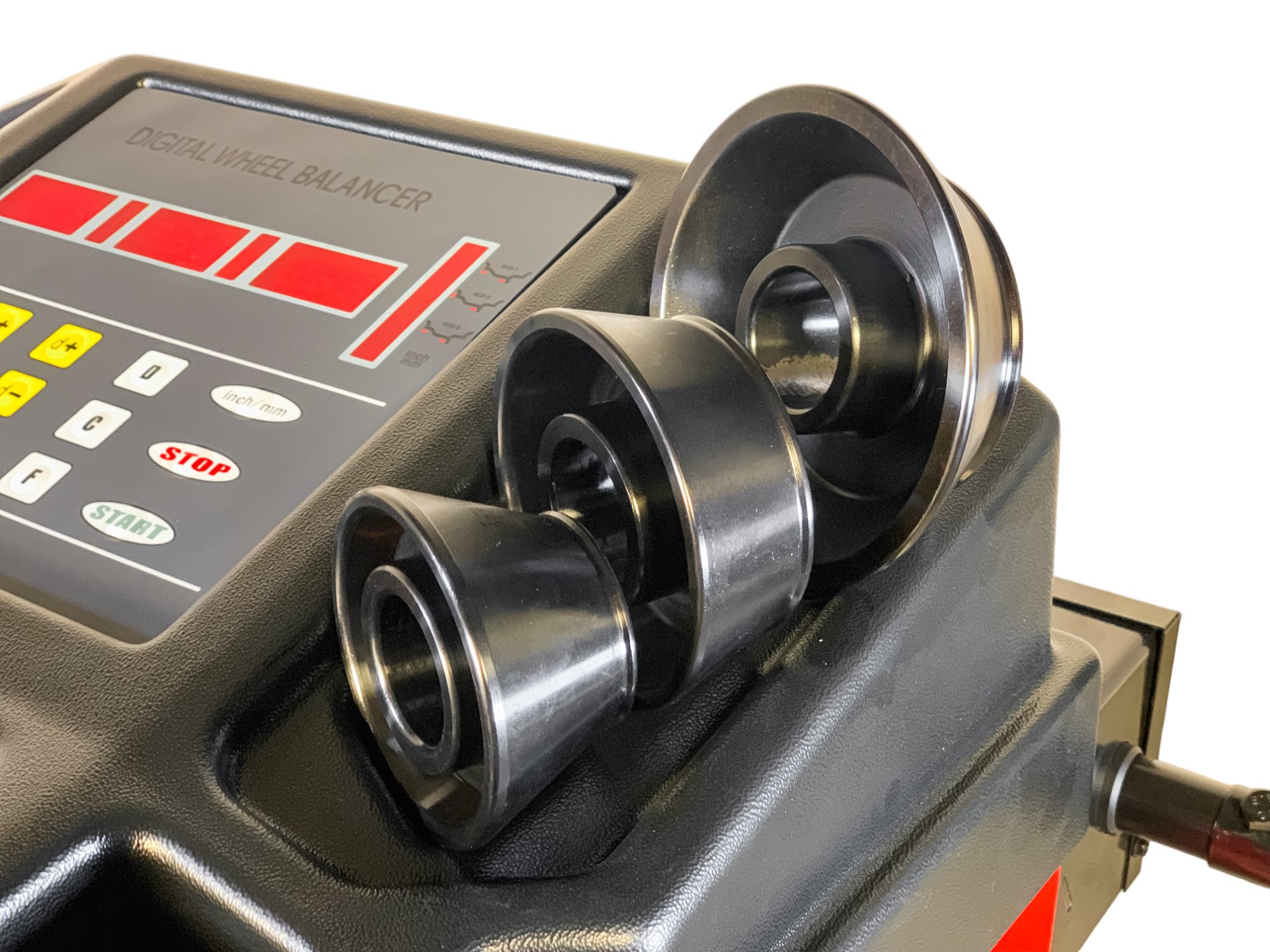

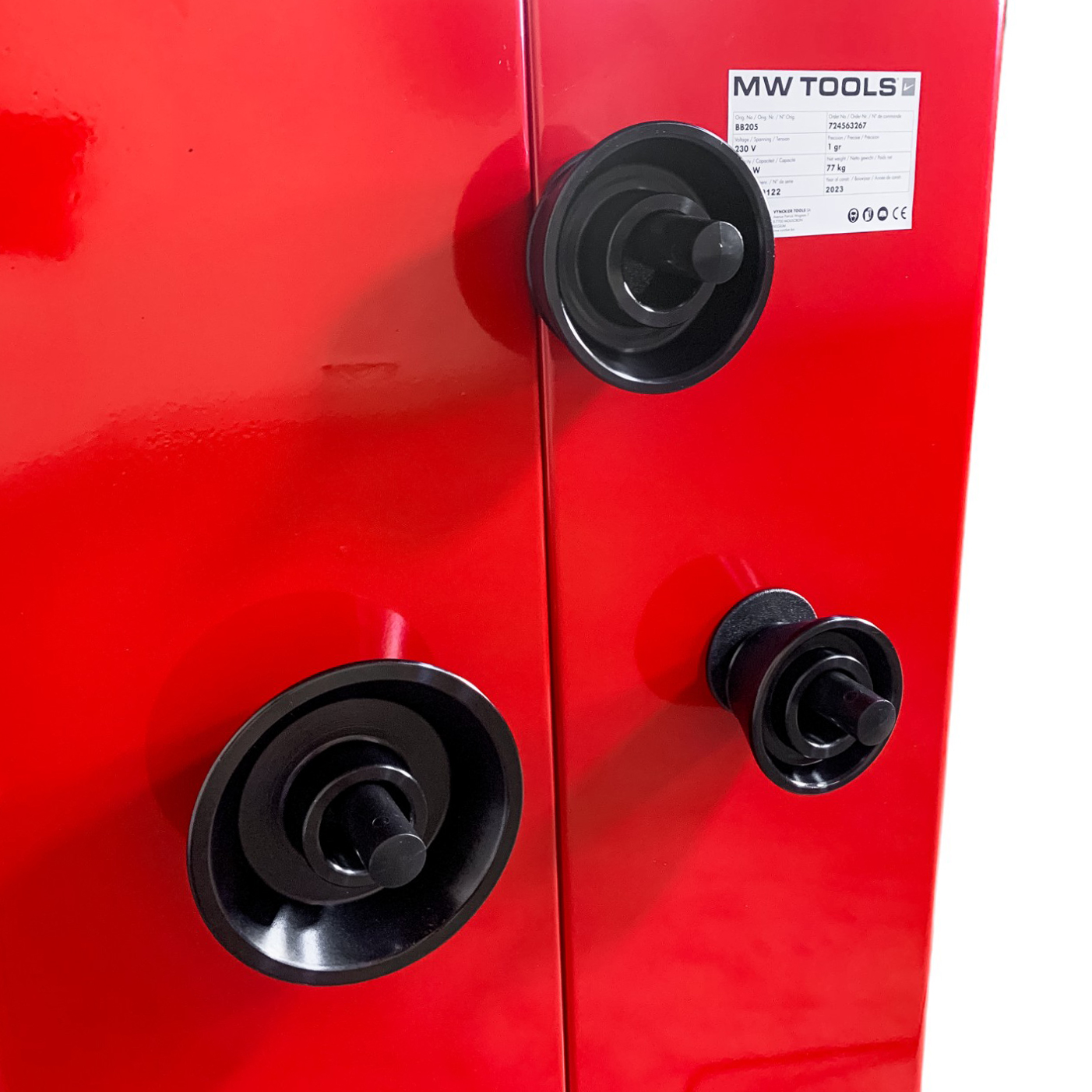

- Set of 4 cones for correctly clamping various types of wheels
- 41 - 66 mm small cone
- 64 - 86 mm medium small cone
- 84 - 103 mm medium cone
- 94 - 135 mm large cone
- Rubber cap and spacer ring for clamping cones from the inside

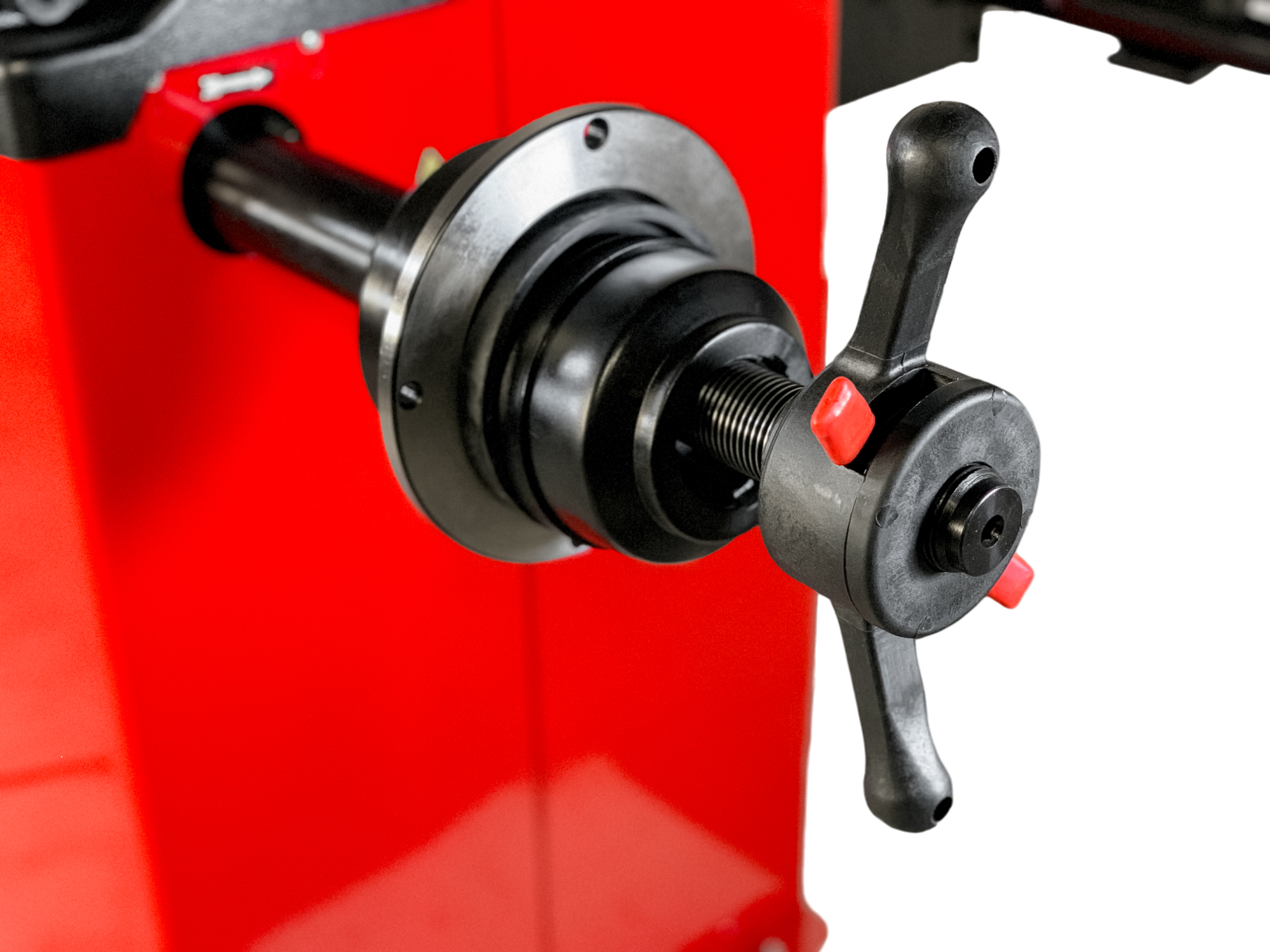

- Quick-release clamp for clamping the wheels onto the axle
- 100-gram calibration weight
- Rim width gauge
- Wheel weight pliers for applying weights
- Set of machine tools for standard machine maintenance
