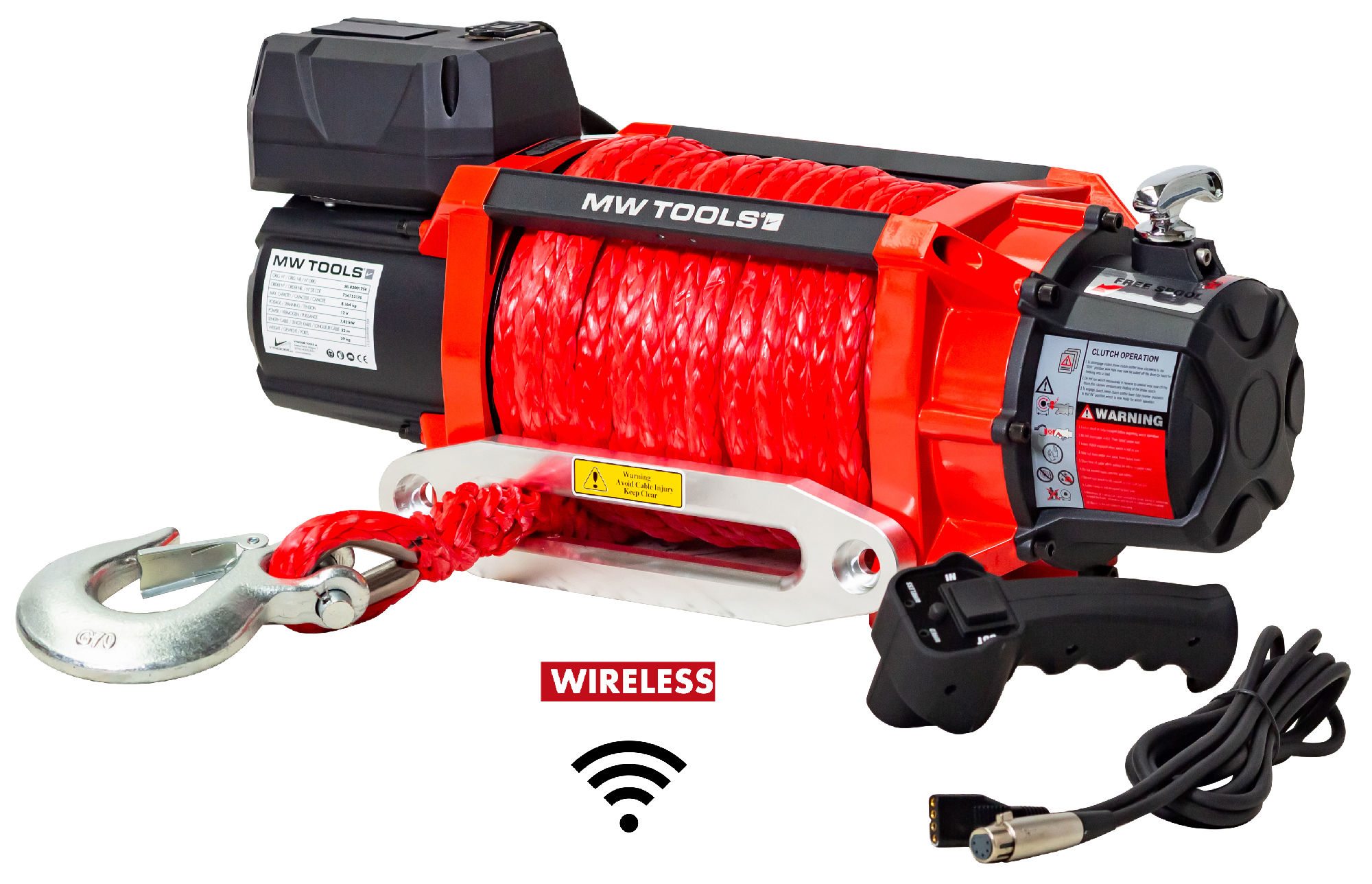

Metal Works SEL820012SR Winch 12V 8164 kg 22m synthetic cable wireless remote control
Features
- Electric Winch 12V 8.16 tons, with synthetic cable and 4.95kW motor, suitable for roadside assistance applications, on tow trucks, trucks, off-road vehicles, boats, yachts, sports vehicles, ATVs, etc.
- Very lightweight, 80% lighter than steel cable
- Manual unwinding of the cable is effortless
- No risk of cable slipping if it breaks under tension; This plastic cable does not store energy, unlike steel cables which can cause serious injuries and damage.
- Safe handling of the cable without the risk of steel splinters or burrs.
- 30% higher breaking strength compared to steel cable.
- The cable has no 'memory', so no kinks can form in the cable.
Advantages
- High winding and unwinding speed.
- Wireless remote control with a range of 18 meters.
- High capacity of 8164 kg, making it suitable for heavy vehicles such as vans, tractors, buses, etc.
- IP68 waterproof rating, perfect for all rough driving and terrain conditions.
- Automatic mechanical brake in the drum.
- Technical data
- Capacity kg 8164
- Voltage V 12
- Wireless Yes
- Power kW 4.75
- Gear ratio 432:1
- Idle wheel Yes
- Mechanical brake
- Cable type
- Synthetic
- Cable diameter mm 14
- Cable length m 22
- Drum diameter mm 89
- Drum length mm 228.3
- Remote control Yes
- Speed - Required Amperes at load 0 kg m/min - A 7.3-75
- Speed - Required Amperes at load 1633 kg m/min - A 3.31-155
- Speed - Required Amperes at load 3266 kg m/min - A 2.44-206
- Speed - Required Amperes at load 4899 kg m/min - A 1.55-308
- Speed - Required Amperes at load 6531 kg m/min - A 1.25-384
- Speed - Required Amperes at load 8181 kg m/min - A 0.93-501
- Power W 4.95
- Protection class IP 68
- Weight kg 39.00
- Dimensions (lxwxh) mm 582x204x288
Scope of delivery
- In box
