Metal Works TZ4T36 TIN table saw 4 kW 400V worm gear saw unit TiN workbench
Special Features
- The TZ4T36 saw is designed for the highest levels of quality, functionality, and ease of use. Attention to detail guarantees carpenters years of reliable and stable work in the workshop.
- The extra-deep, ground cast iron table for safer wood sawing, the miter fence with compass, and the fence that can be set in the high or low position are just a few of the top features of this new table circular saw with innovative qualities.
- TiN coated workbench: The entire top layer of the cast iron workbench has been given a permanent PVD coating of Titanium Nitride (TiN); this helps excellently against rust formation and reduces friction.
- COMPASS MG-36 miter fence: Thanks to the unique structure of the MG-36, the angle can be set accurately to within 1/20th of a degree. Each part of the housing and the miter stop is made of aircraft-grade T-6 aluminum alloy and hardened steel, and subsequently CNC machined to the millimeter without any shaping procedure. Each aluminum component is anodized to a beautiful color and finish. The stop is tiltable and can be finely adjusted. It can be operated with one hand, and all scales are laser-marked. The marked stops are -60°, -45°, -22.5°, 0°, +22.5°, +45°, +60°.

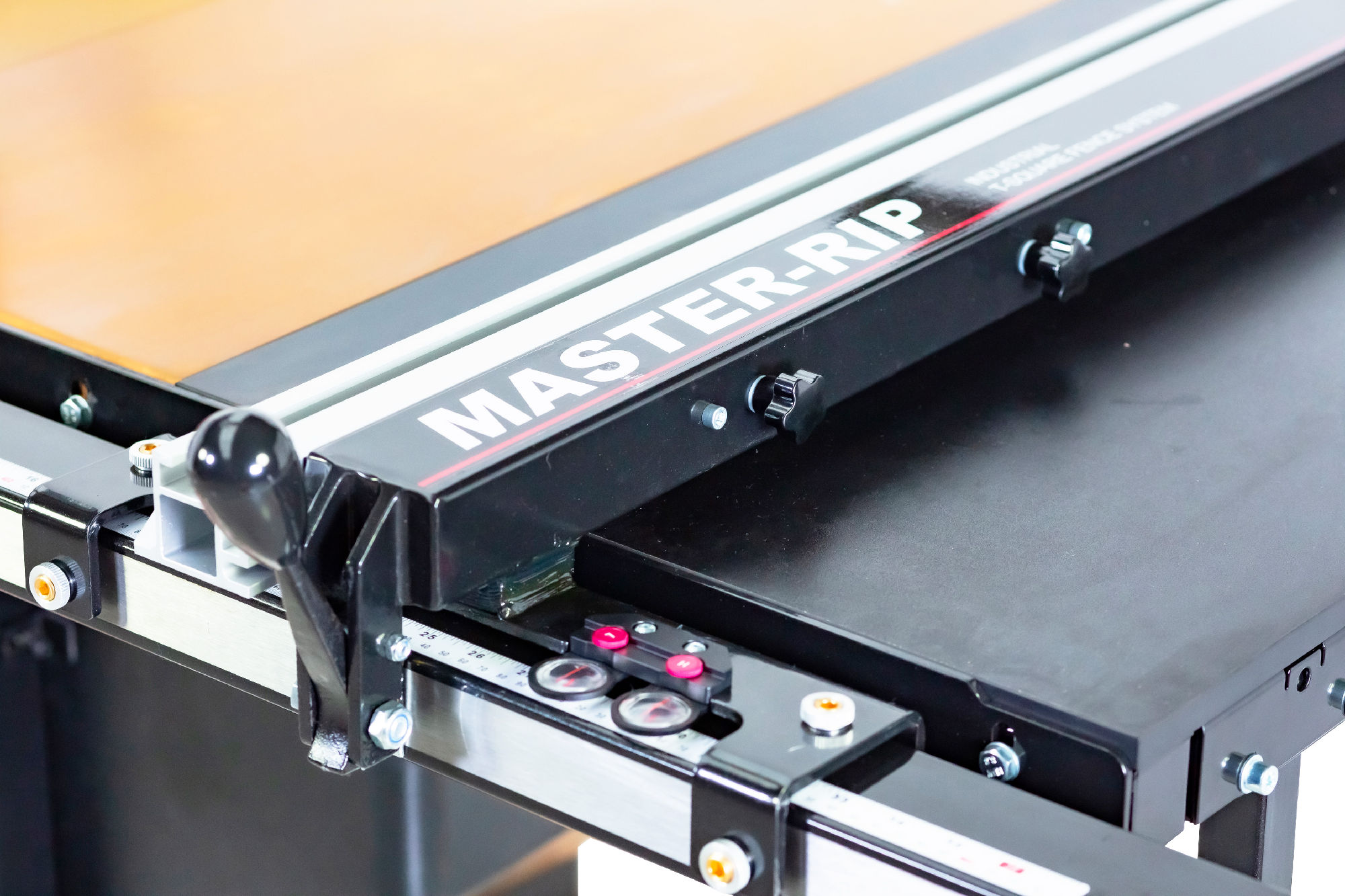

- Heavy-duty T-slot guide system: The guide system moves freely and smoothly. The parallel stop can be placed in a forward or backward position. The rear position is convenient for many cutting and cross-cutting operations. The longitudinal cutting width can be easily read using the independent dual magnification scales. With the high and low stop positions, the operator can adjust the height of the stop to the workpiece for safer operation.
- Worm wheel: Both the height and the tilt of the circular saw blade are controlled by a worm wheel. By operating the height or tilt wheel, the worm rotates the saw unit and drives the spindle mechanism. It is the saw blade and the splitter knife that tilt or move upwards together. This mechanism ensures that the position of the blade is always correct and precise.

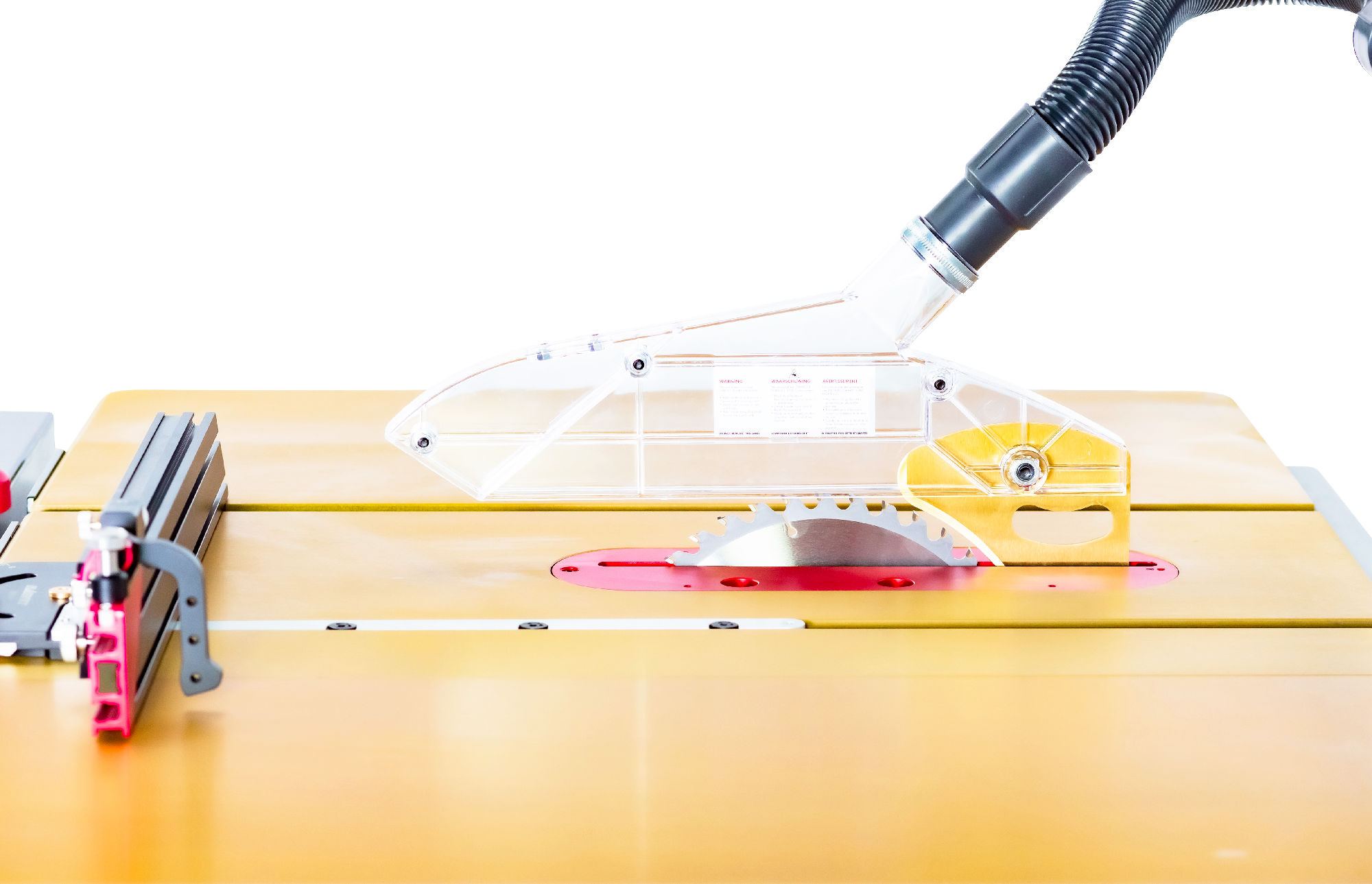

- Innovative, guiding saw blade guard: The special transparent saw blade guard offers a clear view for aligning the saw blade with the intended cutting line. The two side guards automatically adjust to the thickness of the moving workpiece. The aerodynamically optimized saw blade guard improves dust collection efficiency.
Benefits
- Powerful 4kW motor 3x400V
- Extra deep, precision-ground cast iron table, 800 mm, TiN-coated
- Unique COMPASS miter stop
- Patented quick-change system allowing you to change the saw guard and splitter knife in seconds without removing the table insert
- Robust T-slot saw guide with dual position, high and low
- Transparent saw guard with optimized protection
- Blade tiltable via worm gear, mounted directly on the cast iron housing
- Integrated dust collection system
Technical data
- Voltage V 400
- Power kW 4
- Motor type TEFC induction motor
- Saw blade diameter mm 250
- Sawing capacity 45° mm 55
- Sawing capacity 90° mm 79
- Max. cutting width stop mm 914
- Max. cutting width without stop mm 0 ~ 45° left
- Dimensions Work table (LxW) mm 800x755 (thickness 30 mm)
- Working height mm 860
- Extraction diameter mm 100
- Weight kg 264.00
- Dimensions (LxWxH) mm 1752x1120 x1220
Scope of delivery
- Circular saw blade dia. 250x30 mm with 40 ATB carbide teeth
- COMPASS miter stop
- Side and rear extension tables
- Installation and operating manual in Dutch, markings, CE marking and CE certificate in accordance with the Machinery Directive 2006/42/EC and EMC Directive 2014/30/EC
