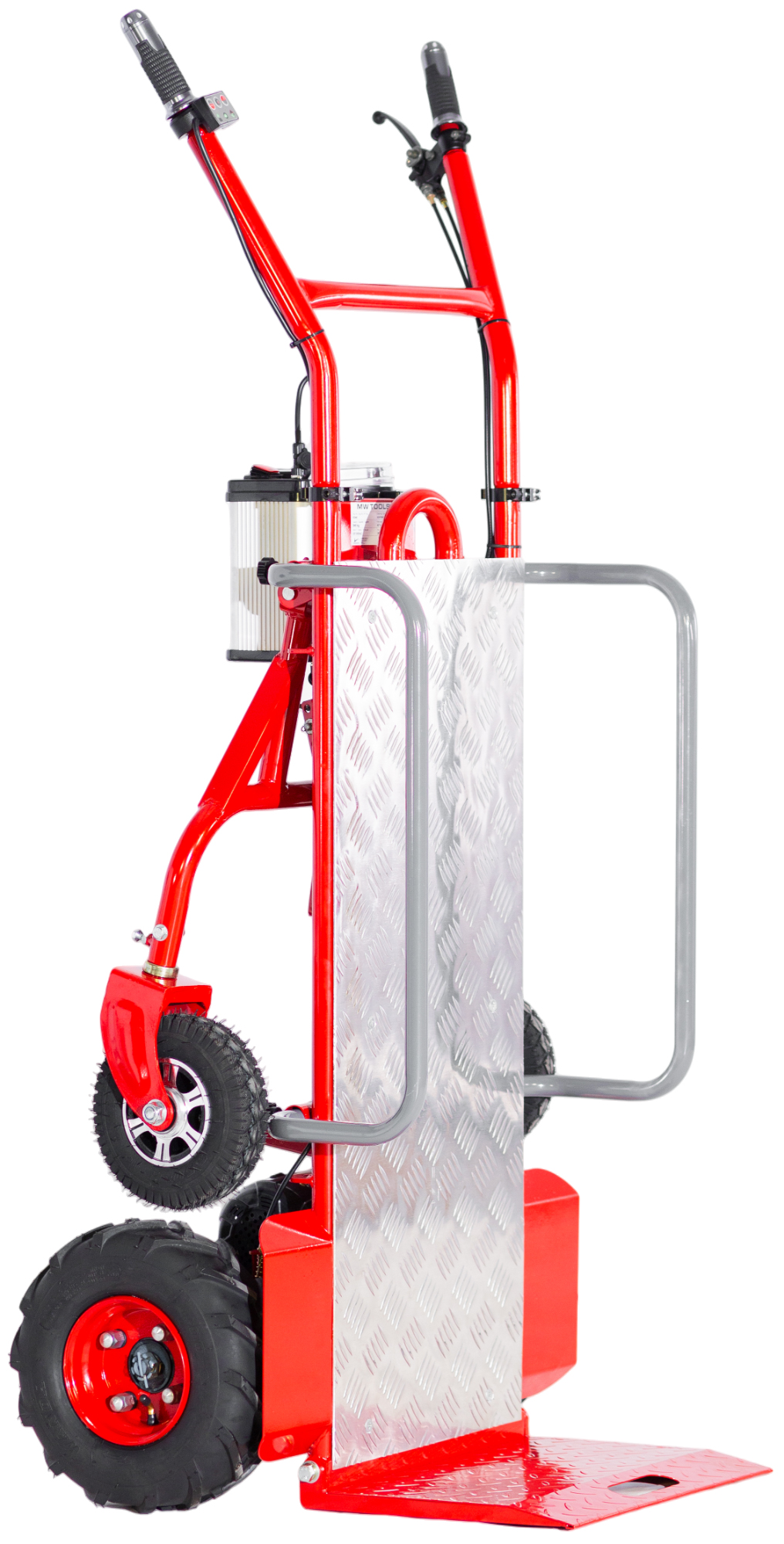

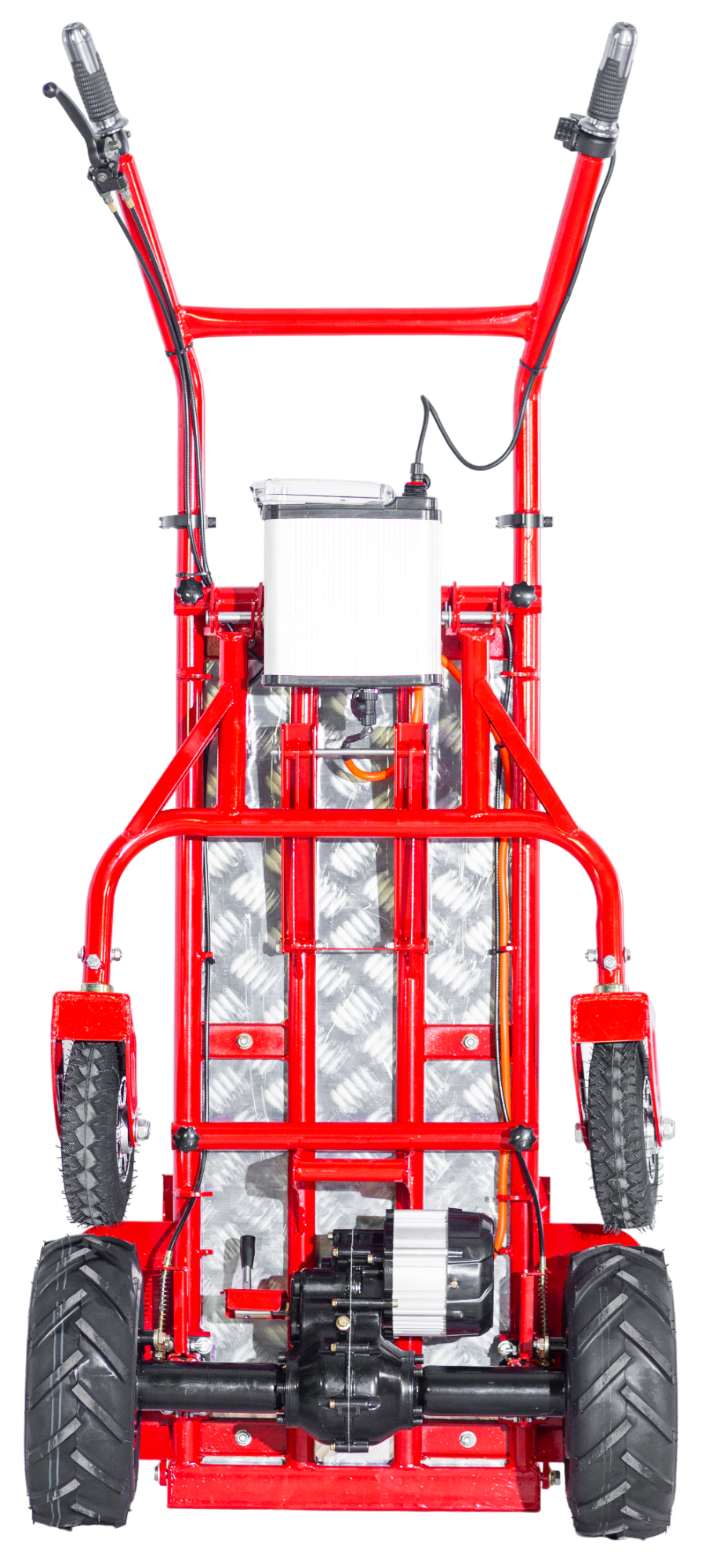

Metal Works ES260 Electric Hand Truck 260 kg
Special Features
- Electric hand truck with a capacity of 260 kg.
- All-round motorized transport trolley with rechargeable lithium battery, for transporting heavy boxes, crates, appliances, household electronics, bouncy castles, car tires, garden furniture, etc.
- Stable and comfortable driving characteristics increase safety thanks to the fold-out rear wheels, side supports, and electronic braking function.
- Capacity of 260 kg, on level ground, incline 0°
- Capacity 150 kg on level ground, incline 12°
- Front axle with differential for smooth cornering and tight turns on the spot
- Dual brake function with selector switch 100% or 30% Brakes
- 100% braking function: the hand truck brakes completely when the handle is released. Handy in situations where the load needs to be held stationary on a slope.
- 30% down-hill braking function: the trolley brakes partially; this is especially recommended when driving down slopes, ramps, etc., so that the load can be transported in a controlled and safe manner, without the risk of excessive speed.

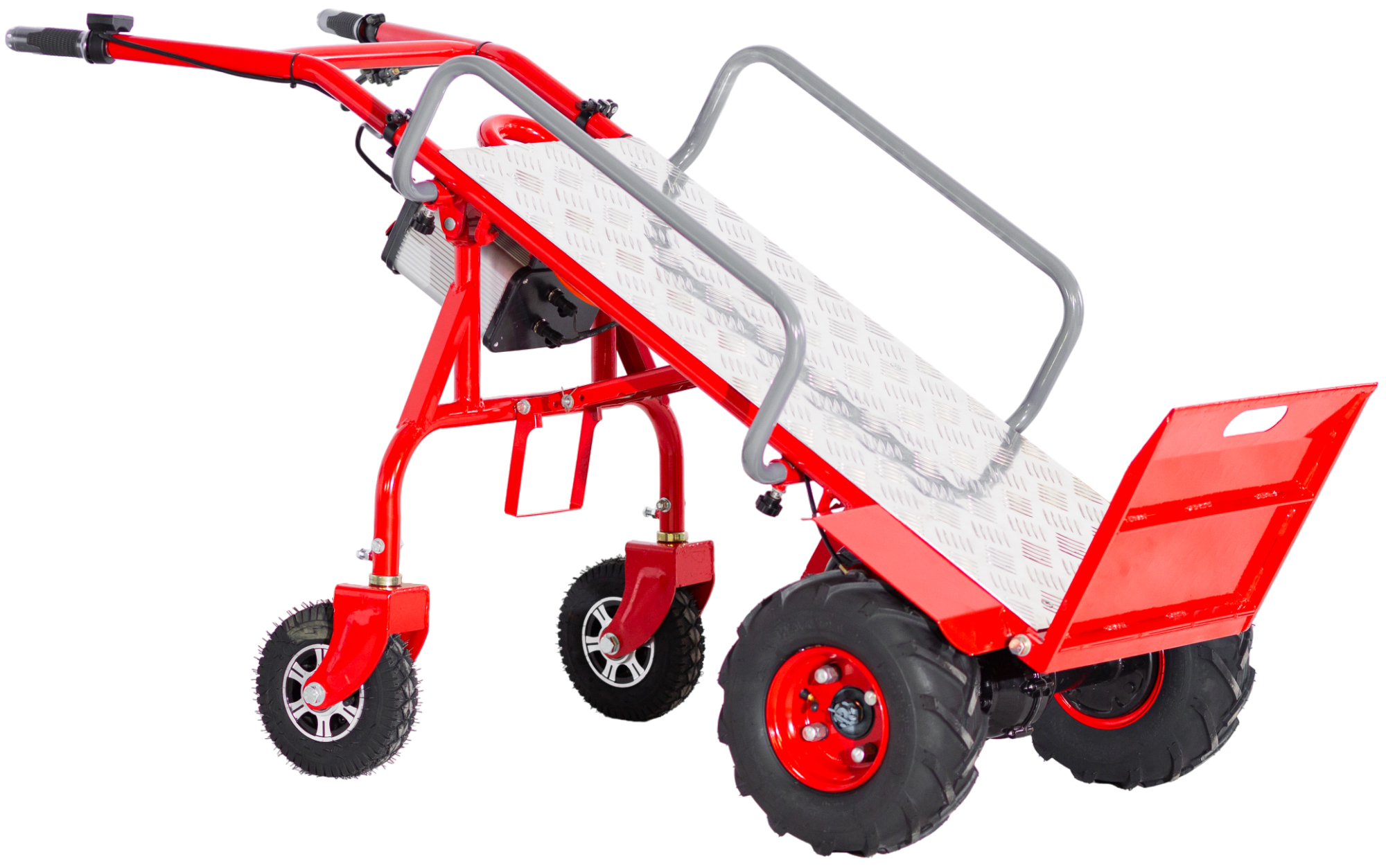

- Foldable steel base plate of 440 x 320 mm, with anti-slip checkered profile and handle for lifting the hand truck.
- 6 hooks on the red steel frame for securing the load.
- With a width of only 676 mm, the trolley can easily pass through exterior and interior doors and past other obstacles in the workplace.
- Transport dimensions of 676 x 368 x 1647 mm. The carrying platform is then folded down and the side supports removed.
- Front wheels: 2 profiled rubber pneumatic tires 13 x 5.00-6, suitable for transport on uneven and difficult surfaces, such as grass, gravel, dirt roads, uneven paving stones, etc.
- Rear wheels: 2 rubber pneumatic tires 8 x 2.5 - 4, 360° rotatable
- Battery housing splash-proof IP64
- Brushless DC electric motor 350 W with permanent magnet
Advantages
- Load capacity of 260 kg
- Variable forward and reverse speed, adjustable via the handle
- Durable aluminum backplate with tear-pattern anti-slip tread
- Automatically unfolding rear wheels ensure very comfortable driving characteristics with little effort, and increase stability and safety significant

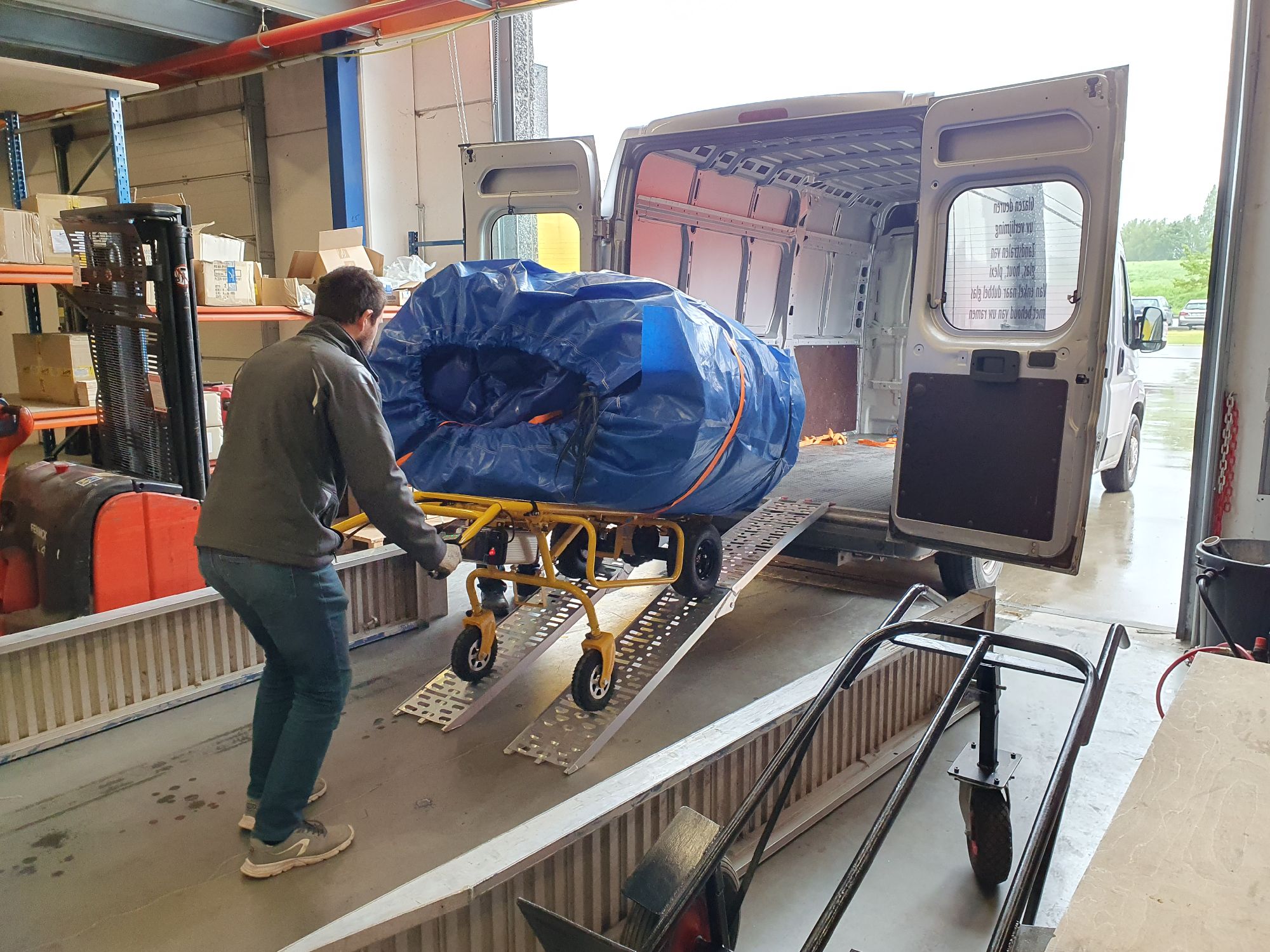

- Electric brake with ensures safe descent of ramps and loading platforms when loading trailers or vans
- Replaceable lithium battery 40 V / 6 Ah / 240 Wh. An extra battery is available as an option and can further extend the operating autonomy.
- Autonomy of 1.9 hours at full capacity, 2.5 hours at half capacity, and 5 hours without charge.
- Autonomy of 1.5 hours at maximum incline and full capacity.
- Manual release lever allows the hand truck's drive to be disengaged so that it can be moved by hand.
- Suitable for upward slopes up to 12°, such as ramps, access ramps, uphill roads, uneven terrain, etc.
- Short turning radius of 1.5 m with rear wheels extended; this allows you to maneuver in small spaces and aisles and to load/unload heavy and large loads.
- 2 extendable steel brackets with a width of 600 – 800 mm provide lateral support to the load and prevent shifting. The supports can be removed when transporting oversized loads. goods
Technical data
- Capacity kg 260
- Table dimensions mm 440x320
- Tube dimensions mm 25x2
- Tire diameter mm 330
- Motor type Electric
- Weight kg 47.00
- Dimensions (lxwxh) mm 640x640 x1670
Scope of delivery
- Lithium-ion battery 40 V with capacity 6 Ah
- Battery charger 230 V
- Set of side support brackets
