Nedo Sirius 1 HV Rotary Laser
*new model - replaces the 471940, now incl. metal staff clamp*
The fully automatic horizontal/vertical laser for the smart professional. Ideal for setting out and staking work in interior construction, high-rise buildings, and civil engineering. Optimal functionality, complete equipment, and an attractive price/performance ratio
Features SIRIUS1 HV
- Fully automatic horizontal/vertical laser for interior construction and outdoor use
- High-power laser diode (laser class 3R) for good visibility of the laser beam.
- Automatic height monitoring stops the laser in case of strong vibrations.
- Height errors are thereby prevented.
- Plumb beam upwards and downwards
- Manual tilting in 2 axes Scan function and point mode
- Robust, water-jet protected housing IP 65
- Rotor protection made of die-cast aluminum and shatterproof glass.
- NiMH high-performance batteries for a long service life
- Remote control for convenient handling
Technical data laser
- Self-leveling range: ± 5° motorized with automatic monitoring
- Tolerance: ± 1 mm/10 m
- Laser: Laser class 3R, 635 nm, < 5 mW or < 1 mW laser class 2, 635 nm
- Rotation speed: 0, 60, 120, 300 and 600 rpm
- Scan angle: 0°, 6°, 20°, 50° and 90°
- Power supply: Battery set NiMH 4.8 V, 3800 mAh
- Operating time: approx. 30 h
- Weight: 2.3 kg Dimensions: (width/lower/height) 150 mm x 200 mm x 190 mm
- Operating temperature: -20°C to + 50°C
- Range: Ø approx. 300 m with receiver IP rating: IP 65

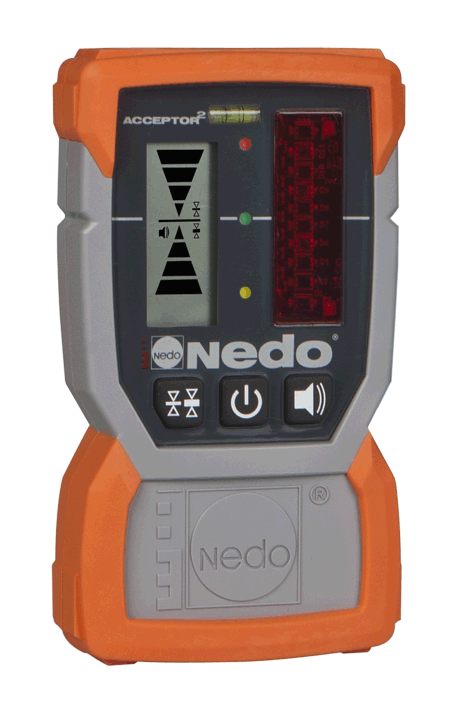

Technical data ACCEPTOR 1
- Coarse/fine accuracy: switchable, ± 1.5 mm / ± 3.0 mm
- Power supply: 1 x 9 V block battery
- Detection field length: 40 mm
- Display: LCD display on front and back
Technical data remote control
- Range: 25 m
- Power supply: 2 x 1.5 V type AAA
- Weight: 70 g (with batteries)
- Dimensions: 46 mm x 24 mm x 111 mm
Standard included
- Sirius1 HV Rotary Laser
- ACCEPTOR1 Laser Receiver
- Remote Control
- Batteries and Charger
- Robust Case
