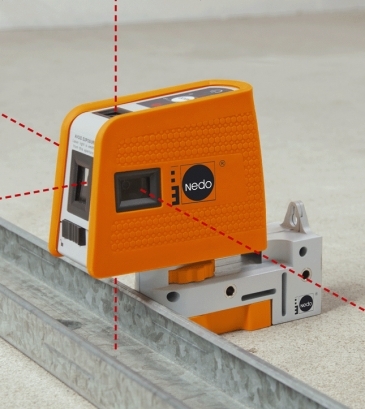

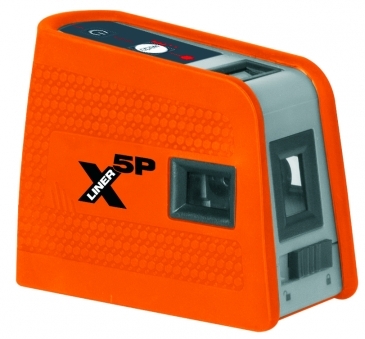

Nedo X-liner 5-point laser
Generates three horizontal and two vertical laser points: front, left, right, top, and bottom. The laser points are positioned exactly perpendicular to each other. The horizontal laser points are all at the same height. Ideal for quick leveling, setting out, plumbing, and transferring right angles.
Special features
- 5 highly visible, precisely perpendicularly aligned laser points
- Self-leveling
- Robust pendulum with magnetic damping
- Universal adapter with strong magnet, 1/4“ and 5/8“ threaded connections
Applications:
- Steel structures and interior construction
- Plumbing Steel structures and interior construction
- Electrical installation work
- Plumbing work
Technical data
- Tolerance: ± 0.3 mm/m
- Self-leveling range: ± 4°
- Range: 30 m
- Laser laser class : 2M / 635 nm
- Power supply : 2 x 1.5 V type AA
- Operating time : approx. 33 h
Standard accessories included
- X-Liner5P point laser
- Target plate
- Universal adapter with strong magnet, 1/4“ and 5/8“ threaded connections
- Mounting strap
- Carrying bag
