Nedo Primus2 H Construction Laser
Nedo Primus2 is the new series of fully automatic rotary lasers for professionals on the construction site. Ideal for setting out, staking out, and checking slopes. Reliable and robust for rough use on the construction site. Uncompromising quality for professionals. The high-power laser diode with laser class 3R guarantees optimal visibility of the laser beam at all times, even in poor light. The new Primus2 series pushes the boundaries for fully automatic rotary lasers. The Primus2 series rotary lasers are extremely accurate under all operating conditions: during prolonged rain, in severe cold, or in scorching heat. Always when it matters most.
Features
- The rotary lasers of the Primus2 series are water- and dustproof according to IP 66 rated and operate reliably even under extremely heavy operating conditions.
- After use, the Primus2 can even be sprayed down and cleaned with a water hose.
- High-quality NiMH batteries with Eneloop™ technology guarantee an extremely long lifespan of more than 100 hours and minimal self-discharge.
- The smart power holder allows for quick switching between using rechargeable batteries and batteries, and vice versa.
- Had enough of cumbersome handling? Then you will be enthusiastic about the simple, intuitive operation of the new rotary lasers.
- The operating mode, rotation speed, battery status, and, for the H2N and HVA2N, the tilt in the X- and Y-axes are clearly displayed on the LCD screen.
- Fully automatic rotary laser for horizontal applications
- Robust, motorized leveling
- Large, clear display for showing rotation speed, charge status, etc.
- High-power laser beam is clearly visible for uncomplicated work at short distances. Automatic height monitoring stops the laser in case of strong vibrations. Errors are thus prevented.
- Extremely simple operation
- Robust rotor protection
- Laser receiver ACCEPTORpro
- Extremely accurate under all operating conditions
Technical data Primus2 H
- Self-leveling range: ± 5° motorized with automatic monitoring
- Tolerance: ± 0.5 mm/10 m
- Laser class: 3R, 635 nm, < 5 mW
- Rotation speed: 600 rpm
- Power supply: NiMH 4.8 V, 7000 mAh battery set
- Operating time: approx. 100 h
- Weight: 3.7 kg
- Dimensions (LxWxH): 210 mm x 205 mm x 185 mm
- Operating temperature: -20°C to +50°C
- Range Ø: approx. 700 m with receiver IP rating: IP 66
Technical data Acceptor Pro
- Range: 500 m
- Accuracy: 0.5 / 1 / 2 / 4 mm
- Receiver sensor length: 70 mm
- Displays: front and rear
- LEDs: 3 colors (red / green / yellow)
- Noise level: Off/loud/soft
- IP rating: IP 66
- Power supply: 3x Battery 1.5 V (AA)
- Operating time: 100 hours
- Dimensions: 168x95x27 mm
- Weight: 0.34 kg

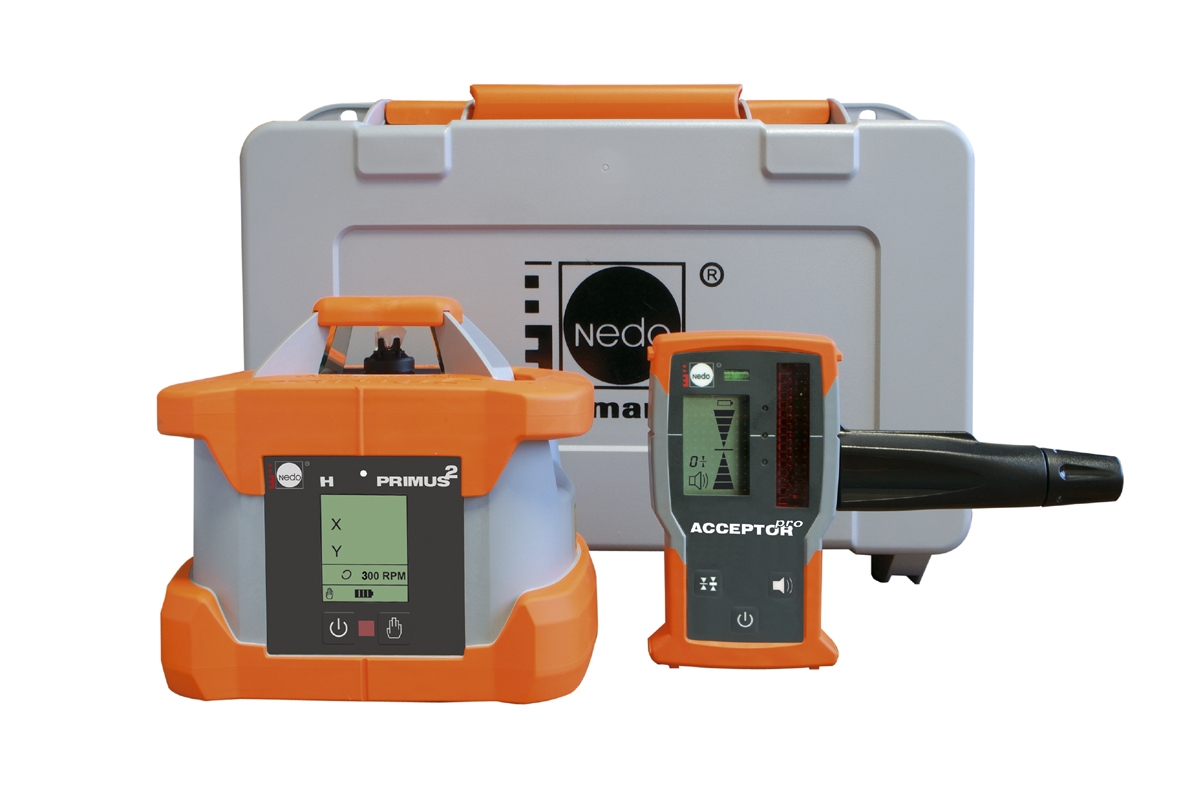

Supplied as standard:
- Rotating laser Primus2 H
- Laser receiver Acceptor Pro
- Primus2 Quickfix adapter
- Batteries and charger
- Robust case
- Dutch manual
