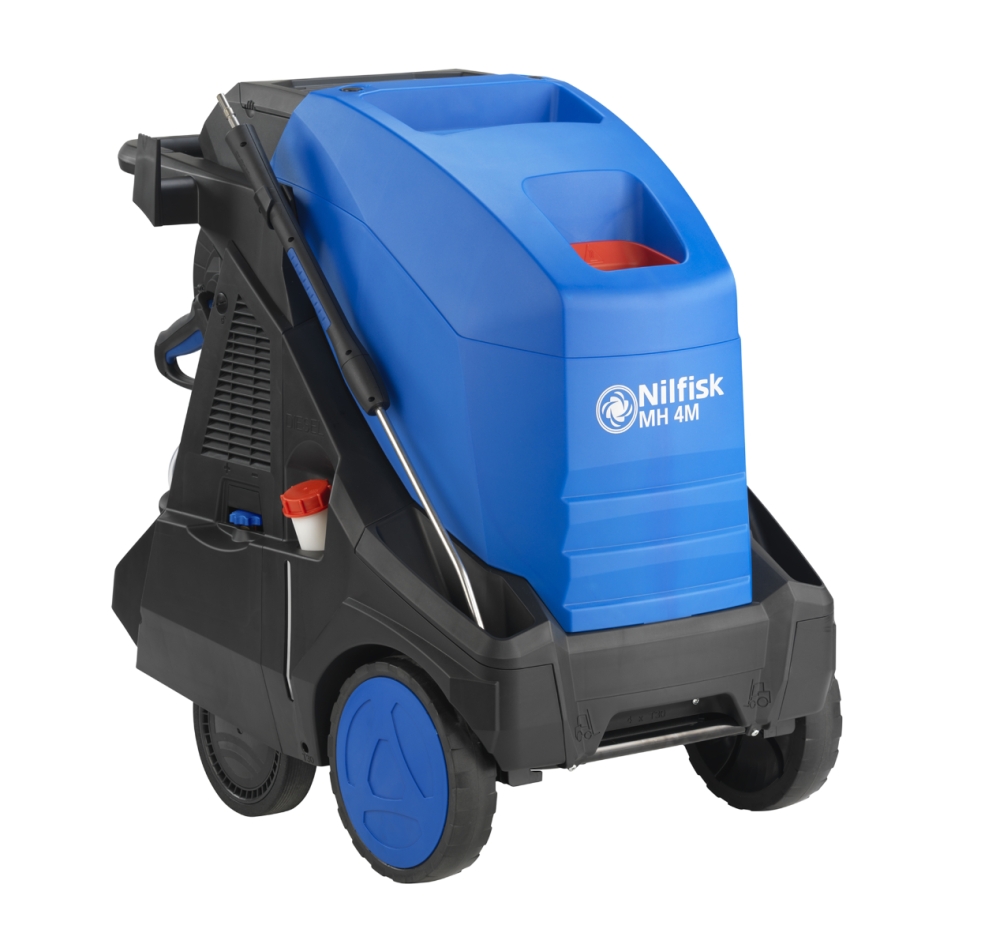

Nilfisk 107146940 MH 4M-220/1000 FAX Hot Water High-Pressure Cleaner 220 Bar 400 Volt
Special features
- The Nilfisk MH 4 series takes mid-range hot water high-pressure cleaners to a new level, meeting the latest market demands
- The Nilfisk MH 4 high-pressure cleaner is equipped with the industrial NA5 pump with 3 ceramic plungers and the high-efficiency 4-pole motor
- The flow-activated system improves ease of use and operation as well as overall reliability.
- The Nilfisk MH 4M high-pressure cleaner is suitable for medium to heavy-duty hot water cleaning tasks where the high-pressure cleaner is used 4-6 hours per day
- Thanks to the improved fuel-saving EcoPower boiler system, this pressure washer offers highly efficient and fast cleaning.
- Service and maintenance can be carried out quickly because all vital parts are easily inspected and accessible.
- The diagnostic function of the MH 4M pressure washers features a warning system to minimize downtime.
- The Nilfisk MH 4M guarantees easy transport of the pressure washer over all types of surfaces thanks to the four large wheels and optimal balance.
- Optimal storage options for accessories such as double lance holders, a rotating crank for easy winding and unwinding of the power cable, and innovative mounting for the spray gun and detergent tanks.
- Together with easy access to all vital parts, this Nilfisk MH3 series of hot water pressure washers guarantees remarkable cleaning results, time savings, and reduced costs.
- High efficiency 4 pole motor
- EcoPower boiler with EcoMode function
- Brass motor pump with 3 ceramic plungers
- Innovative design with 4 large wheels
- Easy to move
- Flow activated discharge system
- Oil level indicator
- Low oil level warning system
- Low fuel level warning system
- Built-in diagnostic function
Technical data
- Item number: 107146940
- Weight (kg): 149
- Length x width x height (mm): 1010x700x1016
- Fuel tank (l): 15
- Pump pressure (bar/MPa): 220/22
- Cleaning impact (kg/force): 5.6
- Water capacity Qmax-Qiec (l/h): 1000/940
- Max. Water inlet temperature (°C): 40
- Water temperature (water/steam) (°C): 90/150
- Power consumption (kW): 7.2
- Electrical connection values (V/~/Hz/A): 400/3/50/14
- Fuel consumption at −T=45°C (kg/h): 4.1
- Power cable (m): 5
- Detergent tank (l): A: 10 + B:
- Nozzle size: .0475
- Ceramic plungers: 3
- Pump (rpm): 1450
- Recommended average operating hours per day: 5
- Hose reel: Included
- Swivel cord holder: Included
- Silent power - 1450 rpm motor: Included
- Quick service - innovative service concept: Included
- Ergo accessory system: Included
- KDS detergent system: Included
- Low oil level warning: Included
- Service indicator: Included
- Float bowl: Included
- Water supply setting: Included
- Thru-voltage power: Included
- Brass cylinder head: Included
- High-pressure chemical system: Included
- 2 x detergent injectors: Included
- Detergent tank: Included
- Parking brake: Included
- Forklift transportable: Included
- Fuel tank: Included
- Flame sensor: Included
- Pistol grip holder: Included
- Motor on/off indicator: Included
- Cleaning agent tank 10 ltr.: Included
- Double lance holder: Included
- Large wheels - 4 pcs.: Included
