Optidrill DQ14 PACK Bench Drill 13 mm B16 230 Volt
Special Features
- Guaranteed runout accuracy better than 0.03 mm measured in the drill spindle
- Quiet, high-quality electric motors
- Spindle with precision ball bearings
- Quieter running thanks to aluminum pulleys
- Thanks to the high-quality toothed GATES drive belts, the machine achieves significantly better power transmission and considerably less performance loss
- Drilling depth stop
- Precisely machined work table with diagonal pattern T-slots, swiveling from -45° to +45° and rotatable 360° around the column
- Solid, large base plate with T-slots
- Long, ergonomic double handle with 'soft grip'
- User-friendly control buttons with separate start and stop push buttons and separate emergency stop in IP54
- Integrated LED lighting
- No-load voltage
- With double electrical safety channel 24V
- Robust spring-loaded folding drill guard
- V-belt cover equipped with safety switch
Advantages
- Drilling in steel up to 13 mm
- Fixed chuck B16
- 5 speeds
- 350 Watt motor with aluminum housing, 1x230V
- Heavy weight 18.5 kg
Applications
- On construction sites: plaster, concrete, screeds, concrete, ...
- For moisture problems after a water leak or flooding
- Improving air quality in permanently damp rooms: basements, laundry rooms
- For moisture-sensitive materials such as paper, metal goods, wood stock, etc.
- These plastic models do not rust, so they are ideal for use by the sea or near a swimming pool.
- These strong and robust PE models are also perfectly suitable for rental or if they need to be moved frequently
- The capacity of construction dryers is specified for heated rooms. Warmer air can hold more water vapor, so the efficiency of the construction dryer is higher.
- At very low temperatures, the output capacity is lower.
Technical data
- Voltage V 1x230
- Power kW 0.35
- Drilling cap. in steel S235JR mm 13
- Drilling capacity during continuous use S235JR mm 12
- Spindle taper Fixed/B16
- Number of speeds 5
- Spindle speed min-1 700-2500
- Drilling depth mm 52
- Throat mm 104
- Column diameter mm 46
- Table dimensions (wxd) mm 170x170
- T-slot size/number/distance mm 14/diagonal
- Drilling table swivel ° +/-45
- Drilling table rotation ° 360
- Distance spindle-table mm 250
- Distance spindle-base mm 340
- Base dimensions (wxd) mm 138x128
- Weight kg 18.50
- Dimensions (lxwxh) mm 472x283 x634
Scope of delivery
- Quick-release chuck 1-16 mm B16
- 2 T-nuts for 14 mm T-slot and M12 thread
- Dutch manual, markings, CE mark, and CE certificate in accordance with Machinery Directive 2006/42/CE and EMC Directive 2014/30/EU
- 1 x Drill chuck BME85 85 mm, 713052630

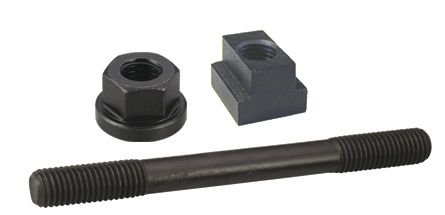

- 1 x Set of complete M12 clamping bolts for 14 mm T-slot, 790007317
