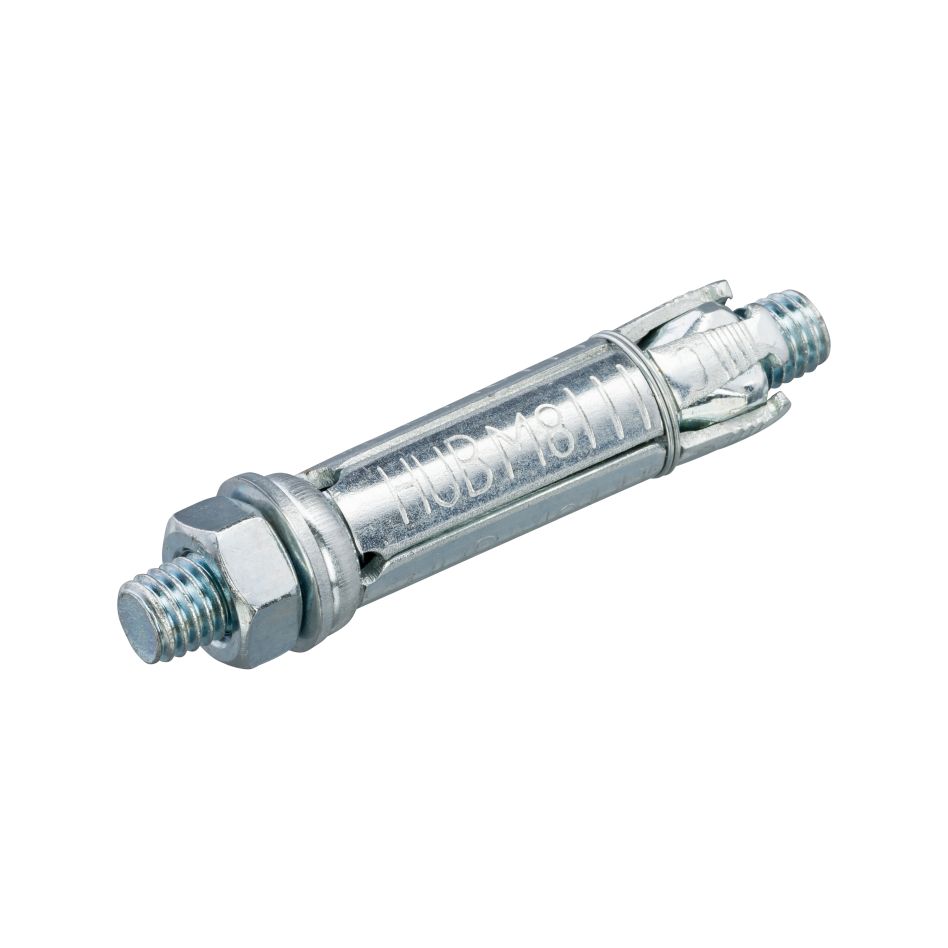

Proftec 5506.01.41001 Wedge Bolt VZ M10 x 60 x 30 mm - 10 pieces
Special features
- A wedge bolt sleeve is a metal sleeve consisting of two elements with a conical nut held together at the top and bottom by a spring washer
- This sleeve is used for medium and heavy fastenings in concrete and hard stone types
- Depending on the application, the sleeve can be supplied complete with tap bolt, hook, eye, thumb, or threaded rod.
Technical data
- Thread (metric): M10
- Length: 100 mm
- Borehole diameter: 16 mm
- Min. Drill hole depth: 65 mm
- Max. clamping thickness: 30 mm
- Tightening torque: 50 Nm
- Drive: Hexagon SW-17
- Thread type: Metric
- Material: Steel
- Strength class: 8.8
- Surface treatment: Electro-galvanized
- Surface treatment color: Blue
- Packaging type: Box
- Package contents quantity: 10 piece(s)
