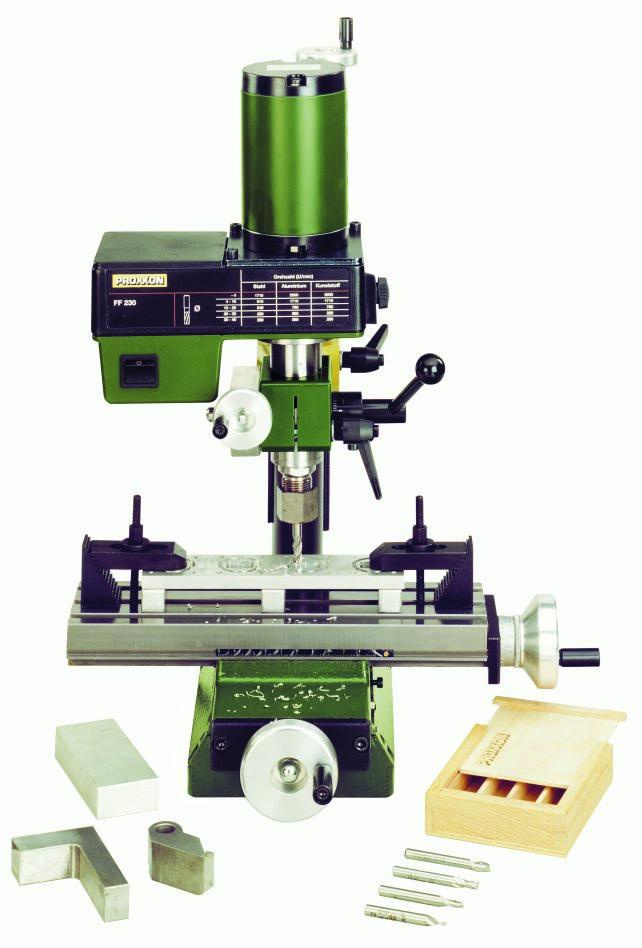

Proxxon FF 230 Fine Milling Machine 230 Volt
A small and very precise machining center for milling, drilling, and countersinking
Special features
- Drill chuck swivels 360° (with degree scale)
- Drill spindle with drilling depth indication via scale ring
- Powerful PM motor with Poly-V belt drive for high torque, especially at lower speeds
- Tool holder via collets
- Steel cross table with 3 T-slots
- For milling operations, the drill chuck and the column, as well as the tailstock, can be clamped together with a toggle bolt
Technical data
- Maximum power: 140 Watts
- Spindle speeds: 280 - 550 - 870 - 1200 - 1500 - 2200/min
- Display: 65 mm
- Spindle stroke: 30 mm
- Column: 35 x 400 mm
- Table: 270 x 80 mm
- Adjustment range X-axis 170 mm, Y-axis 65 mm
- Setup surface: 180 x 130 mm
- Total height: 500 mm
- Weight: 17 kg
Supplied as standard
- 3 collets (6 - 8 - 10 mm)
- Fine milling machine
- Excluding Fine feeding
- Excluding milling
