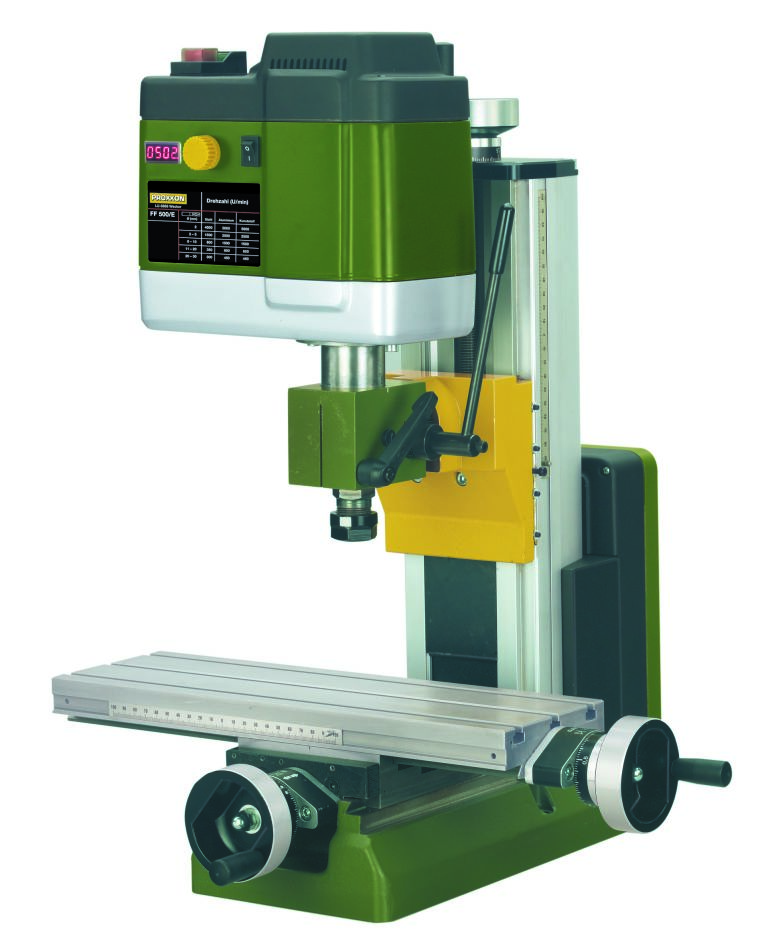

Proxxon FF 500/BL Fine Milling Cutter 230 Volt
Special features
- With stepless speed control for 200 – 4,000 rpm at higher precision
- With digital speed display
- External control via rotor poles and speed sensors guarantees high torque when setting a cutter below the speed range
- Solid column with profile guide
- Milling head rotatable 90° left and right
- The quill is clampable and for adjusting the fine feed
- Height adjustment of the milling head via a knob
- Solid steel cross table with 3 T-slots (12 x 6 x 5 mm)
Technical data
- Maximum Power: 400 Watts
- Spindle speed: 200 – 4000/min
- Throughput: 125 mm
- Pinole knob: 30 mm
- Column: 120 x 100 x 430 mm
- Table: 400 x 125 mm
- Vertical (Z-axis) 220 mm, horizontal (X-axis) 310 mm, depth (Y-axis) 100 mm
- Dimensions: H = 750 mm, W = 550 mm, L = 550 mm
- Weight: 47 kg
