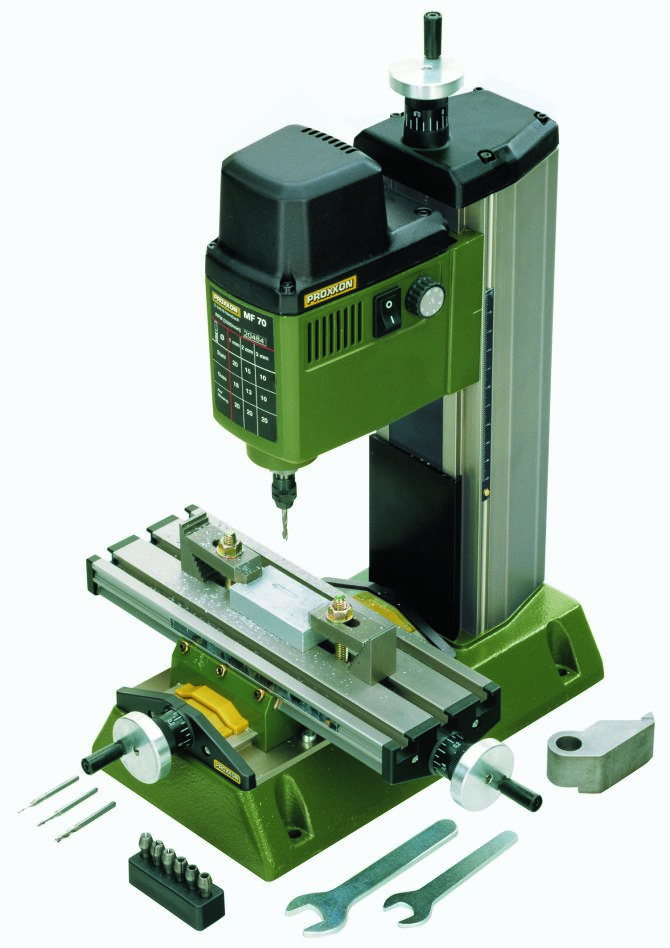

Proxxon MF 70 Micro-Milling Machine 230 Volt
The precise vertical milling machine for laboratories, opticians, jewelers, electronics technicians, and model makers
Special features
- The precise vertical milling machine for fine work
- Sturdy machine base made of cast iron, vertical guide, and cross table
- All axes are backlash-free, adjustable dovetail
- Cast aluminum housing, with a 24-pole specially balanced motor
- For vibration-free operation at high speeds
- Sliding ruler for easy adjustment of the cross slide
- All handwheels with scale ring adjustable to 0
- Tool clamping via Micromot system collets
- Table with 3 through T-grooves
Technical Specifications
- Maximum power: 100 Watts
- Spindle speeds 5000 – 20000/min
- Table: 200 x 70 mm
- Adjustment range: X (cross) 134 mm, Y (depth) 46 mm, Z (height) 80 mm
- Machine base: 130 x 225 mm
- Total height: 370 mm
- Weight: 7 kg
Standard included
- Supplied including the 2 collets
- Collets 1 - 1.5 - 2 - 2.4 - 3 - 3.2 mm
