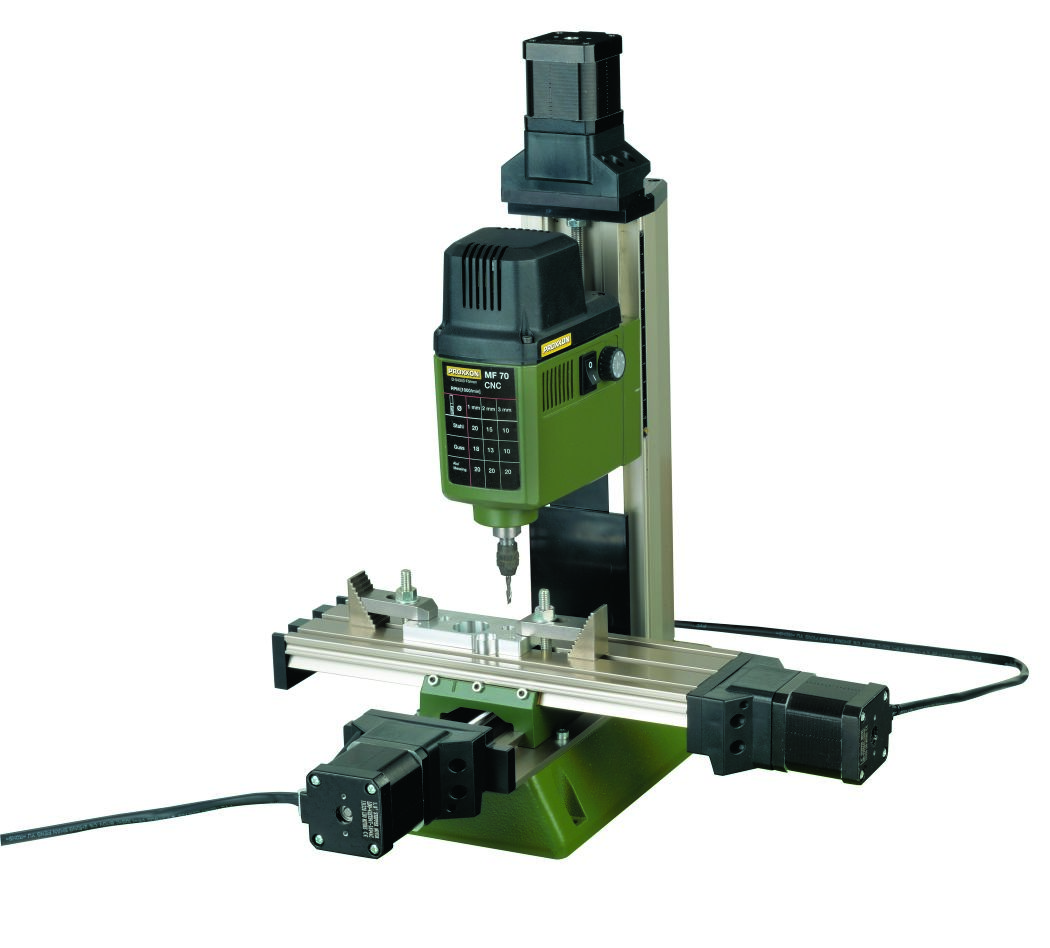

Proxxon MF 70/CNC-Ready Micro Milling Machine 230 Volt
The precise vertical milling machine for laboratories, opticians, jewelers, electronics technicians, and model builders
Special features
- With stepper motors for the X-axis, Y-axis, and Z-axis via handwheels
- Interesting for users who already have a control system or wish to purchase one from another manufacturer on the market
- Stepper motors and reference switch with 2.2 m connection cable and both with a standard plug
- Without CNC control, without CNC software
Technical data
- Maximum power: 100 Watts
- Speed: 5000 - 20000/min
- Table: 250 x 70 mm
- Traverse: X (width) 150 mm, Y (length) 70 mm, Z (height) 70 mm
- Stepper motor resolution: 0.005 mm
- Total height: 370 mm
- Weight: 7 kg
