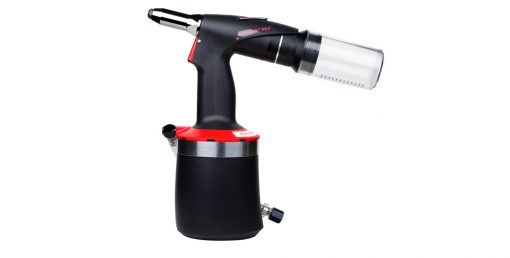

Pull-Link AS-3 Pneumatic Rivet Tool 4.8-6.4 mm
The AS-3 with a 25 mm stroke is specially built for fastening steel rivets.
Special features
- The AS-3 pneumatic rivet tool is a professional pneumatic rivet tool with a mandrel catcher and a multi-purpose trigger for heavy-duty industrial applications and can be used with rivets of ø 4.8 – 6.4 mm, in Aluminium, Steel, Stainless Steel, and for structural rivets.
Technical data
- Capacity: 4.8/5.0 – 6.0 – 6.4 mm
- For any quality of rivets
- Weight: 1.80 kg
- Dimensions: 292 x 290 x 125 mm
- Stroke: 25 mm
- Working pressure: 5 – 7
- Bar Tensile force: (6 bar) 16 kN
Supplied as standard
- Nose pieces ø 1 x 4.8/5.0 mm 1 x 6.0 mm 1 x 6.4 mm
