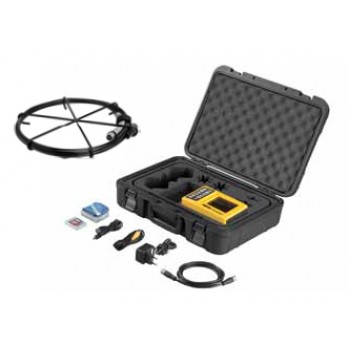

Rems 175008 R220 CamSys Set S-Color 10 K Electronic Camera Inspection System
Special features CamSys
- Super lightweight, handy camera inspection system for cost-effective inspection and damage analysis of pipes, sewers, chimneys, and other hollow spaces.
- With electronic meter counting.
- Also for inspection after pipe cleaning work and the commissioning of new installations or repairs.
- Documentation of images and videos on SD card.
- For battery and mains power.
- Li-ion technology.
- Pipes Ø (40) 50 – 150 mm
- Sewers, chimneys, other hollow spaces
- REMS CamSys – brilliant images and videos from pipes and sewers.
- SD card slot.
- With electronic meter counting.
- For battery and mains power.
- Controller unit with 3.5" color display with state-of-the-art TFT LCD technology for brilliant photos and videos, 89 mm screen diagonal, 320×240 pixels.
- Exceptionally light and compact, only 0.4 kg.
- Sturdy, impact-resistant plastic housing, splash-proof.
- Compact dimensions: 172×111×58 mm.
- Buttons for adjusting the brightness of the LEDs on the color camera head.
- Full screen, 2x zoom and mirror function.
- SD card slot with spring mechanism.
- Photos and videos can be stored on an SD card for easy documentation of the inspection result.
- The date and time of the recording, as well as the camera's retraction depth, can be saved on the photo or video if desired.
- Additional photos can be taken while recording a video without negatively affecting the video recording.
- Direct playback of stored recordings or transfer via SD card to other devices.
- Photos of the video images can also be taken while displaying stored videos on the controller's color display.
- USB connection for direct connection to a PC or laptop.
- Video output
- Composite Video
- PAL/NTSC for connecting an external screen.
- Connection for Power source/charger Li-ion 100–240 V.
- Special high-resolution color camera
- Special Ø 25 mm high-resolution color camera, with CMOS image sensor and 8 ultra-bright white light-emitting diodes (LEDs) with adjustable brightness up to 330 mcd and concentrated beam angle for brilliant color photos with uniformly bright lighting.
- Low light requirement due to very high light sensitivity (0.5 Lux).
- Fix focus and special lens with 70° wide-angle, also for recognizing the smallest details.
Standard included
- Connection cable
- Charger/power source
- SD card 4 GB
- USB cable
- Video cable
- Case
- Camera cable set S-Color 10K with special color camera Ø 25 mm 10 m sliding cable in cable basket
