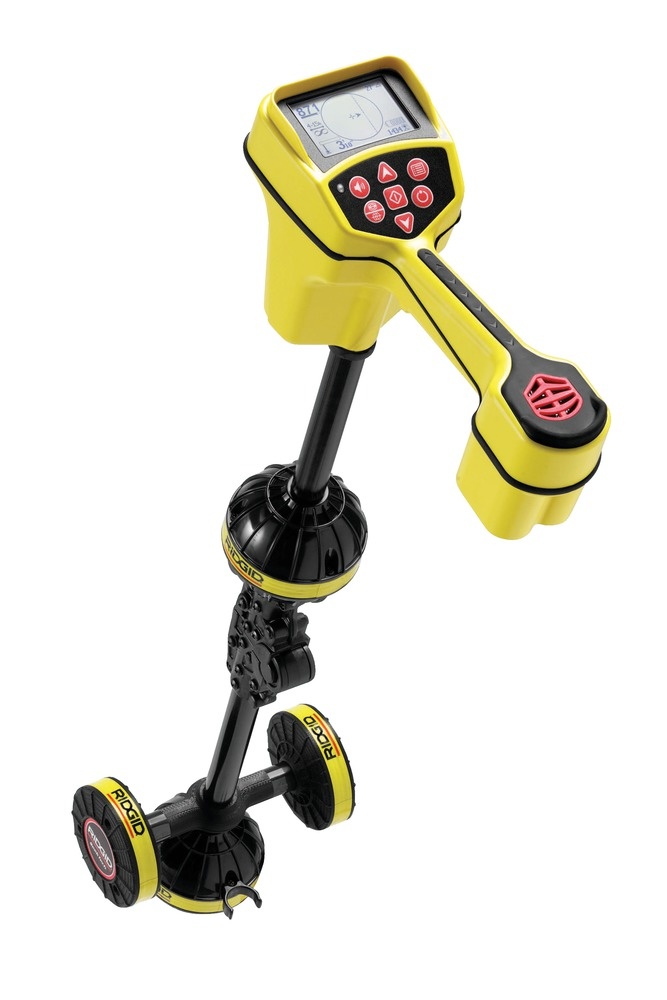

Ridgid 21943 SeekTech SR-20 pipe locator (including case)
Special features
- The RIDGID SeekTech SR-20 pipe locator is an advanced device for detecting and locating pipes, cables, and transmitters.
- Thanks to its innovative design and technology, locating is fast, accurate, and user-friendly. This device is ideal for professionals in utilities, installation, and infrastructure management.
- Multidirectional Antennas: The SR-20 uses multiple antennas for a wide detection range and accurate signal recognition. This allows the device to locate pipes and transmitters, even in complex situations.
- Graphical Display: Real-time feedback on the location and direction of the pipe or transmitter. Displays a bend when the pipe curves, and arrows guide the user accurately to the location.
- Detection Modes: Active Tracing: Works with a pipe transmitter to send signals to pipes, allowing them to be tracked with precision. Passive Tracing: Detects signals already being transmitted by underground pipes.
- Camera Systems and Transmitters: Works with RIDGID SeeSnake inspection camera systems (512 Hz) and other standard transmitters (such as 33 kHz and 640 Hz).
- Ease of Use: The device displays a numerical indicator that increases as you get closer to the pipe. It combines visual and numerical signals for accurate navigation.
- Versatility: Suitable for use with inspection cameras, springs, hoses, and transmitters. Ideal for various applications, such as water pipeline management, sewer inspection, and cable networks.
- A robust, lightweight receiver that provides all necessary information for faster, accurate detection
- Distortion can be quickly determined using the target line and guidance arrows
- Proximity signals and signal strength assist in difficult detection operations
- Can trace all frequencies from 10 Hz to 35 kHz
Applications
- Utilities: Tracing underground water and gas pipelines.
- Inspection cameras: Locating SeeSnake cameras and other inspection systems with transmitters.
- Electrical Cables: Passively locating cables without a transmitter.
Benefits
- Accuracy: Multidirectional antennas and graphical display minimize incorrect localization.
- User-friendly: Intuitive operation and clear feedback.
- Versatile: Works with various frequencies and applications.
Technical data
- Active line tracing frequencies * - 128 Hz, 1 kHz, 8 kHz and 33 kHz.
- Passive feed line tracing - Broadband 50 Hz, 60 Hz, <4 kHz.
- Passive radio frequency tracing - 4 kHz-15 kHz, 15 kHz-36 kHz.
- Probe frequencies * - 16 Hz, 512 Hz, 640 Hz, 850 Hz, 8 kHz, 16 kHz, 33 kHz.
- Power source - 4 C-cell batteries (included) or rechargeable 18V professional RIDGID® battery with RIDGID SeekTech® adapter 18V (optional).
- Battery life - Varies with battery rating, usage, and operating factors
- Four size C alkaline batteries provide approximately 10 to 15 hours
- Professional RIDGID® 18V battery provides approximately 18 to 22 hours.

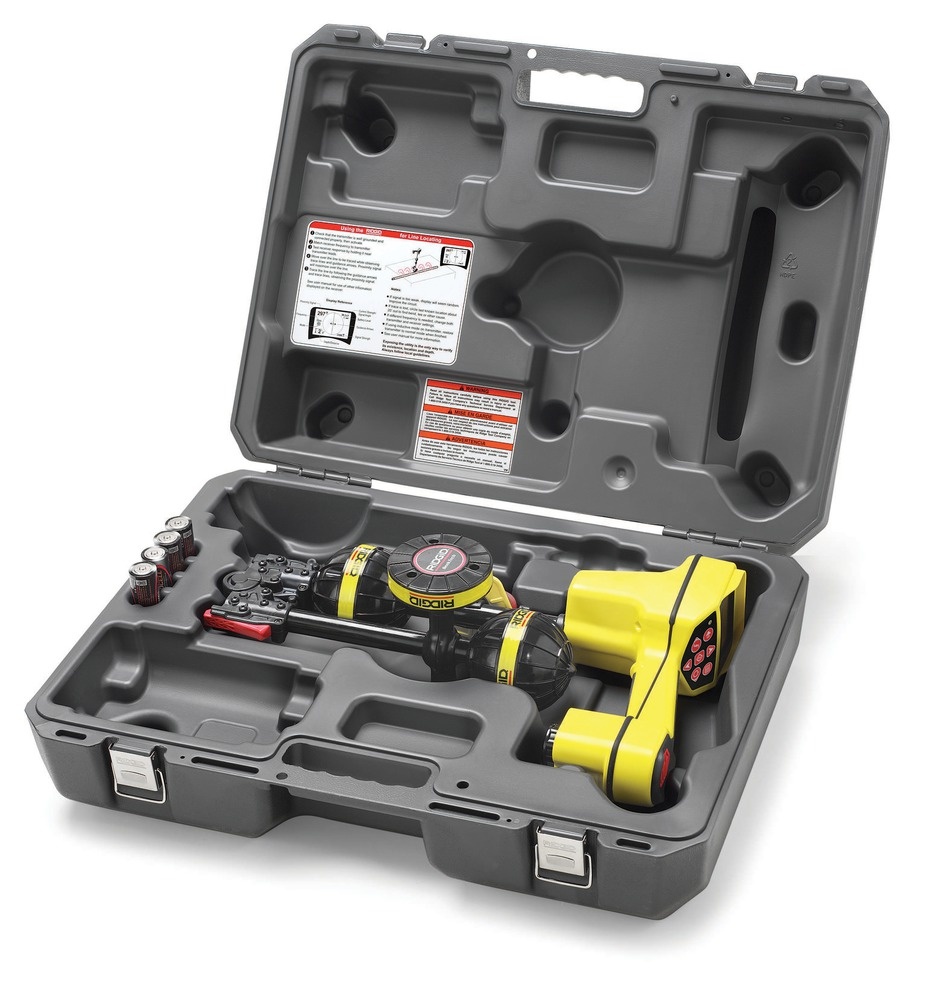

Standard included
- Case
- Surface markers and clip
- Instruction DVD
- Manual
- 4 C-Cell Battery (alkaline)
