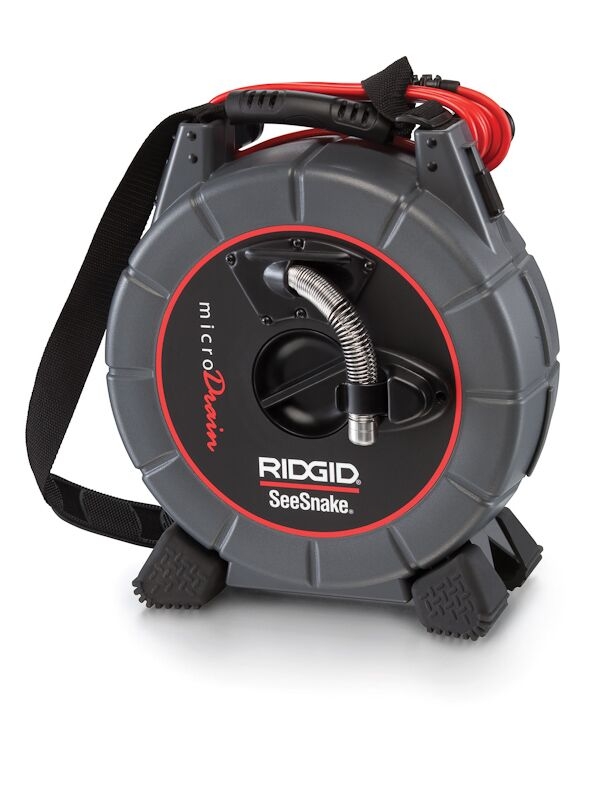

Ridgid 37518 MicroDrain Reel D65S with connection cable for micro CA-300 / CA-330 / CA-350
* pipes with a cross-section of 32 - 75/100 mm and a length of max. 20 m Passes through multiple 90° bends in most 40 mm drain pipes The microDrain™ inspection system is compact and maneuverable, making it suitable for inspecting small-diameter pipes with sharp bends. * 3" (75 mm) when used in combination with a micro CA-350 inspection camera. 4" (100 mm) when used in combination with a SeeSnake monitor.
Features:
- The system is lightweight and the compact design is 50% smaller than other commonly used inspection systems.
- It is easy to store in a company vehicle and carry to the work site.
- Compatible with multiple SeeSnake monitors or with the digital micro CA-350 inspection camera.
- Durable and reliable design with a spring-loaded hardened stainless steel camera head for long service life, and bright, long-lasting LEDs for exceptionally good image quality. Ideal for inspections with sharp bends, such as toilet odor traps and P-valves.
Technical data
- Camera head 22 mm
- Cable length 20 m (65")
- Cable diameter 0.33" (8.3 mm)
- Pipe capacity 1¼" to 3 / 4" (32 - 75 or 100 mm)
- Weight 8.6 lbs. (3.9 kg) or 9.8 lbs. (4.4 kg)
- Dimensions Length 13.25" (33.7 cm), width 6.6" (16.8 cm), height 14.2" (36.1 cm)
- Resolution 656 x 492 NTSC
- Spherical centering guide 2 included
- Probe Standard with 65" (20 m) microDrain, 512 Hz.
- Counter Not available
Standard included
- Separate reel
- Connection cable
- Manual
Please note! Micro camera must be ordered separately as an option!
