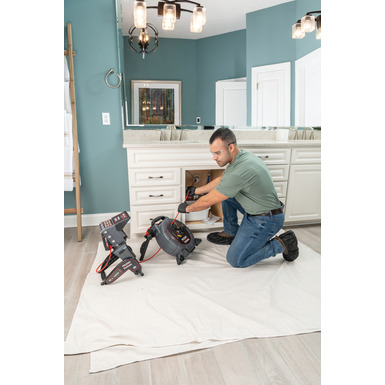

Ridgid 75848 SeeSnake MicroReel APX with CS6x Versa digital TrueSense diagnostic tube inspection camera 18V 5.0Ah Li-Ion
Features
- The RIDGID SeeSnake microReel APX with TrueSense is a lightweight, compact, and portable diagnostic inspection camera.
- It offers enhanced camera functionality, including TruSense technology and automatic image rotation for bright and clear images inside the tube, and feedback on angle and image orientation on the camera screen.
- The microReel APX features a stand for use with the CSx Via™ and offers improved stability and usability when positioned at a 45° angle.
- Enhanced camera functionality - APX camera reels offer TruSense technology with an HDR image sensor for superior viewing inside the tube and a TiltSense tilt meter.
- Automatic image rotation - Rotates the camera image without moving parts.
- Durability - Spring-loaded hardened stainless steel camera head is durable and reliable for a long service life.
- Mobility - The lightweight and compact design of the carrying case is 50% smaller than other commonly used inspection systems.
- It is easy to store in a company vehicle and carry to the workplace.
- Versatility - Compatible with multiple SeeSnake monitors.
- Visibility - Camera heads feature durable, high-efficiency LEDs that provide better visibility inside the pipe and higher color accuracy. Traceability - Integrated 512 Hz probe for easy tracing and locating of pipes.
- Easy to guide - Mid-flex push cable ideal for small diameter pipes (1 1/2" to 4" / 40 to 101 mm) and small radius bends up to a length of 100' (30 m).
Technical data
- Weight 12.7 lbs (5.8 kg)
- Length 13.3 inches (337 mm)
- Width 8.8 inches (224 mm)
- Height 16.2 inches (411 mm)
- Reel diameter 305 mm (12 inches)
- Camera diameter 25 mm
- Type Fixed
- Resolution 640 x 480
- Capacity Pipe 1 1/2" to 4" (40 mm to 101 mm)
- Push cable length 30 m (100 ft)
- Push cable diameter 0.27 inch (6.7 mm)
- Minimum bending radius push cable 2.5 inch (64 mm)
- Probe 512 Hz, integrated
Scope of delivery
- 64943 - CS6x VERSA digital recording monitor with Wi-Fi
- 56523 - 230V Fast charger (incl. car charging cable)
- 56518 - 18V 5.0Ah advanced lithium battery
- 70808 - SeeSnake MicroReel APX with TruSense diagnostic tube inspection camera
- 66483 - RIDGID® CS6x Versa carrying case
