Rothenberger 1000004584 ROTEST GW Professional Leak Detection Device
Application Benefits
- All-in-one solution: One device for various types of pipes (gas, liquefied gas, water, wastewater).
- Automatic test procedures: Simplifies the testing process and increases reliability.
- DVGW Certified: Meets the standards and requirements of the DVGW (German Association of Gas and Water Companies), which stands for quality and safety.
- Internal compressor: Allows pressure build-up up to 1 bar, which is sufficient for many tests.
- Built-in printer: Direct printing of measurement results for quick documentation.
Application Area
- Tightness testing: Suitable for gas, water, and wastewater pipes.
Technical data
- Test range: 0 - 20 bar
- Measuring range: 0 - 50°C
- Nominal inner diameter: 1/2 inch
- Max. test pressure: 20 bar
- Max. gas volume for test: 100 l
- Min. test duration: 1 second
- Power supply: 6 Volt battery
- Number of batteries: 1x Li-Ion
- Tube Ø: 28 mm

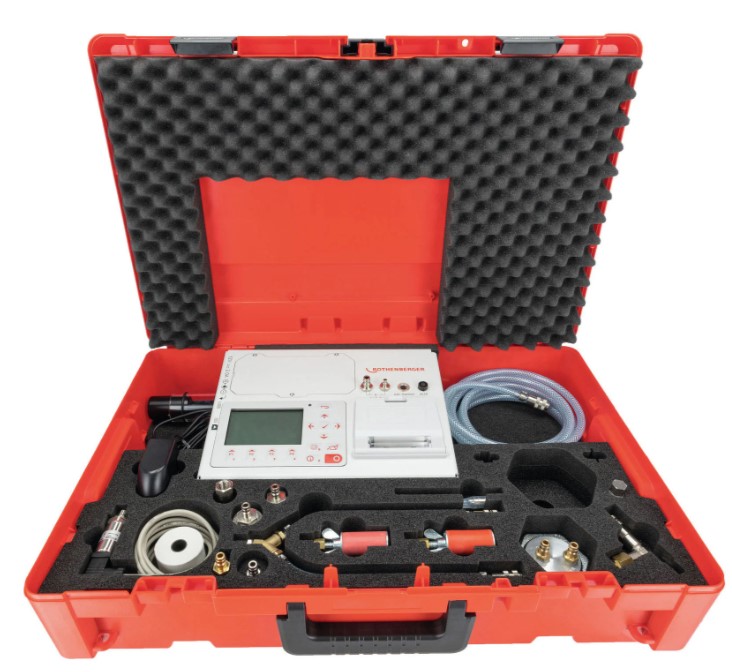

Scope of delivery
- ROTEST GW Professional Base unit: The main measuring device.
- External high-pressure sensor: Up to 20 bar with adapter.
- Test hose: 2.8 m length.
- Y-test hose: With NW 5 connections.
- Hose connection for burner: For specific applications.
- Shut-off valve: For flow control.
- Connector with safety valve: For compressor use.
- Adapter: Various sizes and NW 5 couplings. Single-tube counter cap: With NW 5 connections.
- Test plugs: 2 pieces, cylindrical, Size 2.
- Entrance plugs: For additional applications.
- SD card: For data storage.
- Printer paper: For the built-in printer.
- User manual: For using the device.
- Test protocols: For documenting the measurement results.
This device offers a wide range of functions and accessories, making it a versatile instrument for testing and inspecting pipes in various environments.
