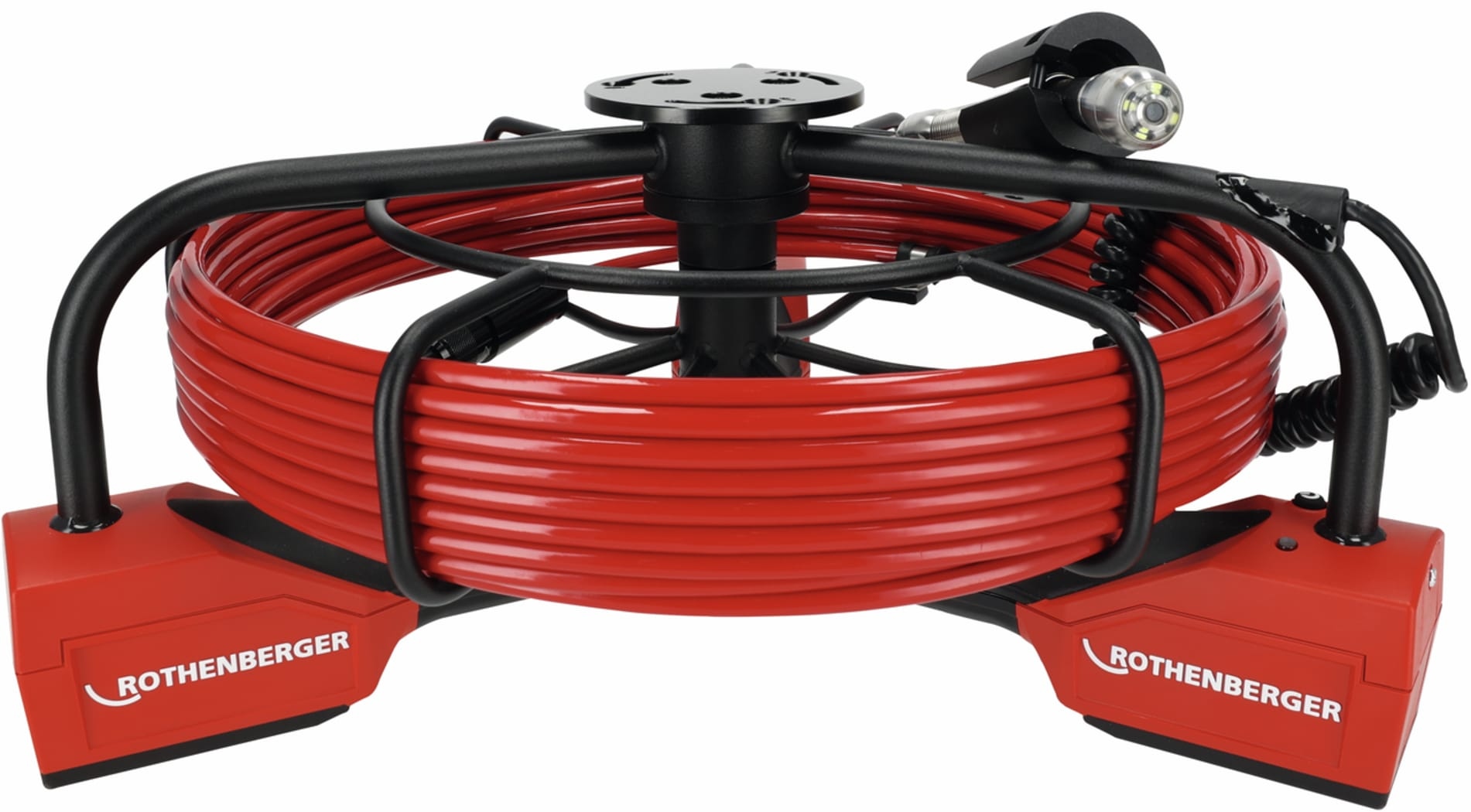

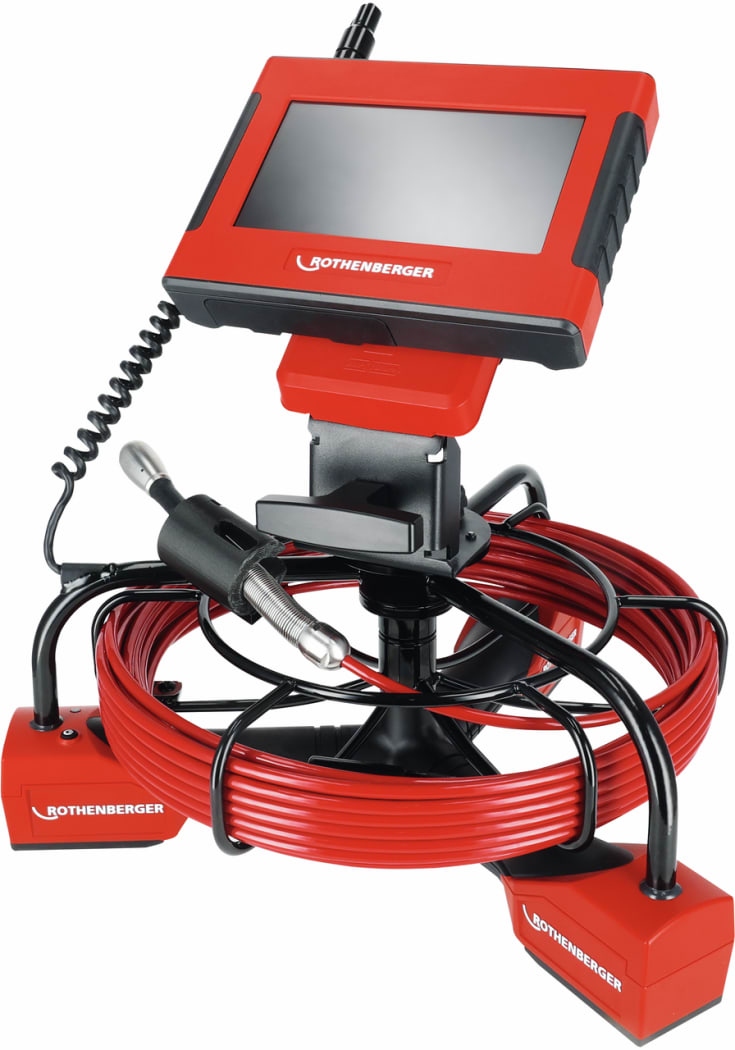

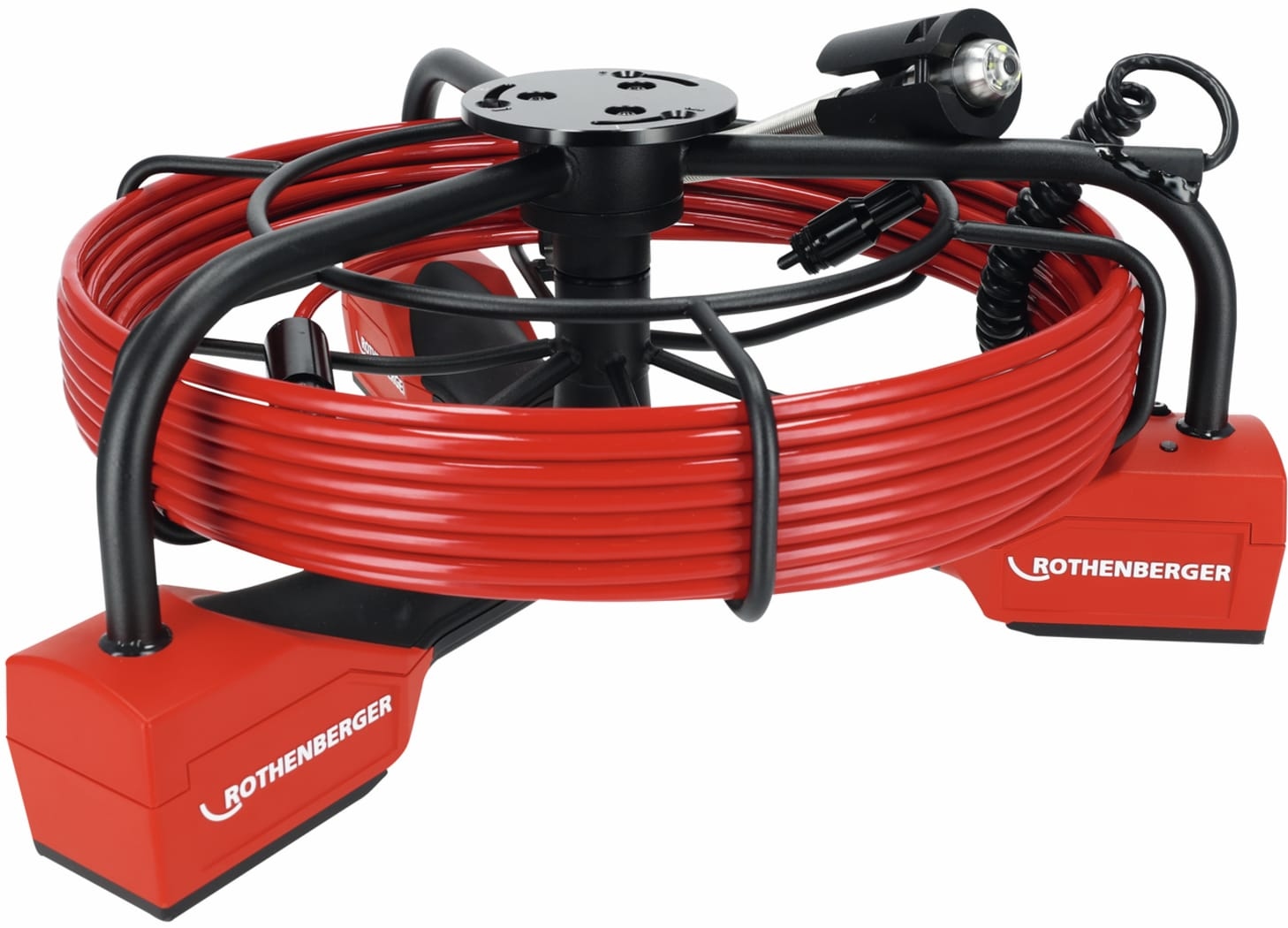

Rothenberger1000005076 ROCAM MINI HD and Module 20/16 HD - CAS Inspection camera set 16m cable 1x 2.0Ah 18V and charger
The EU pipe inspection set, consisting of the ROCAM MINI HD monitor unit and the 20/16 HD reel module, combines both items into a highly efficient pipe inspection set. The ROCAM MINI HD is the monitor unit with a high-resolution 7-inch touchscreen and simplifies professional and expert inspection at the customer's location. The 20/16 HD reel module extends the inspection range of the ROCAM MINI HD to 16 m and ensures that the ROCAM MINI HD can also be used to inspect piping systems in apartment buildings. The set combines the application benefits of the ROCAM MINI HD and the 20/16 HD reel.
Special features
- High resolution and TrueColour camera technology for fast and accurate analysis
- 16-meter cable for greater flexibility and reach
- Optimized cable stiffness and camera head geometry:
- Suitable for up to 6 90° bends in 50 mm pipes
- Suitable for up to 3 90° bends in 40 mm pipes
- Integrated Bluetooth module
- Connection to headphones possible
- Enables voice recording during video recording
- Integrated Wi-Fi module:
- Connects to smartphone via the ROCAM MINI HD app
- Access to full media gallery (photos and videos)
- Direct file sharing via the app
- Live-stream function via the app:
- Real-time screen sharing
- Ideal for communication with clients and a professional presentation
Technical specifications
- Operating range diameter: 40 – 90 mm
- Protection class: IP41
- Image format: JPG
- Screen resolution: 800 px
- Screen type: LCD
- Touchscreen: Yes
- Operating temperature: 0 – 50 °C
- Operating humidity: 0 – 95 %
- Storage temperature: -20 – 50 °C
- Water resistance: up to 10 meter
- Image resolution: 1920 × 1080 px
- Storage type: SD card
- Location transmitter: 512 Hz
- Video output: Micro-HDMI
- Computer interface: SD card, WiFi
- WiFi transmitter: Yes
- App compatible: Yes
- Logging function (recording): Yes
- Audio recording: Yes
- Video format: AVI
- Video resolution: 1920 × 1080 px
- Cable length: 16 meters
- Screen size: 7 inches
- Push cable diameter: 6.3 mm
- Camera head diameter: 20 mm
- Storage capacity: 32 GB
- Light intensity: 100 lux
Scope of delivery
- ROCAM MINI HD - Display
- Module 20/16 HD - Reel
- Endoscope
- Guide ball
- RO BP18/2 - CAS battery
- RO BC14/36 - CAS charger (EU)
- ROCASE 6427
