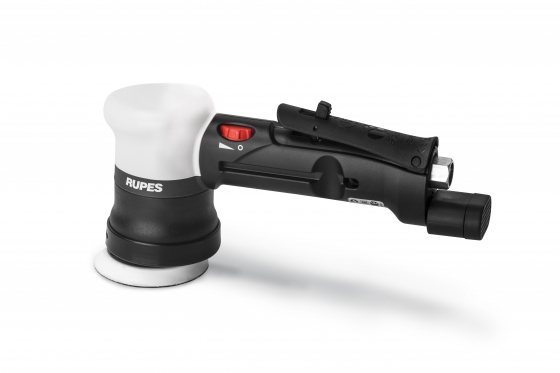

Rupes LTA75 Pneumatic Polishing Machine 75 mm
Rupes offers a new type of motion called TRIPLE ACTION. The power of a motor can be expressed as the product of the torque multiplied by the speed.
Features
- During normal use of a tool, the operator applies a variable load, which, due to friction forces and the work performed by the motor, can reduce the number of revolutions of the motor and, in the case of a random orbital DA, is such that the number of disc revolutions is reduced to zero.
- The load exerted by the operator during normal use of a tool varies significantly over time, causing large variations in the speed of the number of orbits and the rotation of the rotor disc, and consequently reducing the uniformity and effectiveness of the work operation.
- A more homogeneous process leads to a significant reduction in working times. In the case of triple-action tools, and comparable to the movement of arbitrary eccentric tools from DA, the disc, usually circular, follows a path and can rotate freely around its own central axis; however, thanks to a special epicyclic gear transmission at the front of the cam group, the torque value is significantly increased, while at the same time the speed is reduced. With the use of this solution, the impact of a performance variable (the load applied by the user) is significantly minimized, and consequently, there is greater uniformity of tool performance. This ensures a significant improvement in surface finish and a drastic reduction in vibration levels. From the very first use, it is clear how advantageous this configuration is in terms of effectiveness and vibration reduction, all thanks to the introduction of the epicyclic reducer; This is a technical improvement that enhances and changes the functionality of the tool so thoroughly that it deserves a new displacement category, the TRIPLE ACTION.
Technical data
- Diameter 75 mm
- Version Pneumatic
- Rotational speed from - to 0 - 6000 rpm
- Air consumption 400 ltr/min
- Weight 0.9 kg
Standard included
- In box
