Scangrip 03.5200 Line Light 6
Special features
- LINE LIGHT 6 is for trucks and other heavy vehicles and offers you bright lighting exactly where you need it

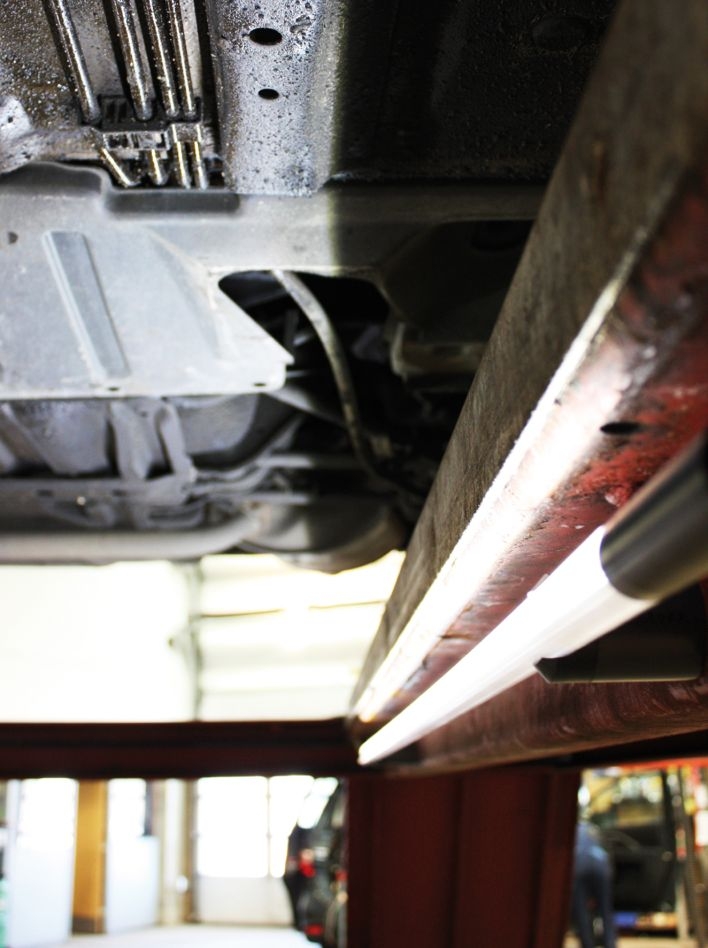

- LINE LIGHT provides extremely powerful illumination of the entire undercarriage, almost twice as much as traditional 36W fluorescent tubes
- The design is slim and compact (only Ø25mm). LINE LIGHT concentrates the light at a beam angle of 75°, avoiding glare during work. The lamp itself can be rotated for an optimal beam angle

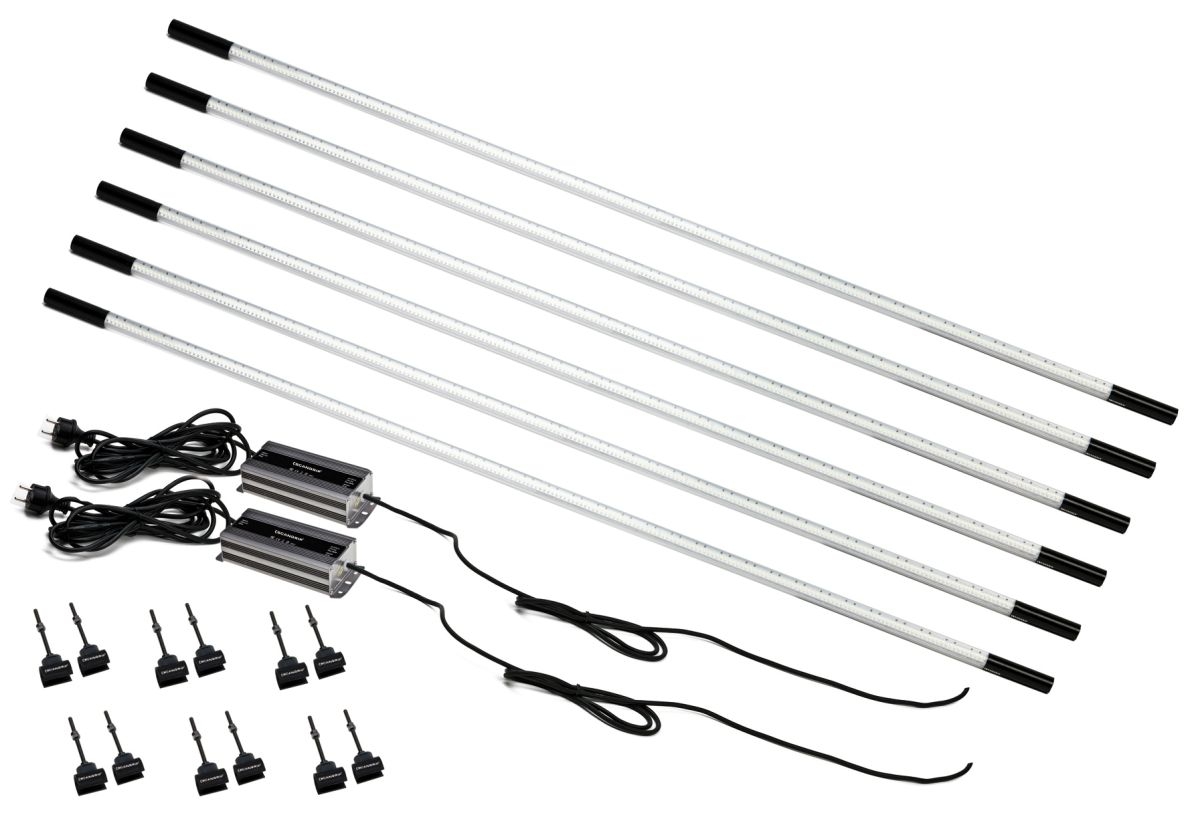

- Since LINE LIGHT is a low-voltage (24V DC) system, you can easily perform the installation yourself. All base fixtures are supplied with every kit together with the power supplies and cable. LINE LIGHT 6 consists of 6 lighting units 1630mm incl. 2 x 80W power supply units, 2x8 m cable and complete suspension fixtures. LINE LIGHT is constructed from a closed extruded acrylic profile (PMMA) with a built-in prism, featuring an LED PCB and end caps in black anodized aluminium. It is extremely robust, shock-resistant, and waterproof (IP67) to withstand wet and dirty workplaces. The technical lifespan of LEDs is at least 100,000 hours. The LINE LIGHT DIMMER is available as an accessory and allows for seamless adjustment of the light intensity. Technical data: Built-in charging circuit: Yes. Housing material: Plastic. Dimensions: 25mm x 25mm x 1630mm. Version: Construction lamp. Headlamp: Non-replaceable LED. Voltage type: DC. Nom. Voltage: 1 / 24 V
- Main lamp power: 120 W
- Main lamp flashing function: No
- With light source: Yes
- Color temperature: 6000 K
- Auxiliary lamp flashing function: No
- Protection class (IP): IP67
- Light color: Cool white
- Rechargeable: No
- Housing color: Black
- Lamp holder: Integrated LED
- Connection cable length: 8 m
- Effective luminous flux according to IEC 62722-2-1: 1400 lm
- App control: No
- Impact resistance: IK07
- Switching brightness: 0 / 1600 lx
Scope of delivery
- 6x Lamps
- Cable
- Power supply
- Manual
