Scangrip 03.5201 Line Light 4
Special features
- LINE LIGHT 4 is universally applicable to 4-legged lifts and offers you bright lighting exactly where you need it
- LINE LIGHT provides extremely powerful illumination of the entire undercarriage, almost double the lighting compared to traditional 36W fluorescent tubes
- The slim and compact design (only Ø25mm) leaves room for the center lever
- LINE LIGHT concentrates the light at a beam angle of 75°, avoiding glare during work. The lamp itself can be rotated for an optimal beam angle
- Since LINE LIGHT is a low-voltage (24V DC) system, you can easily perform the installation yourself. All basic fixtures are supplied with the power supply and cable in every kit.
- The predefined LINE LIGHT kit is considered universal and fits the majority of all 4-legged car lifts, regardless of manufacturer or brand.

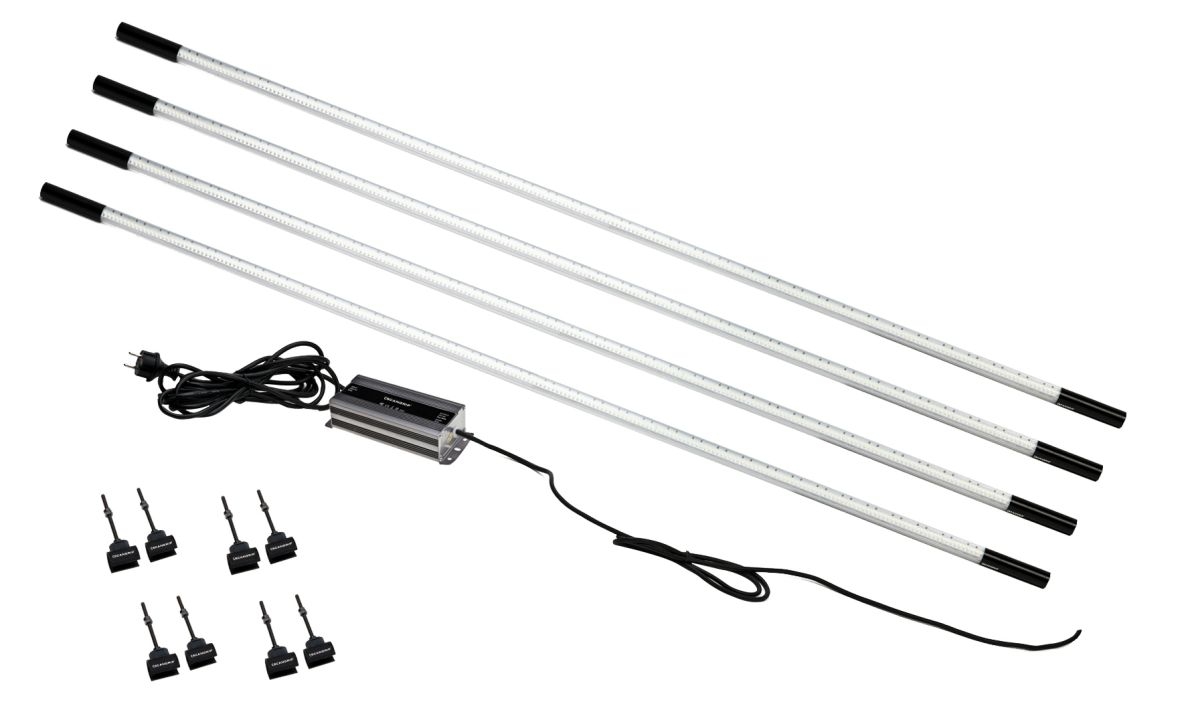

- LINE LIGHT 4 consists of 4 lighting units 1630mm incl. 80W power supply unit, 8 m cable, the LINE LIGHT DIMMER and complete suspension fixings.
- LINE LIGHT is constructed from a closed extruded acrylic profile (PMMA) with a built-in prism, featuring an LED PCB and end caps in black anodized aluminium. It is extremely robust, shock-resistant, and waterproof (IP67) to withstand wet and dirty workplaces. The technical lifespan of LEDs is at least 100,000 hours. Update: For seamless adjustment of light intensity, the LINE LIGHT 4 now comes with our new LINE LIGHT DIMMER. Technical data: Built-in charging circuit: Yes. Housing material: Plastic. Dimensions: 25mm x 25mm x 1630mm. Version: Construction lamp. Headlamp: Non-replaceable LED. Voltage type: DC. Nom. Voltage: 1 / 24 V
- Suitable for emergency lighting:
- Main lamp power: 80 W
- Main lamp flashing light function: No
- With light source: Yes
- Color temperature: 6000 K
- Auxiliary lamp flashing light function: No
- Protection class (IP): IP67
- Light color: Cool white
- Rechargeable: No
- Housing color: Black
- Lamp holder: Integrated LED
- Connection cable length: 8 m
- Effective luminous flux according to IEC 62722-2-1: 1400 lm
- App control: No
- Impact resistance: IK07
- Switching brightness: 0 / 1600 lx
Scope of delivery
- 4x Lamps
- Cable
- Power supply
- Manual
