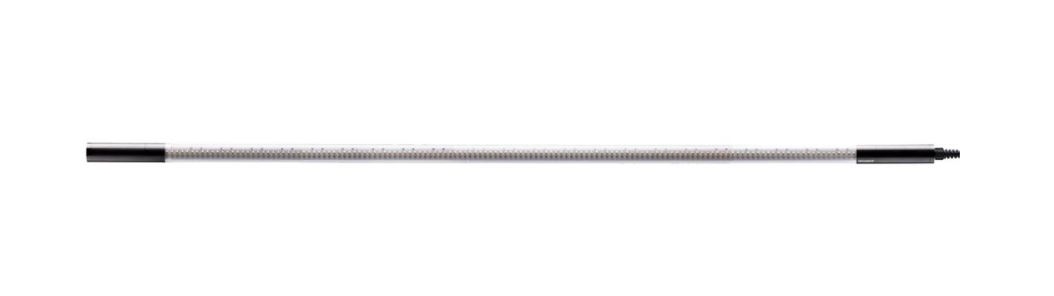

Scangrip 03.5223 Line Light 160 1400lm
Special features
- 160 cm LINE LIGHT lighting unit for universal application
- LINE LIGHT is a flexible lighting solution for universal application, designed for use wherever strong, efficient, and concentrated light is required in a specific work area
- LINE LIGHT concentrates the light at a 75° beam angle and ensures extremely bright and powerful illumination of the entire work area. Glare during work is avoided, and the lamp itself can be rotated to obtain the optimal beam angle
- The LINE LIGHT series is based on the latest state-of-the-art LED technology. LINE LIGHT offers nearly double the illumination compared to the traditional 36W fluorescent tubes commonly used in the industry. The light quality is extremely powerful, just like daylight, which is optimal for accurate recognition of colors, shades, and other product details. The uniform, flicker-free illumination without stroboscopic effects also minimizes the risk of accidents. LINE LIGHT is constructed from a closed, "unbreakable" extruded acrylic profile (PMMA), making it extremely sturdy and shock-resistant, capable of withstanding even strong impacts, shocks, and vibrations from industrial machinery. LINE LIGHT tolerates the rough, wet, and dirty conditions of the professional industrial work environment and is resistant to both oil and chemicals. The IP67 rating means it is resistant to both dust and water.
- Compared to traditional fluorescent lighting, LINE LIGHT consumes only half the amount of electricity, resulting in significant cost savings.
- The technical lifespan of LEDs is at least 100,000 hours.
- LINE LIGHT lighting units are available in various lengths and can be used individually or connected in a string, making them suitable for a wide range of applications.
- The lighting units can be combined exactly as you wish, offering a flexible lighting solution.
- A range of suspensions allows you to place the lighting units exactly where you need them.
Technical data
- Built-in charging circuit: No
- Housing material: Plastic
- Dimensions: 1630mm x 75mm x 70mm
- Version: Construction lamp
- Headlamp: LED not interchangeable
- Voltage type: DC
- Nom. Voltage: 1 / 24 V
- Main lamp power: 20 W
- Main lamp flashing function: No
- With light source: Yes
- Color temperature: 6000 K
- Auxiliary lamp flashing function: No
- Protection class (IP): IP67
- Light color: Cool white
- Rechargeable: No
- Housing color: Black
- Lamp holder: Integrated LED
- Effective luminous flux according to IEC 62722-2-1: 1400 lm
- App control: No
- Impact resistance: IK07
- Switching brightness: 0 / 1600 lx
Scope of delivery
- Lamp
- Manual
