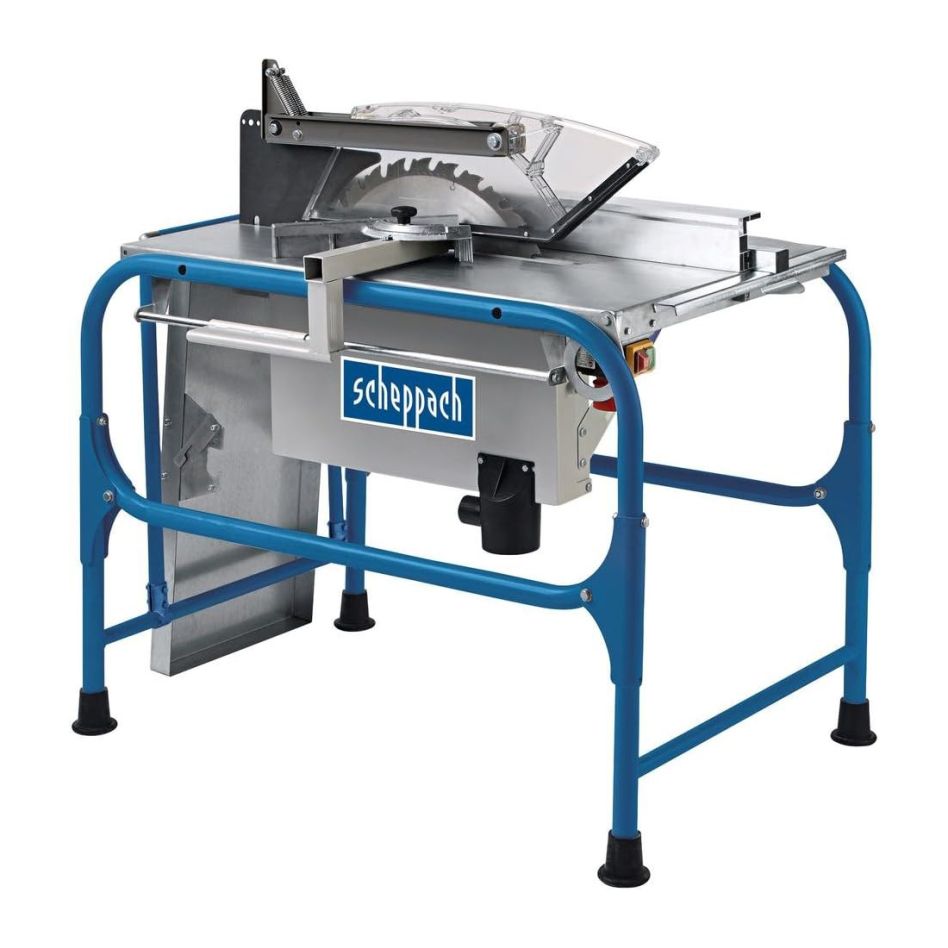

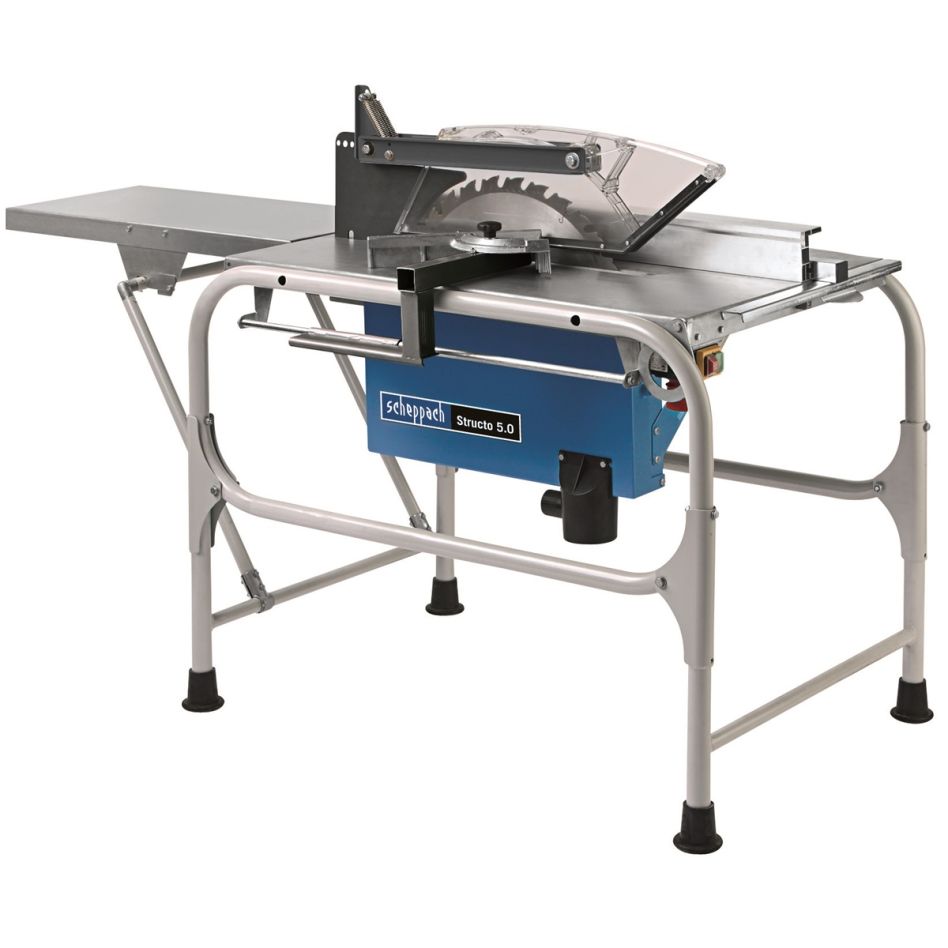

Scheppach 1901308902 Table Circular Saw Structo 5.0 400V

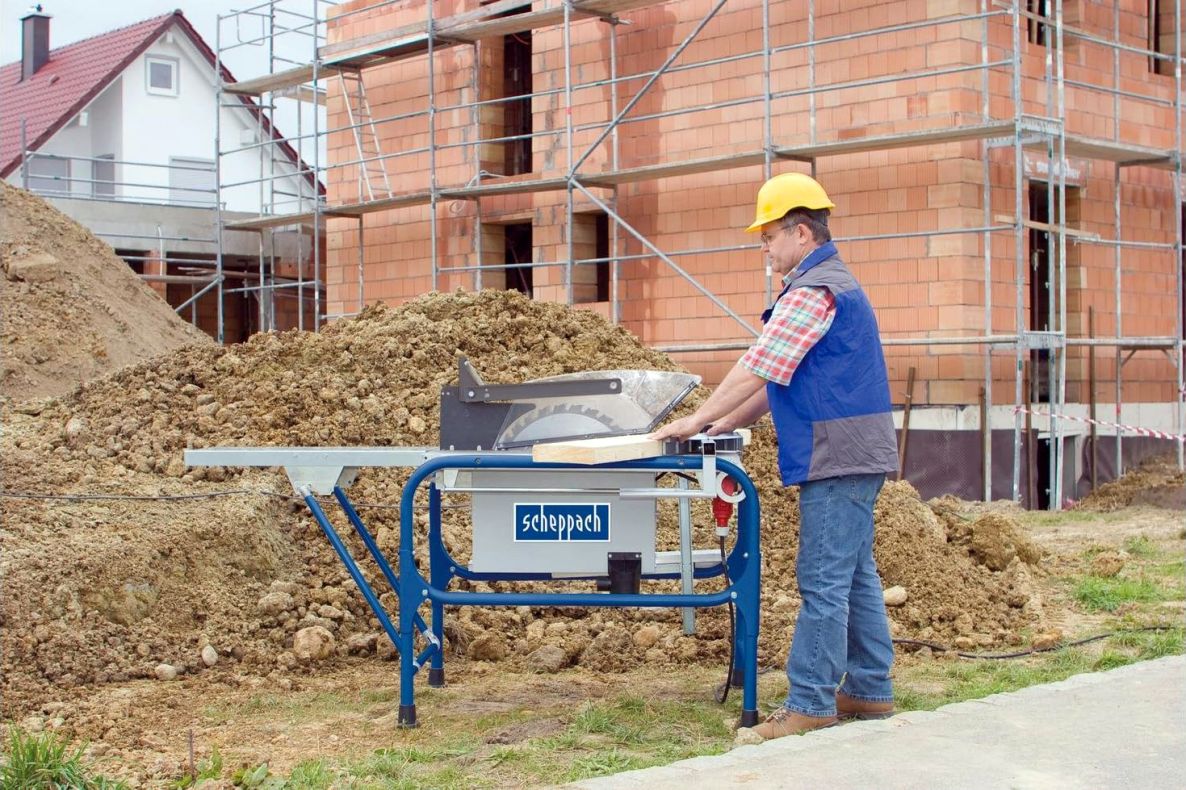

The Scheppach table circular saw Structo 5.0 is specially designed for the construction site and meets the daily demands of extreme use. The safety guard offers the user optimal safety and meets the strictest requirements (approved by the BG). The powerful motor ensures consistent, precise cuts of the very highest quality.
Special features
- The Structo 5.0 is ideally suited for heavy professional work
- The table saw can easily and at a high speed perform heavy tasks
- Table saw dimensions: 1000x660 mm
- Contemporary design with steel tubes and rounded corners
- TCT saw blade for maximum deep cutting

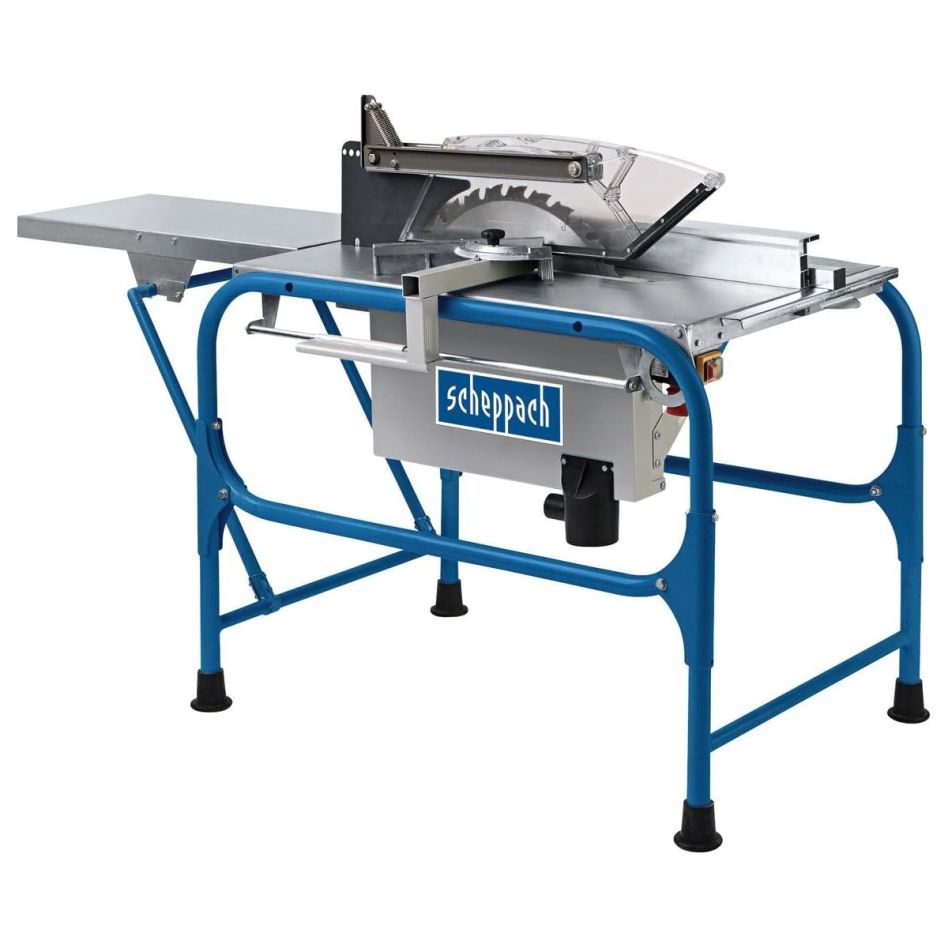

- Includes crosscut saw and folding table extension (400x800 mm)
- Construction made of galvanized, powder-coated steel
- Maximum cutting height: 150 mm
- Cutting width: 350 mm
- Sturdy base
Technical data
- Nom. Input power: 4200 W
- Saw blade diameter: 500 mm
- No-load speed: < 2800 1/min
- Length: 1300 mm
- Voltage: 400 V
- Voltage: 400 V
- Width: 840 mm
- Saw blade bore: 30 mm
- Height: 610 mm
- Power output: 4200 W
- Weight: 127.4 kg
- Cutting depth (90°): 150 mm
- Contact surface width: 660 mm
- Contact surface length: 1000 mm
