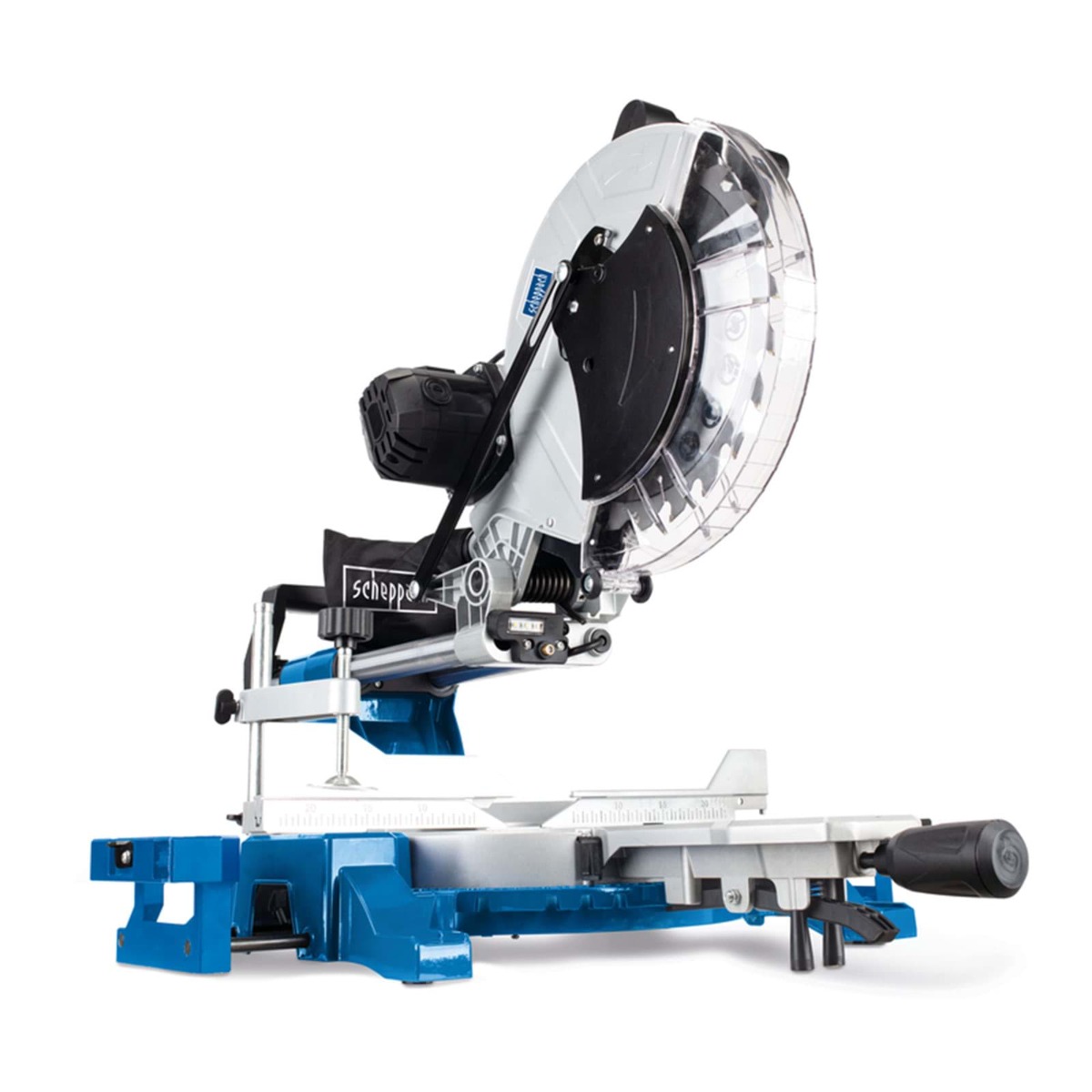

Scheppach HM140L Crosscut and Miter Saw 305 mm 5901218901
Special features
- With the Scheppach HM140L pull-miter saw, even large beams and timber are no problem
- Thanks to the large TC saw blade, cutting heights up to 105 mm and widths up to 330 mm are no problem
- The powerful 2000 W motor ensures constant power and can handle even the hardest wood without difficulty
- Thanks to the saw head swiveling on both sides and the swiveling work table, even demanding work is no problem, and the cutting line laser ensures absolutely precise cuts
- Tilting saw head on both sides for maximum productivity
- Tilts from L45°-R45° on both sides for efficient working
- Precise cuts thanks to double column guide with robust linear ball bearing for consistently accurate cutting results
- Precise and high stop rail on the base frame
- Low weight (21.02 kg) thanks to the sturdy and lightweight aluminum die-cast construction for easy transport and storage
- Built-in laser for precise cutting edge indication
- 305 mm HW saw blade for consistent and accurate sawing results
- High cutting capacity of 330 mm width and 105 mm height
- Fully enclosed saw blade guard for maximum work safety
- Includes 24Z and 48Z HW saw blade
Technical data
- Net weight (kg) 21
- Cutting depth of logging operation 45°/45° 35 mm
- Cutting depth of logging operation 45°/90° 60 mm
- Cutting depth of logging operation 90°/45° 35 mm
- Cutting depth of logging operation 90°/90° 105 mm
- Cutting height for table operation 45° 35 mm
- Cutting height for table operation 90° 105 mm
- Cutting width for felling operation 45°/45° 230 mm
- Cutting width for felling operation 45°/90° 330 mm
- Cutting width for felling operation 90°/45° 330 mm
- Cutting width chopping mode 90°/90° 330 mm
- Frequency 0 - 50 Hz
- Height 490 mm
- Host speed 3800 1/min
- Tilt setting left 45 °
- Tilt setting right 45 °
- Length 890 mm
- Miter setting left 45 °
- Miter setting right 45 °
- Nom. Power input 2000 W
- Saw blade bore 30 mm
- Saw blade diameter 305 mm
- Suitable for metal No
- Suitable for plastic No
- Suitable for stone No
- Suitable for wood Yes
- Voltage 230 V
- Weight 20.8 kg
- Width 615 mm
- Base included No
- With laser Yes
Scope of delivery
- Microcut saw HM140L 230-240V 50Hz 2000W - 305mm
- Includes 24Z and 48Z HW saw blade
