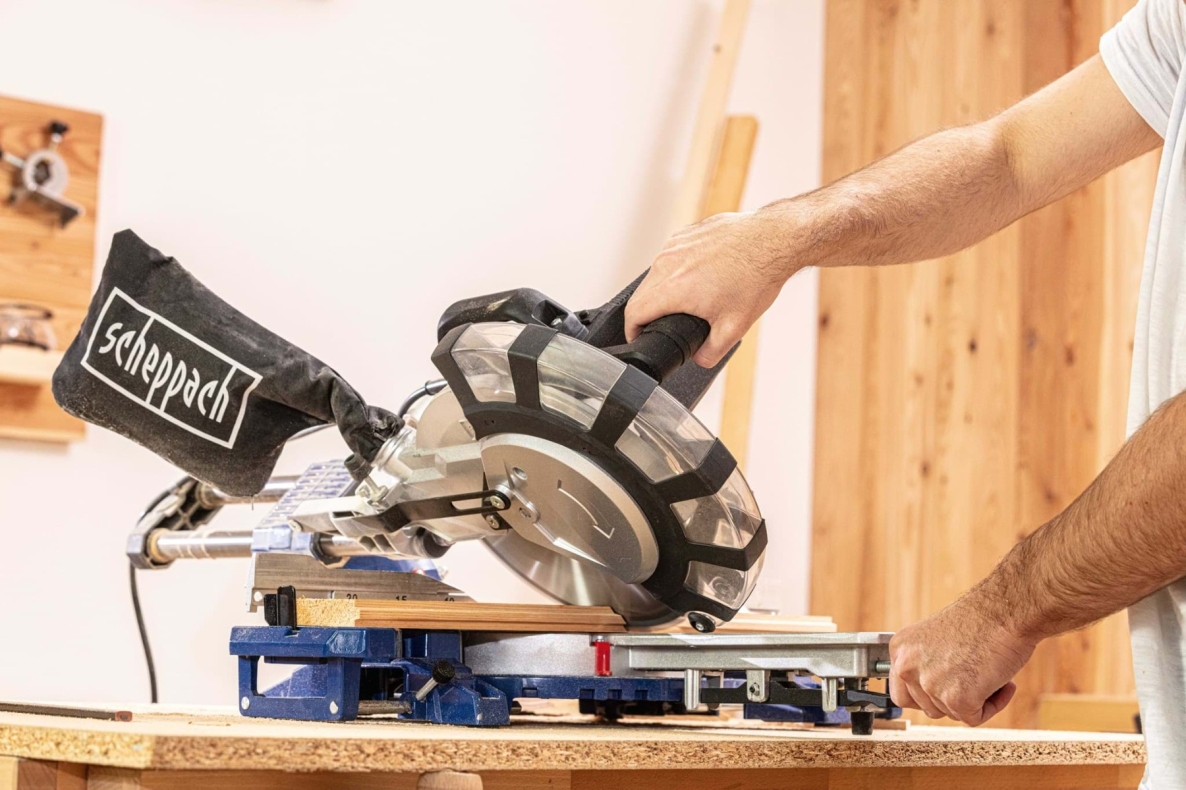

Scheppach HM254SPX Miter and chop saw 5901222901
The Scheppach HM254SPX is a powerful crosscut, pull, and miter saw with a 2200 Watt motor. Thanks to the sturdy double column guide and the 254mm saw blade, the saw is perfect for the demanding DIY enthusiast and ensures versatile and precise crosscuts and miter cuts in hard and soft wood and all common plastics. A turntable, integrated laser, and a 45° tilting saw blade ensure precise adjustment and execution of cuts.
Special Features
- Stable crosscut, miter, and bevel saw with double column guide
- Powerful 2200 Watt motor
- Durable aluminum frame
- HW saw blade with 48 teeth for precise and clean sanding and especially crosscutting in solid wood
- Extra second HW saw blade with 60 teeth

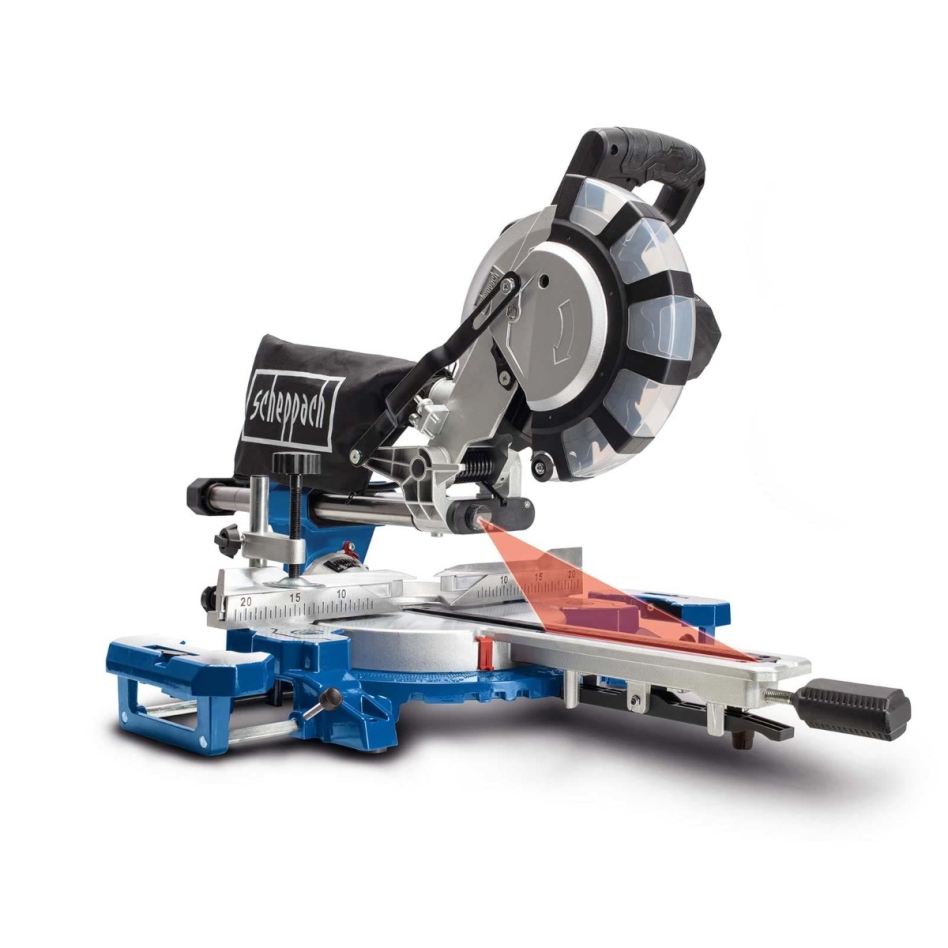

- Built-in laser for accurate cutting edge indication
- Wide cutting width up to 340 mm and 90 mm cutting height at 90°

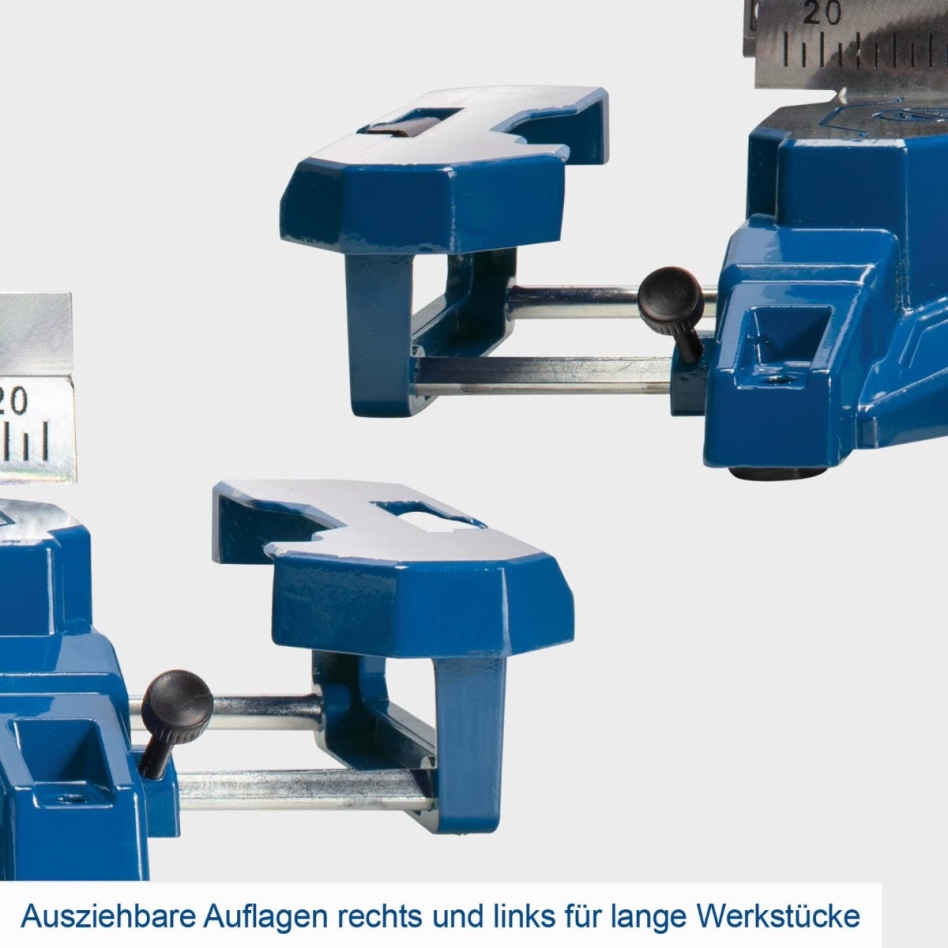

- Adjustable aluminum workpiece supports on both sides for a larger support surface
- Dust bag for maintaining a clean workplace
Technical data
- Net weight (kg)16.4
- Saw blade diameter (mm)254
- Length (mm)770
- Width (mm)705
- Height (mm)560
- Nom. Input power (W) 2200
- Maximum Frequency (Hz) 50
- Minimum Frequency (Hz) 50
- Saw blade bore (mm) 30
- Gun speed (1/min) 4800
- Voltage (V) 230
- Weight (kg) 14.4
- Contact surface width (mm) 340
- Miter setting left (°) 45
- Miter setting right (°) 0
- Sound pressure level (dB(A)) 96.5
- Cutting width 90°/90° (mm) 340
- Sound power level (dB(A)) 109.5
- Cutting depth 90°/90° (mm)90
- Cutting width 45°/45° (mm)240
- Cutting depth 45°/45° (mm)90
Scope of delivery

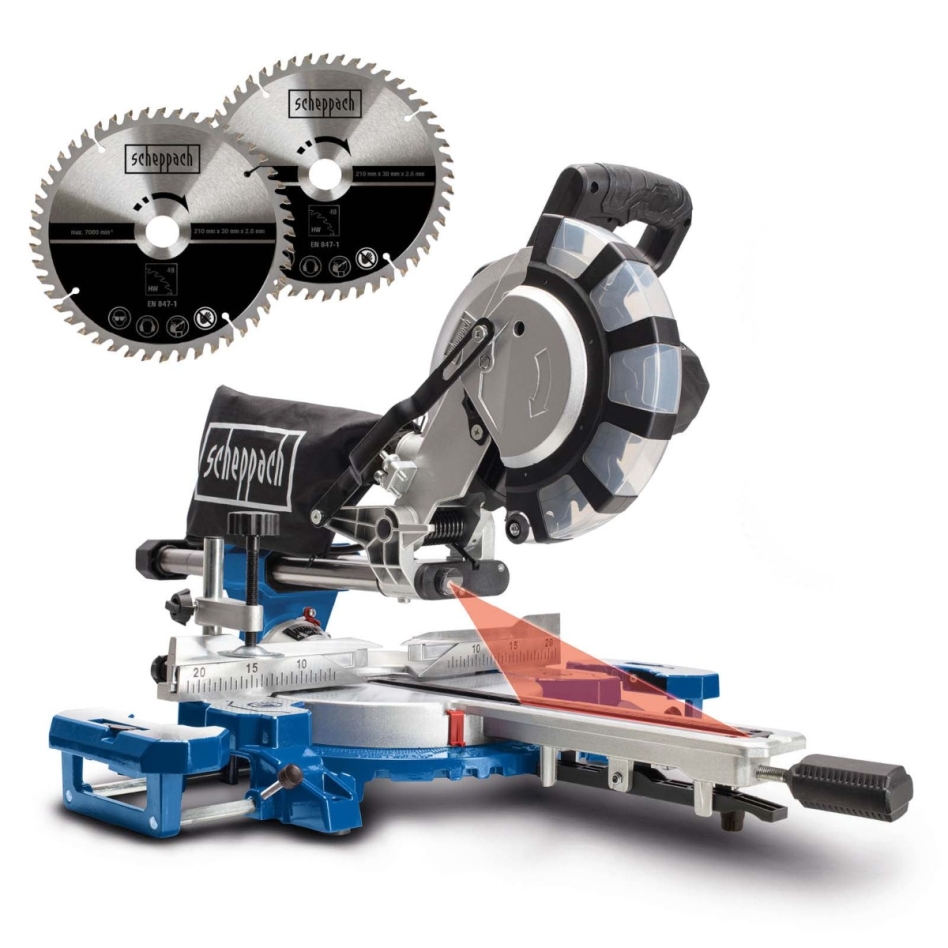

- 2 x saw blade 254 mm
- Material clamp
- Dust bag
