Scheppach HM305SL Miter and Crosscut Saw 5901223901
The Scheppach HM305SL crosscut, crosscut, and miter saw is ideal when space is limited in the workshop. Compact yet versatile and high-quality. Thanks to the innovative fixed-rail guide, the saw requires no space behind the machine. This allows it to be placed directly against a wall.
Special Features
- Powerful 2000 Watt motor with soft-start function
- Saw head tilts 48° on both sides for the most professional results

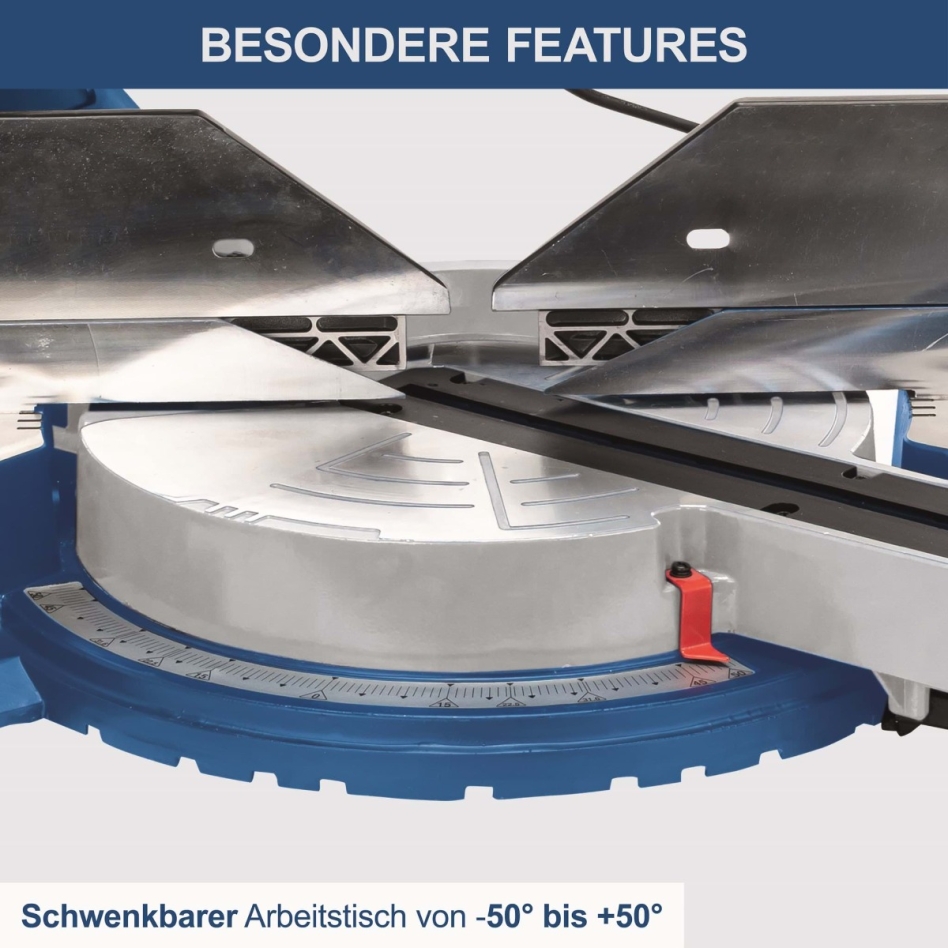

- Swiveling work table from -50° to +50°
- Extension with double column guide takes up no space behind the machine
- Built-in laser for accurate cuts
- 305mm TC saw blade for consistent and precise sawing results
- High sawing capacity of 340mm width and 180mm height thanks to special saw height extension
- Fully enclosed saw blade guard for maximum work safety
- Includes 48Z HW saw blade
Technical Data
- Net weight (kg)20.9
- Saw blade diameter (mm)305
- Length (mm)588
- Width (mm)842
- Height (mm)746
- Nom. Input power (W) 2000
- Maximum Frequency (Hz) 50
- Minimum Frequency (Hz) 50
- Saw blade bore (mm) 30
- Grid speed (1/min) 5000
- Voltage (V) 230
- Weight (kg) 20.9
- Miter setting left (°) 50
- Miter setting right (°) 50
- Cutting width 90°/90° (mm) 340
- Cutting depth 90°/90° (mm) 105
Scope of delivery
- 1 x saw blade 305 mm
- Material clamp
- Dust bag
