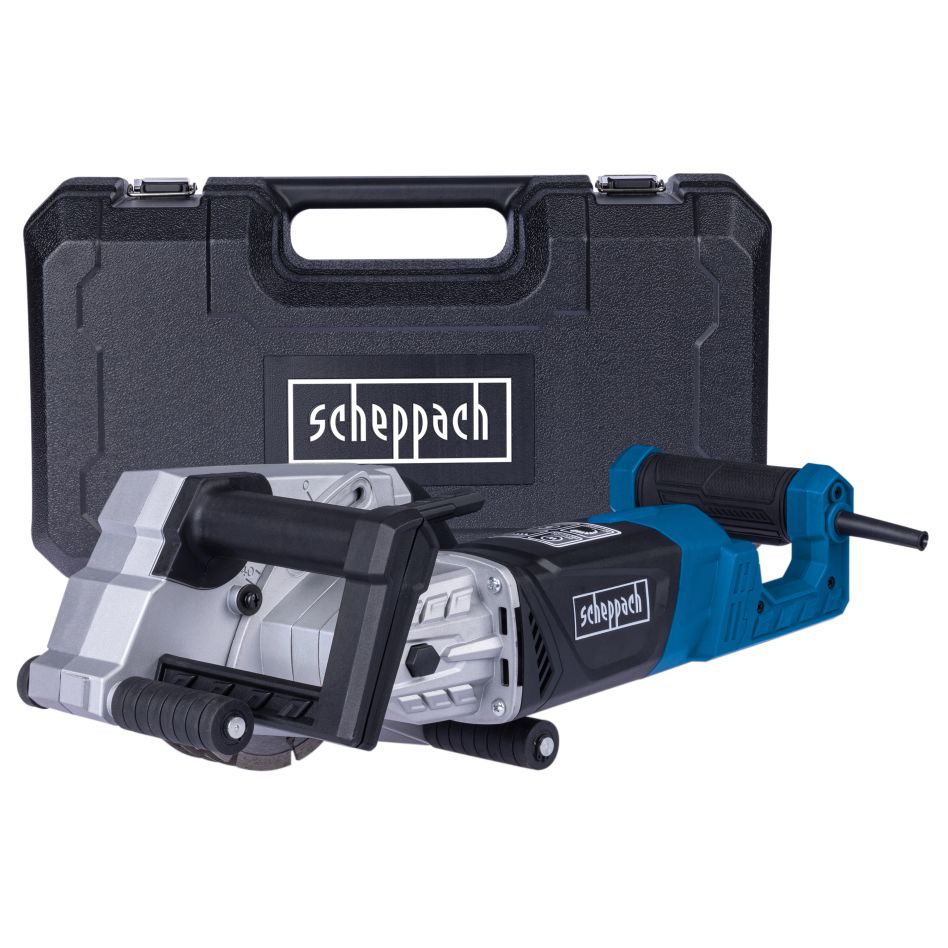

Scheppach 5902602901 Slotting Cutter MNF2250

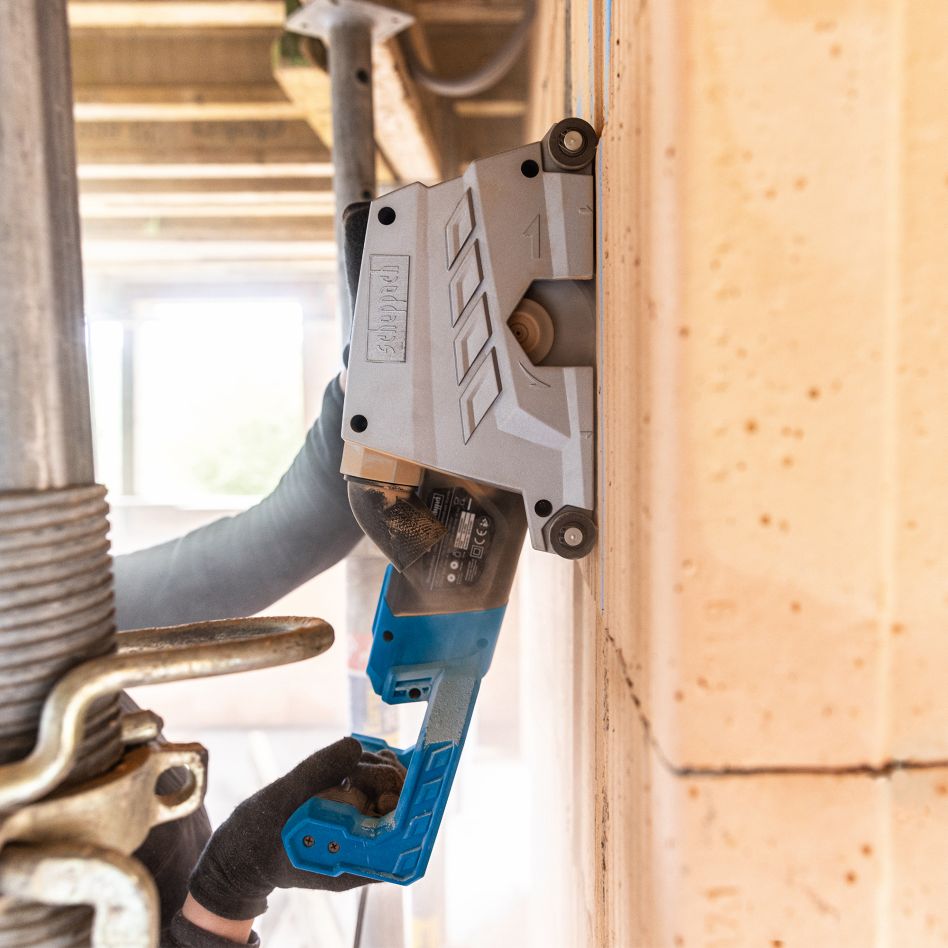

The Scheppach MNF2250 slotting cutter cuts horizontal and vertical grooves or channels. For example, for laying pipes in concrete, masonry, plaster, or gypsum. With a powerful 2250-watt motor and up to four parallel diamond saw blades, this wall cutter ensures precise cuts in masonry. The milling depth can be adjusted up to a maximum of 40 mm. The cutting width is also variable, allowing narrow and wide grooves of 8-40 mm to be created. Furthermore, the soft start and overload protection ensure a long service life of the device.
Special features
- Ideal for cable ducts in concrete, brick, plaster, or gypsum
- Powerful 2250 W motor with 5400 rpm
- Diamond saw blade Ø125 mm

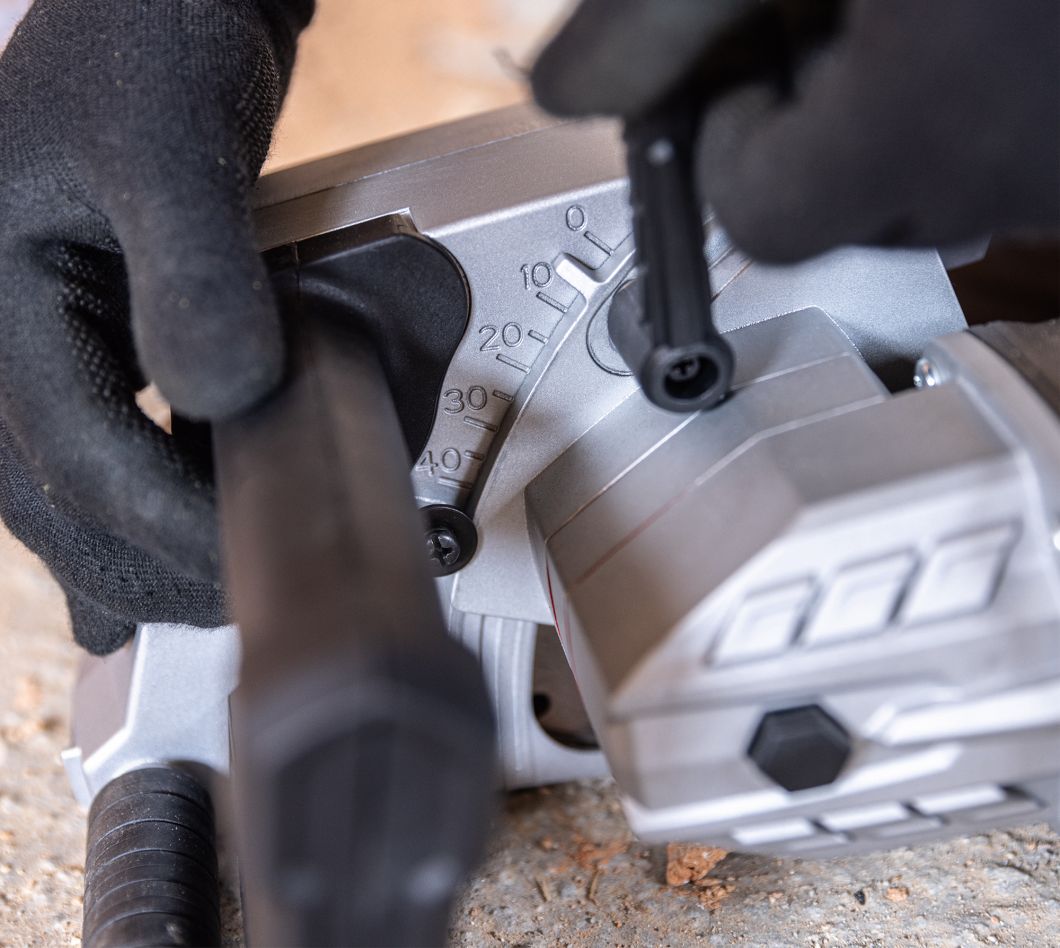

- Stepless milling depth adjustable without tools for maximum flexibility
- 0 to 40 mm milling depth thanks to dual transmission
- Flexible cutting thickness in combination with max. 4 saw blades for narrow and wide slots from 8 – 40 mm

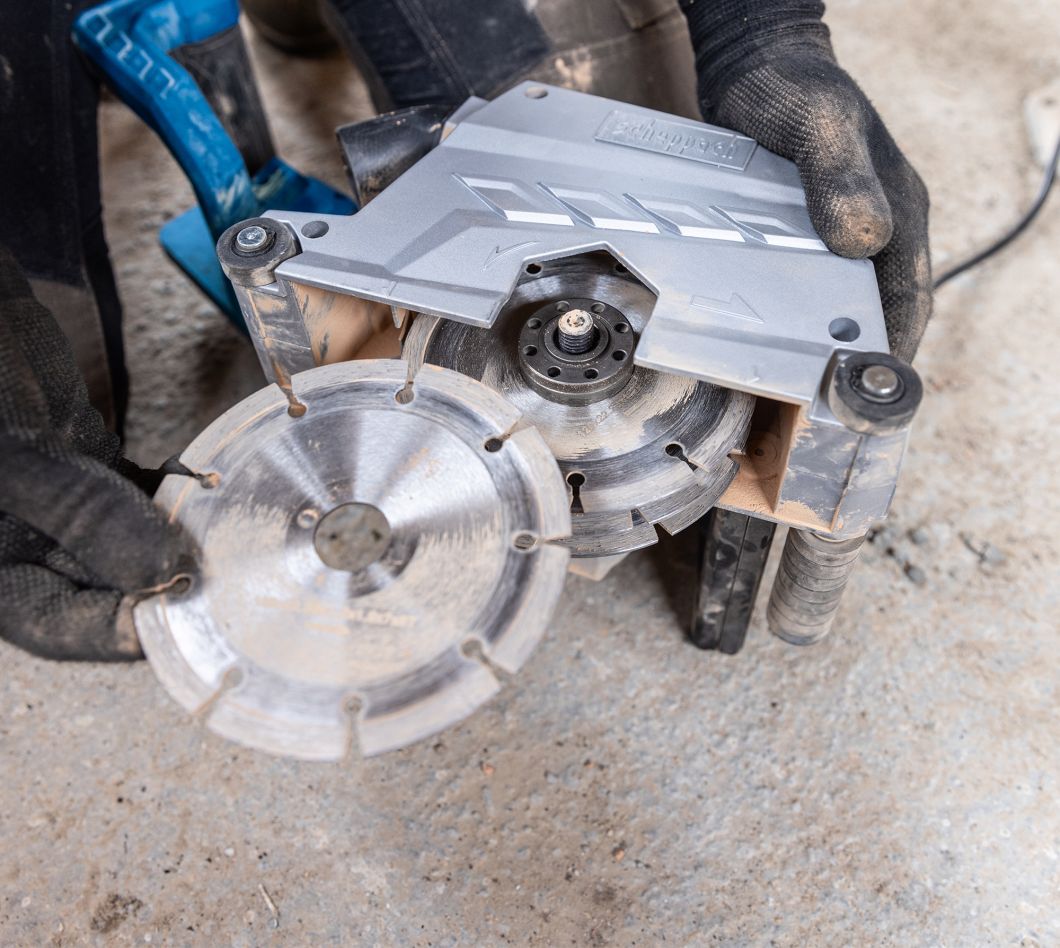

- Easy disc replacement with Spindle Lock
- Motor-friendly soft start and overload protection ensure a long service life
- Constant speed for reliable performance, even under load
- Large reach thanks to 4-meter cable

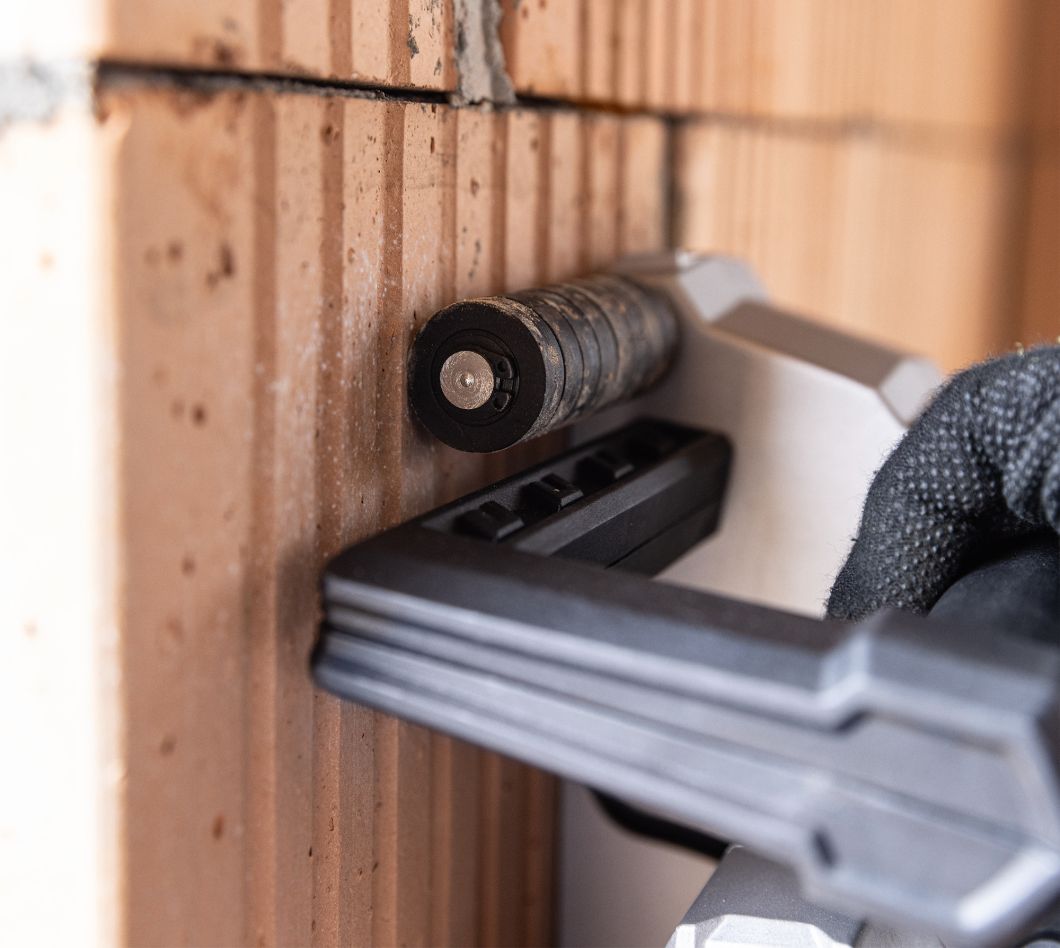

- Extra Guidance by means of rollers on the side of the machine

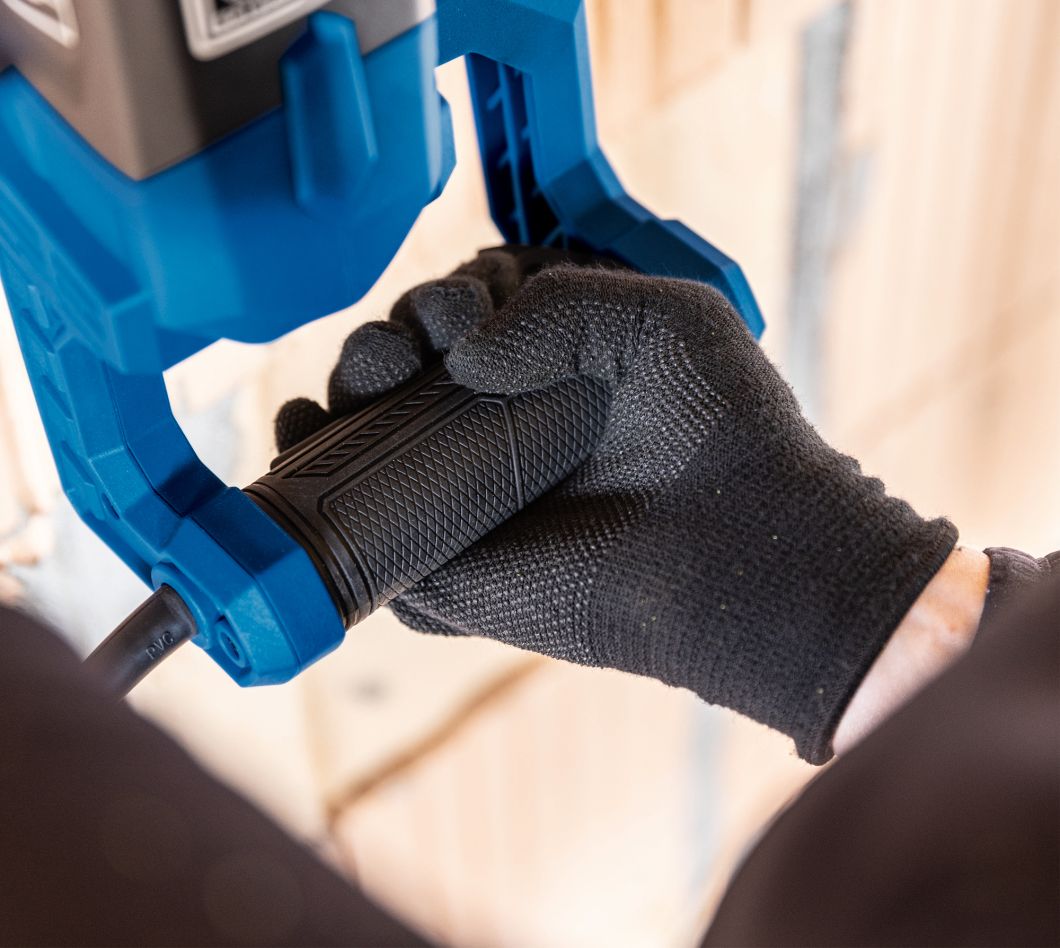

- Ergonomic and compact design with softgrip surface and 2-hand operation
- Connection for external dust extraction
- Includes 4 diamond saw blades Ø 125 mm
Technical data
- Nominal power input: 2250 W
- Groove width: 8 / 40 mm
- Cutting depth: 0 / 40 mm
- Length: 465 mm
- Voltage: 230 V
- Width: 211 mm
- Height: 151 mm
- Disc diameter: 125 mm
- Machine weight: 5.5 kg
