Scheppach SG5200D Diesel Generator 5906222903
With a maximum of 5000 W, the Scheppach SG5200D power generator provides sufficient power for work in and around the house and on the construction site. Thanks to the stable housing, four-wheel drive, and handle, the power generator is versatile. A 16-liter tank ensures several hours of power, and thanks to the 400 V power connection, machines with high power requirements can also be used.
The Scheppach SG5200D diesel power generator reliably supplies you with power on the construction site or elsewhere, allowing you to work independently of the power grid. Whether in a spacious garden, at a campsite, in the woods, or on the construction site – the SG5200D delivers enough power for several hours.

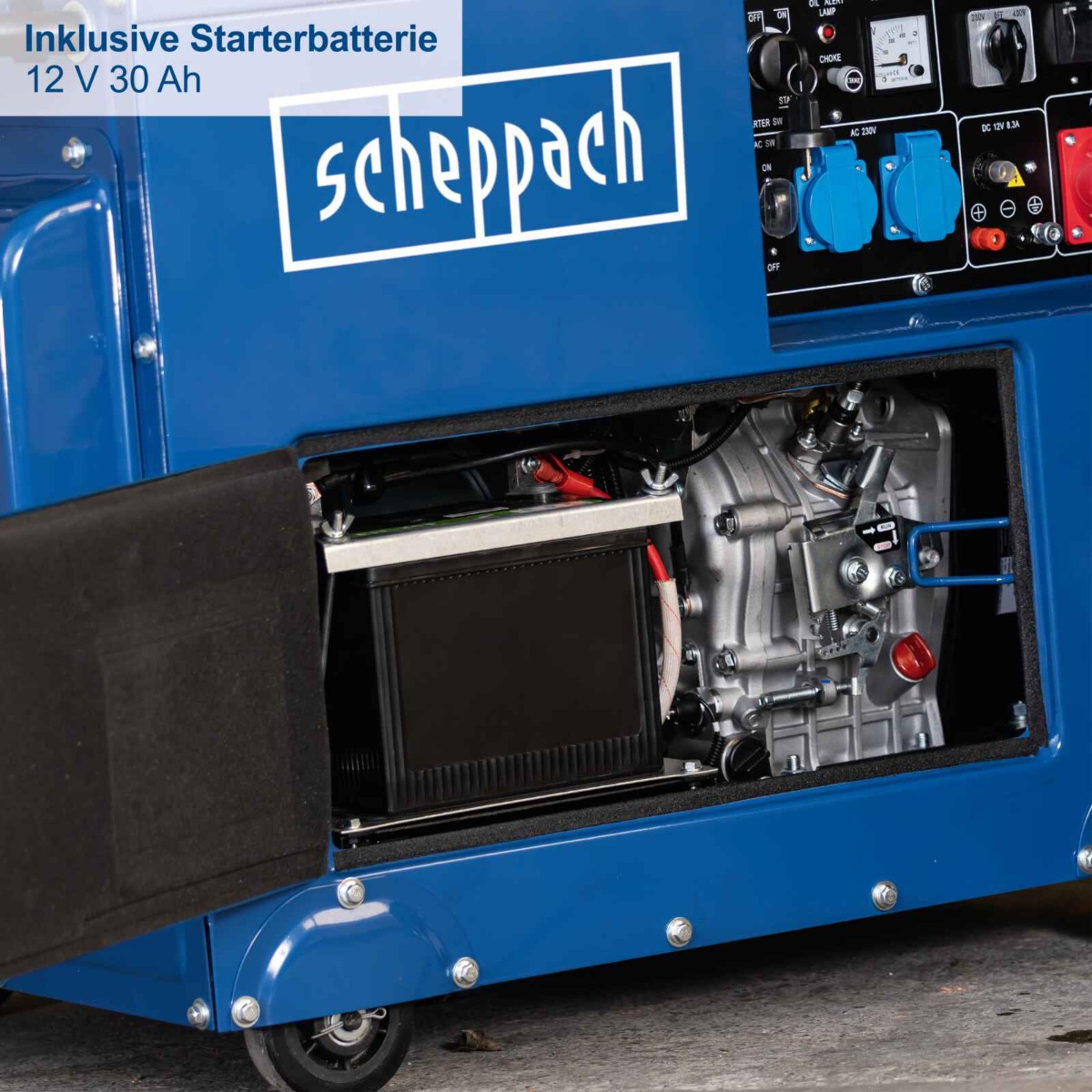

An air-cooled 4-stroke diesel engine with 5.7 kW and a 418 cc displacement provides the power. The SG5200D is supplied with fuel via a 16-liter tank. The engine is started by means of an electric starter; there is no need to pull a cable. Consumption at 2/3 load is around 1.43 l/h, allowing the generator set to be used at full load for several hours without refueling. With the help of the fuel gauge, you can always keep an eye on the current level. The integrated oil shortage protection protects the engine against damage caused by a lack of oil.
The SG5200D generates a maximum output power of 5000 watts. Additionally, the generator is equipped with overload protection, which switches off the socket in the worst-case scenario.
The integrated AVR (Automatic Voltage Regulation) control ensures a stable output line by quickly compensating for voltage fluctuations under varying loads. This benefits the connected consumers if they are sensitive to voltage changes or are among the electrical devices that are difficult to start.
The generator is sturdily built and weighs no less than 148 kg. The housing is closed except for the ventilation slots to protect the generator as well as possible against external influences. The SG5200D has four wheels and a handle for transporting the generator. It is also equipped with a brake so that it can be parked safely.

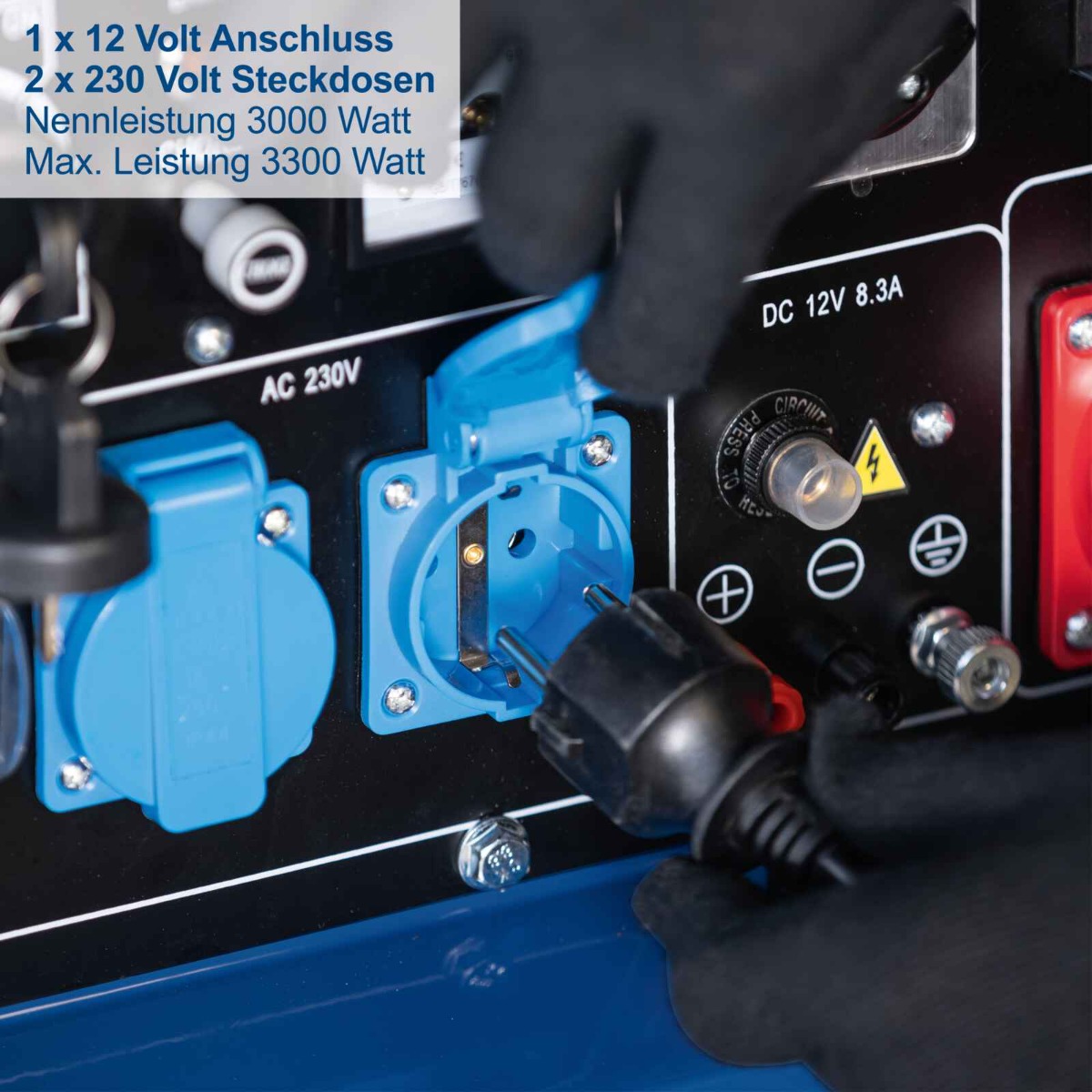

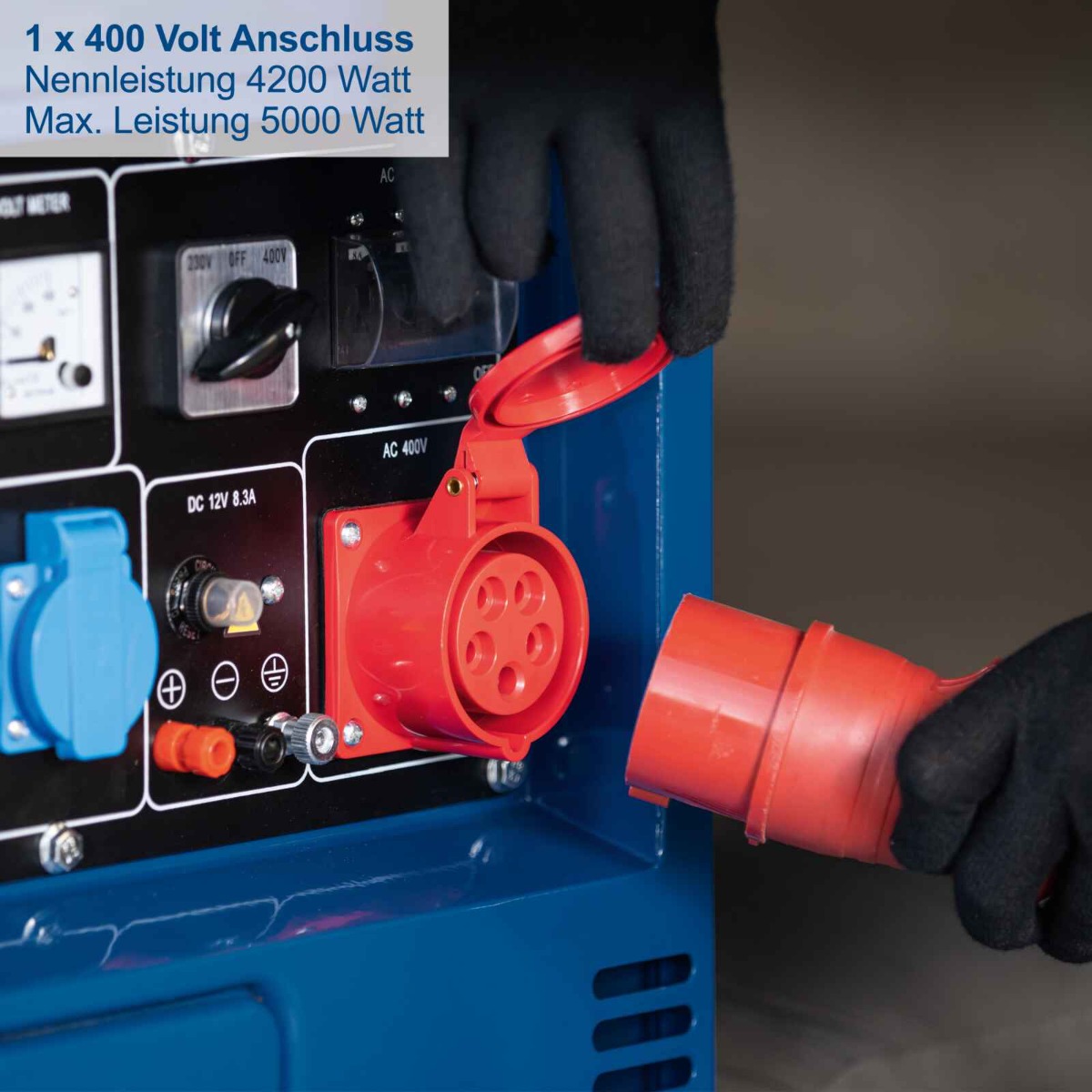

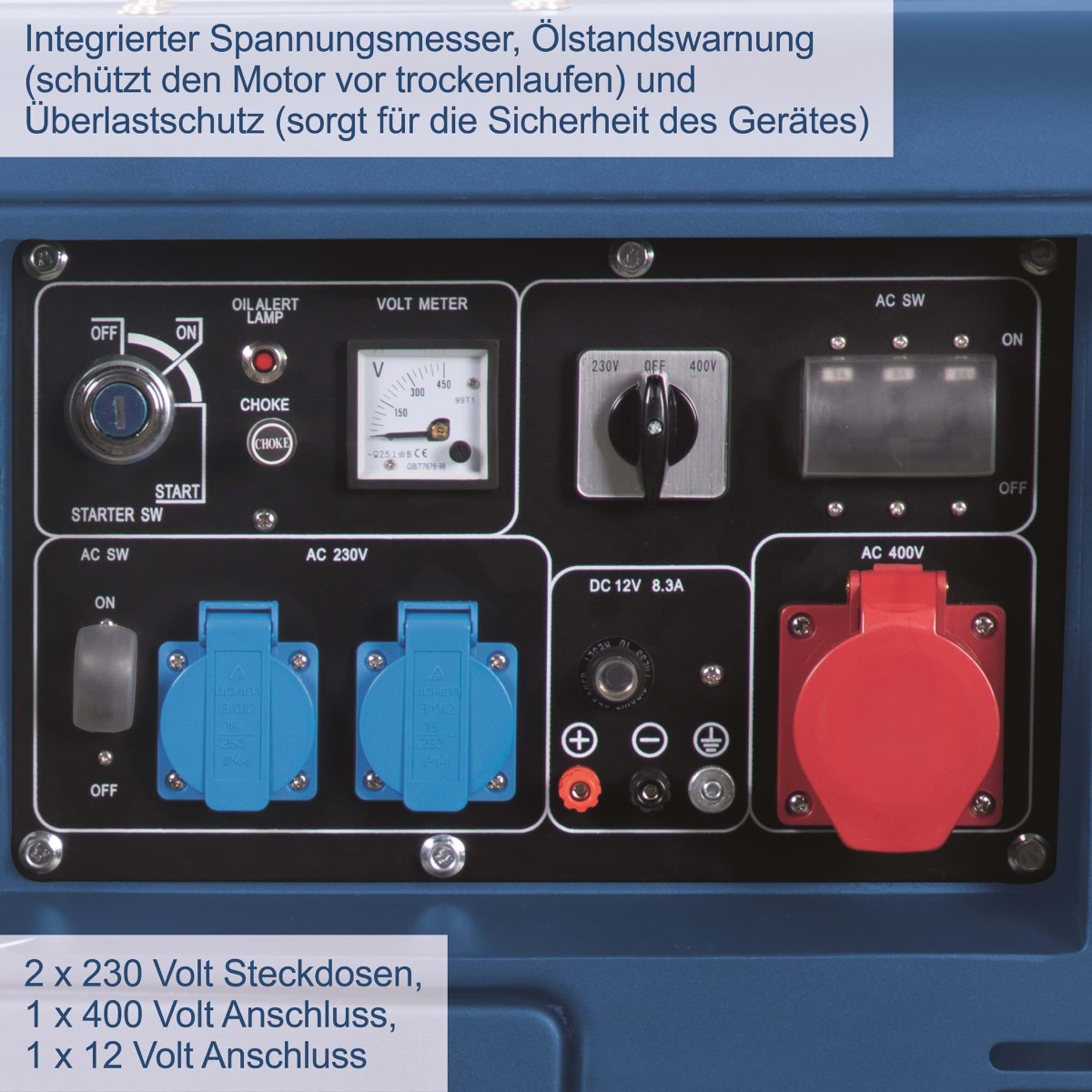

The SG5200D comes standard with a 400 V~ (7.6 A) socket, two 230 V~ (13 A) AC sockets with overload protection, and a 12 V DC (8.3 A) connection.
Special Features
- Diesel generator with electric start
- Maximum 5000W output power
- A 400 V connection, two 230 V connections, and a 12 V DC connection for maximum flexibility
- Stable and robust housing with drive unit and handle
- 16 L tank for hours of generator operation
Technical Data
- Engine type: 4-stroke air-cooled
- Maximum engine power: 5.7 kW
- Engine displacement: 418cc
- Fuel: diesel
- Tank capacity: 16l
- Engine oil type: 15W40
- Consumption at 2/3 load: approx. 1.43 l/h
- Maximum/minimum power at 230V: 4200/3000W
- Maximum/minimum power at 400V: 5000/3300W
- Sockets: 2x 230V (13A), 1x 400V (7.6A), 1x 12V (8.3A)
- Sound power: 96.2 dB(A) (EN ISO 3744)
- Performance class: G1
- Quality class: B
- Weight: 148 kg
