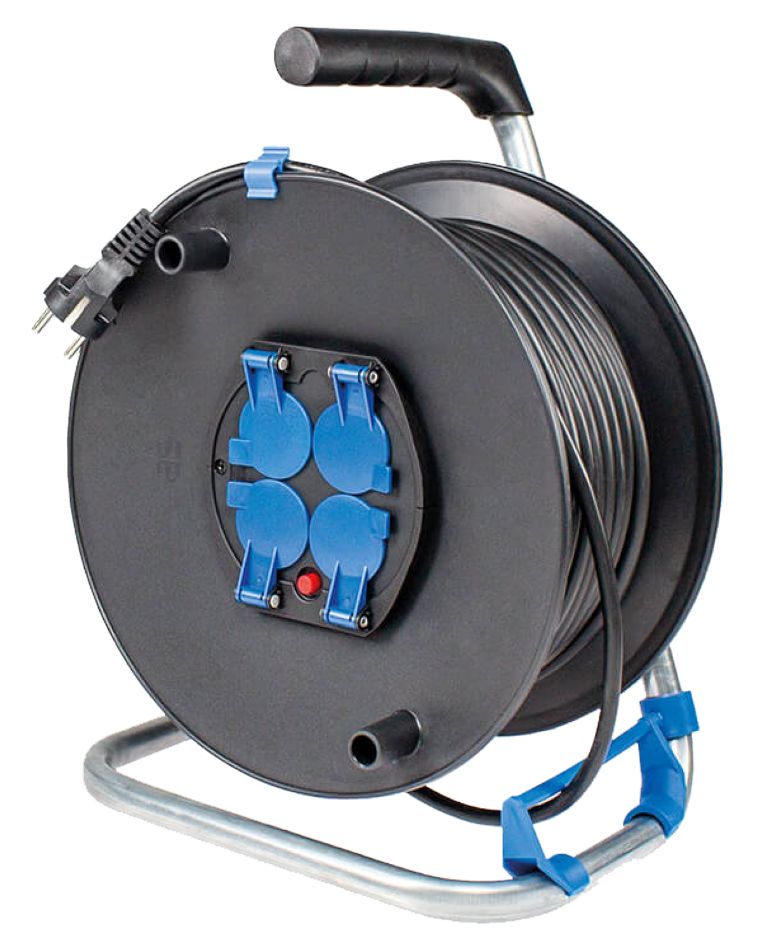

Schwabe 10118 Cable Reel 230V/16A IP20 with protective caps Vinyl H05VV-F 3G1.5 25m
Suitable for indoor use. Reel made of robust impact-resistant plastic. Stable, shock-absorbing and galvanized frame with locking brake. Ergonomically shaped handle and patented cable guide. Built-in thermal protection switch.
Special features
- Cable type: Vinyl 3 x 1.5mm²
- Cable length: 25m with grounded plug
- Sockets: 4 x grounded with protective caps
- Housing: Impact-resistant plastic
- Frame: Stable shock-absorbing frame, galvanized steel
- Maximum load coiled: 230V/16A, 1000W
- Maximum load uncoiled: 230V/16A, 3500W
- Protection: Built-in thermal protection switch
- Tested according to: EN 61242, DIN VDE 0620-2-1, DIN EN 50525-2
- IP20: For indoor use
- Dimensions: L/W/H: 235/195/310 mm, Ø230 mm
Technical data
- Cable type: PVC
- Number of conductors: 3
- Conductor cross-section: Ø 1.5 mm²
- Length: 25 m
- Protection class: IP20
- Color: Black
- Number of CEE poles: 3
- Nominal voltage (V): 230V
- IEC current rating: 16 A
- With cover: Yes
- Number of sockets: 4
- With reel: Yes
